Description:

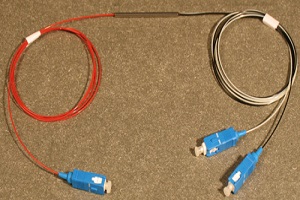

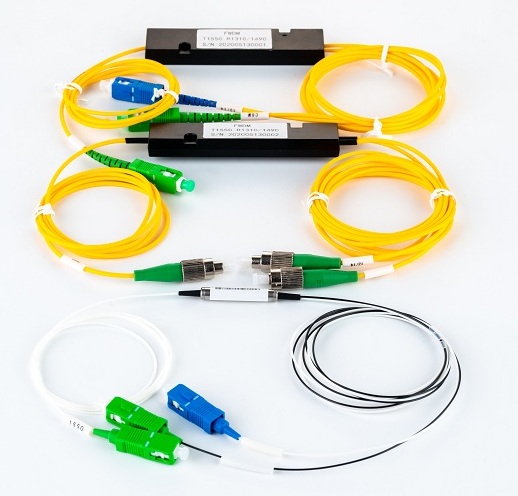

Baudcom Micro-Optical WDM utilizes thin film coating technology and proprietary design of non-flux metal bonding micro optics packaging. It provides low insertion loss, high channel isolation, low temperature sensitivity and epoxy free optical path.

Applications

l FTTx Broadband Network	l HFC CATV System
l Fiber-Optic Links	l Optical Fiber Amplifier System

Features

l Wide Working wavelength Band	l High Reliability and Stability
l Low Insertion Loss	l Polarization Independent

Specifications

Item		Unit	Parameter
			Normal isolation	High isolation
Working Wavelength	Pass band	nm	1550±10 or (1310±50, 1490±10)
	Reflect band	nm	(1310±50, 1490±10) or 1550±10
Max. Insertion Loss	Com«Pass port	dB	0.7	1.0
	Com«Reflect port	dB	0.5	0.8
Min. Isolation	Com«Pass port	dB	35	35
	Com«Reflect port	dB	18	35
Max. Polarization Dependent Loss		dB	0.1	0.2
Min. Directivity		dB	50
Min. Return Loss		dB	50
Max. Power Handling		mw	300
Operating Temperature		°C	-20 ~ +75
Storage Temperature		°C	-40 ~ +85
Fiber Type			Corning SMF-28
Pigtail Length		m	1.0±0.1 (standard)
Connector Type			Please specify
Package Dimension		mm	C: f5.5′33 F: f5.5′36 L: 120′80′18

1. Values in the table above are referenced without connectors.

Ordering Information

Ordering information

Related Products

1x2 WDM Optical Fiber Splitter

1310/1550nm 1x2 WDM Splitter can be used to combine or split 1310nm and 1550nm optical signals.All types connectors are available,SC,FC,ST etc.

Planar Lightwave Circuit Splitter

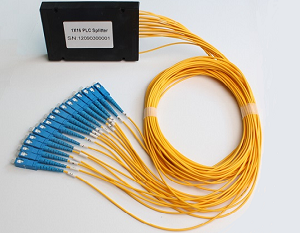

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology.
