8FE GPON ONU
BD-ONT-108 series GPON ONT is one of the GPON optical network unit design to meet the requirement of the broadband access network.

  Request price     Contact us

INFORMATION

Overview

BD-ONT-108 series GPON ONT is one of the GPON optical network unit design to meet the requirement of the broadband access network. It apply in FTTH/FTTO to provide the data, video service based on the GPON network.

GPON is the latest generations of access network technology. ITU-T G.984 is the standard protocol of GPON. The GPON standard differs from other PON standards in that it achieves higher bandwidth and higher efficiency using larger, variable-length packets. GPON offers efficient packaging of user traffic, with frame segmentation allowing higher quality of service (QOS) for delay-sensitive voice and video communications traffic. GPON networks provides the reliability and performance expected for business services and provides an attractive way to deliver residential services. GPON enables Fiber To The Home (FTTH) deployments economically resulting to accelerated growth worldwide.

BD-ONT-108 series have a high reliability and provide quality of service guarantee, easy management, flexible expansion and networking. It’s fully meet the ITU-T technical standards and have good compatibility with third party manufacturers OLT.

Features

n  Support port-based rate limitation and bandwidth control;

n  In compliant with ITU - T G.984 Standard

n  Support data encryption

n  Support group broadcasting

n  Support Dynamic Bandwidth Allocation (DBA)

n  Support ONU auto-discovery/Link detection/remote upgrade of software;

n  Support port mode of VLAN configuration

n  Support power-off alarm function ,easy for link problem detection

n  Support broadcasting storm resistance function

n  Support port isolation between different ports

n  Support port flow control

n  Support ACL and SNMP to configure data packet filter flexibly

n  Specialized design for system breakdown prevention to maintain stable system

n  Support software online upgrading

n  EMS network management based on SNMP ,convenient for maintenance

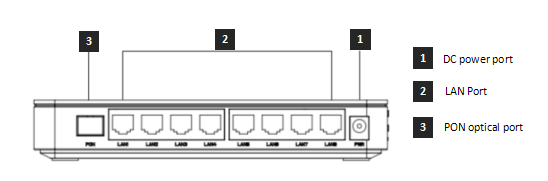

Product interface and LED definitions




Indicator

Description

1

LAN1-8

LAN port status

On: Ethernet connection is normal;

Blinking: Data is being transmitted through the Ethernet port;

Off: Ethernet connection is not set up;

2

LOS

GPON optical signals

On: Optical power lower than receiver sensitivity ;

Off: Optical in normal

3

PON

ONU Register

On: Success to register to OLT;

Blinking: In process of registering to OLT;

Off: In process of registering to OLT;

4

PWR

Power status

On: The ONT is power on;

Off: The ONT is Power off;

Specification

Item

Parameters

Specification

Interface

PON Port

1*GPON port, FSAN G.984.2 standard, Class B+

Downstream Data Rate2.488Gbps

Upstream Data Rate1.244Gbps

SC/UPC single mode fiber

28dB Link loss and  20KM distance with 1:128

Ethernet Port(LAN)

8*FE Auto-negotiation RJ45 ports

Full Duplex / Half-Duplex

 Auto-MDI/MDI-X

Transmission Distance 100 Meter

Power Supply Port

12V DC supply power

Management

Network Management

Standard compliant OMCI interface as defined by ITU-T G.984.4

Support WEB, Telnet local management

Management

Function

Status monitor, Configuration management, Alarm management, Log management. (No management on each Ethernet port)

Environmental
Specifications

Shell

Plastic casing

Power

External 12V 0.5A AC/DC power supply adapter

Power consumption: <5W

Dimensions

170mm(L) x130mm(W) x30mm (H)

0.3kg

Environment

Operating Temperature050

Storage Temperature-4085

Operating Humidity10%90%(Non-condensing)

Storage Humidity10%90%(Non-condensing)



Application

2 SolutionFTTO/FTTB

2  BusinessBroadband InternetIPTVVODIP Camera







Ordering information
