INFORMATION
Overview

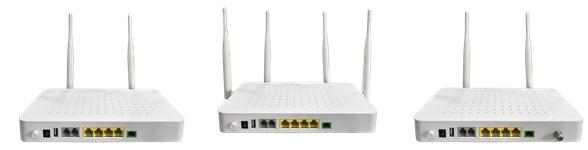

BAUDCOM BD-ONT-424GWI Series is a smart HGU with integrated wireless and
voice function (BD-ONT-424GWI-S built-in CATV module). It is oriented for the integrated
multi-service network in broadcast and TV industry. BAUDCOM BD-ONT-424GWI
Series is complied with the international standard IEEE802.3ah and PRC Communication
Industry Standard (YD/T 1475-2006) and China Telecom EPON Technical Requirement
CTC.
n Excellent Access Capacity
It
supports the PON transmission rate of downlink 1.25Gbps/ uplink 1.25Gbps.
Connected with BDCOM OLT, it can realize 1:64 splitting ratio. The covering
radius of the network can reach to 20km.
n Secure Service Carrying Ability
For
ensuring the secure service carrying ability of ONU, BDCOM has developed
techniques including VLAN, STP, port isolation, ACL, QoS, security filtration
and broadcast storm control.
n High Service Control Capability
It
supports DBA and Rate-Limit. It supports advanced dynamic bandwidth
distribution and accurate bandwidth limit, which enables users to share 1.25Gbps
bandwidth resource appropriately. It also supports QOS function, which
guarantees a reliable service quality and service priority.
n Rich OAM Function
It
supports the standard OAM defined by China Telecom CTC2.1/3.0, including
configuration, alarm, performance monitoring, fault isolation and security
management, and it also supports private OAM defined by BDCOM.
n Complete Interaction Capacity
It
is complied with IEEE802.3ah and relevant requirements for PRC
Community Industry Standard (YD/T 1475-2006) and China Telecom CTC2.1/3.0.
n Advanced Energy-saving Technique
It supports the “GreenTouch” architecture and
“Smart@CHIP”.
Technical Parameters
|
Attribute
|
BD-ONT-424GWI
|
BD-ONT-424GWI-22A
|
BD-ONT-424GWI-S
|
|
User trial interface
|
4*GE
2*FXS
|
|
WiFi (802.11b/g/n,
external dual antenna)
|
WiFi (802.11b/g/n
+ 802.11ac, external 4 antenna)
|
WiFi (802.11b/g/n, external dual
antenna)
|
|
1 USB interface(USB2.0)
|
|
N/A
|
N/A
|
1 RF(British system)
Output voltage:70dbuv
|
|
Uplink interface
|
CATV optical interface
|
Type of the optical interface: SC/APC
AGC range: -15~-5dbm
|
|
PON interface
|
downlink 1.25Gbps / uplink 1.25Gbps
The network covering radius: 20km
Type of the optical interface: SC/UPC
Hi-sensible optical receiver: ≤-27dBm
Radiation power: 0~4dBm
|
|
|
Optical
interface: SC/UPC
|
Optical
interface: SC/UPC
|
Optical
interface: SC/APC
|
|
CATV optical receiver AGC range
|
N/A
|
N/A
|
-15~-5dbm
|
|
Standard
|
EEE802.3ah
PRC
Community Industry Standard (YD/T 1475-2006);
IEEE 802.1D, Spanning Tree
IEEE 802.1Q, VLAN
IEEE 802.1w, RSTP
ITU-T Y.1291
|
|
Data forwarding
|
Routing, bridging, routing+bridging
|
|
DHCP
|
DHCP server
|
|
Multicast
|
IGMP-Snooping
CTC defined dynamic multicast
MLD-Snooping
|
|
Voice
|
SIP, H.248
|
|
WiFi
|
802.11b/g/n
MIMO, max rate up to 300Mbps
Multi SSID
SSID encryption
|
|
QoS
|
Backpressure flow control (half
duplex)
IEEE 802.3x flow control (full
duplex)
Head Of Line (HOL) mechanism
IEEE 802.1p, CoS
four priority queues on each port
WR, SP and FIFO
Rate limit
|
|
Reliability
|
Loop detect
Dying-Gasp
|
|
Security
|
Limitation to the number of MAC
addresses on the port
Port protection
Port storm control
Against DOS attack
Against port scanning
|
|
Management
|
CLI, Web, TR069 and TELNET
Software upgrade through TFTP and
WEB or TR069, OLT
Local syslog or server syslog
|
|
Dimension mm (W×D×H)
|
230 x 140 x 34.9(excluding antenna)
|
|
Heat dissipation
|
Supports long-time use (For
instance, 24 hours);
The device running hot will not
affect its performance or cause it break down.
|
|
Environment requirements
|
Operating environment: 0℃～45℃; 10%～90%
non-condensing
|
|
Power supply
|
DC12V/1.5A (external adaptor power
supply)
|
|
Power consumption
|
＜15W
|
Ordering information
