EPON Protocol Analysis Tester
EPON Protocol Analysis Tester

  Request price     Contact us

INFORMATION

EPON test challenges,why we need EPON protocol analysis tester?

For EPON development and troubleshooting, we cant know what happened in EPON link if we can’t to inspect the PON link. Some issues bothers the Engineer constantly, such as:

1.      How about the ONU register to OLT and why the ONU deregister?

2.      The ONU cant register to OLT, whether the ONU send the error register packet or the OLT dont accept the ONU register.

3.      If packet loss, its OLT? Or ONU?  Which ONU?

4.      The OAM is failure, you dont know whether the OLTs message is incorrect or the ONU dont have response.

5.      ………

So its time to try the WireShoot

EPON tester features:

1.      WireShoot is the complete EPON analysis system that maximizes the effectiveness of engineers that design or dimension EPON product by giving them a tool to rapidly isolate the specific causes of performance or protocol conformance issues.

2.      Provides a detailed insight into the structure of bandwidth management messages, uncovering protocol issues that are the underlying causes of performance issues.

3.      Monitoring the traffic and EPON protocols (MPCP & OAM) between the ONU & OLT, providing in-depth protocol analysis

4.      Providing convenient tools for EPON monitoring, performance analysis, and trouble shooting

5.      Rapidly isolates performance issues to the ONU or the OLT. Engineers can determine whether they should debug an ONU or an OLT——this greatly decreases test time as knowing where to look to solve problems.

6.      Engineers can verify compliance to the 802.3ah & CTC specification and ensure interoperability readiness of ONUs/OLTs.

7.      Conformance with 802.3ah

8.      Conformance with CTC extended

Function

Detail

PON frame analyze

Monitoring the traffic and EPON protocols (MPCP & OAM) between the ONU & OLT, providing in-depth “On-PON”analysis.

Detailed EPON protocol analysis

Provides a detailed insight into the structure of bandwidth management messages, uncovering protocol issues that are the underlying causes of performance issues.

Rapidly isolates performance issues to the ONU or the OLT

Providing convenient tools for EPON monitoring, performance analysis, and trouble shooting,Engineers can determine whether they should debug an ONU or an OLT.

Identifies EPON specific timing issues

Triggers, filters and captures together work to measure compliance of an ONU to the tight timing windows.

EPON protocol conformance test

Analyze the EPON MPCP and OAM protocol

OLT and ONU interoperability testing

Engineers can verify compliance to the802.3ah or CTC specification and ensure “interoperability readiness”ofONUs/OLTs


Application:

EPON testing diagram

Management Screen



Ordering information


Related Products

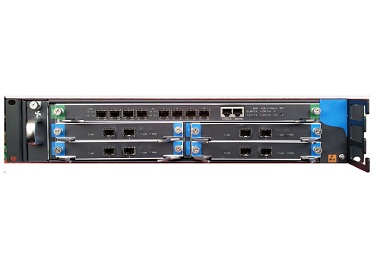

GEPON OLT Access System
