BD900 Series Smart Optical Time Domain Reflectometer OTDR
BD900 series OTDR has excellent dead zone performance and wide dynamic range.It is Combined with the visual fault locator,and it is easily find the breaks, bends, splices, faulty connectors, and other causes of signal loss. 7-inch enhanced capacitive touch screen, smart management.Similiar with EXFO MAX720 series OTDR.

  Request price     Contact us

INFORMATION

Description

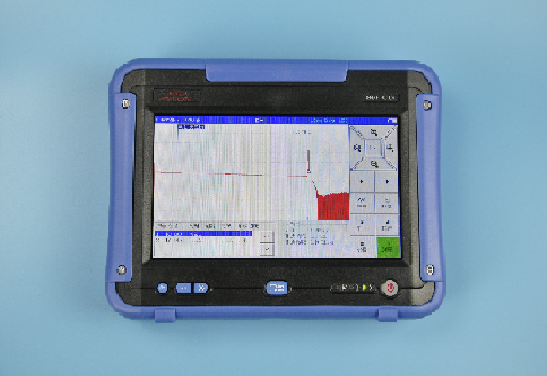

BD900 series of Optical Time Domain Reflectometer has excellent dead zone performance and wide dynamic range. There are four models to choose from and that can betterly meet the customer’s specific measurement requirements. Combined with the visual fault locator, it can easily find the breaks, bends, splices, faulty connectors, and other causes of signal loss.

Learned from the operation mode of tablet computer and smart mobile phone, BD900 series OTDR has simple operation interface and Windows-like GUI, and this ensures a short learn curve for the customer. With a 7-inch enhanced capacitive touch screen, it delivers an unprecedented user experience with no special training required. It is small, lightweight, portable, rugged and durable, and is more suitable for outdoor environment.

Key Features

        • 7-inch capacitive touch screen; Outdoor-enhanced simple and friendly operation interface; Support zoom in and zoom out the test trace through gesture; Support one-touch measurement and analyze the test trace automatically and intelligently.
        • Optimized measurement
        • For network opening: high speed test modeFor network maintenance: accurate test mode
        • Multiple combinations of different dynamic ranges and wavelengths are available
        • Support real-time measurement mode and average measurement mode
        • Support line light alarm function and maximize the protection of the optical device
        • The optical module has self-test function, and can automatically detect its performance and state
        • Support Chinese and English input. Have friendly input interface and mobilephone-like input style
        • Large-capacity lithium battery with over-current protection, over-temperature protection and overvoltage protection; More than 10 hours working time
        • USB interface can easily transfer data between the device and the PC
        • Portable, hand-held and high cost-effective
      • Specification


        • Models

          BD900-A

          BD900-B

          BD900-C

          BD900-D

          OTDR

          Center wavelength(±20nm

          1310/1550

          1310/1550

          1310/1550

          1310/1550

          Dynamic Range③(dB)

          24/22

          28/26

          32/30

          35/33

          Pulse width

          10ns, 20ns, 50ns, 100ns, 300ns, 1.0ms, 2.5ms, 10ms, 20ms

          Event Dead Zone④(m

          2

          Attenuation dead zone(m)⑤

          10

          Distance RangeKm

          0.5~80

          0.5~100

          0.5~150

          Distance Measurement Accuracy⑥

          ±(1m + sample space + measurement distance×0.005%)

          Linearity

          ±0.05dB/ dB

          Memory capacity

          1000

          Fiber Type

          SMF

          Display

          7-inch capacitive touch screen

          Capacitive touch screen

          >10 million times

          Optical connector

          FC/SC/ST (universal connector)

          VFL

          Center wavelength

          650nm±20

          Out power

          <1dBm

          Interface

          FC/UPC

          Other

          Battery

          Lithium battery

          Continuous working time *

          >10 Hours(From Bellcore TR-NWT-001138)

          Dimensions

          210mm×160mm×45mm

          Weight

          0.98Kg

          Note

          ① Unless otherwise specified, all specifications for the 23 ° C ± 2 ° C (73.4 ° F ± 3.6 ° F) temperature range, with FC / PC connectors are valid.

          ② General Configuration. ③SNR = 20us pulse and three minutes of a typical dynamic range of the average. ④With 10ns pulse, single-mode reflection rate of less than -50 dB typical dead zone.

          ⑤ With 50ns pulse, single-mode reflection rate of less than -50 dB typical dead zone⑥Does not include uncertainty due to fiber IOR.

                    •



Ordering information
