Overview

BD-PAE-8 is a PON aggregation extender developed by BAUDCOM. It supports 1+1 dual power backup (AC220V/DC48V mixed application). BD-PAE-8 support for WDM cards, and supports for hot swap. Adopting NMS3000 network management platform, BD-PAE-8 supports in-band network management, and remote management via in-band management channel. NMS3000 has strong management capability and user-friendly interface, rapid configuration and setup for easy network maintenance and management.

Product parameters

Parameters

BD-PAE-8

Device Dimensions (mm)

44 (H) * 445 (W) * 325 (D) mm

Power supply

DC -48 / -60V or

AC 110 ~ 220V or

DC -48/-60V and AC 110~220V (mixed)

Installation Method

Cabinet installation

The maximum number of wavelengths

4

Service slots

2

Single-channel maximum rate

10Gbit / s

Cross particle

ODU1 ODU2

Optical fiber interface

LC / UPC, SC / UPC

Transmission fiber

G.652 G.653 G.655

Protection mode

Device level protection: 1 + 1 power backup
Network level protection: OTU2 SNCP protection on line side

Transmission technology

CWDM (G.694.2)

2.5G /10G line rate

Electrical cross

Fixed rate crossing based on ODU1 / ODU2 port

Network topology

Point to Point



Technical Specifications

Features

Description

Basic function

l  Supports general management on SC card.

l  Supports configuration management, alarm management, performance management, fault management etc. for PAE service card.

l  Supports in-band management.

l  Supports in-band DCN.

l  Supports processing and forwarding synchronization information internally.

l  Supports monitoring and management on FAN and Power supply.

l  Supports 8-channel GPON / EPON aggregation. Supports multiplexing / de-multiplexing between PON signal and ODU2.

l  GPON mode: supports 4 x GPON signal multiplexed into 1 x OTU2, up to 8 x GPON signal generated into 2 x OTU2 per card; The OTU2 interfaces are independent.

l  EPON Mode : supports 8 x EPON signal multiplexed into 1 x OTU2

OTN function

l  Supports PM, SM overhead processing on the line-side interface, support TTI.

l  Supports scrambler and descrambler.

l  GPON: 2.5G<->ODU1<->ODU2<->LINK

l  EPON: 1.25G<->2.5G<->ODU1<->ODU2<->LINK

l  Support FEC G709.

Line protection

l  GPON mode: supports 1+1 protection for 4 x GPON signals.

l  EPON Mode : supports 1+1 protection for 8 x EPON signals.

PON port -processing

Support 3R function for PON port.

GPON<->ODUk mapping

l  Downlink: supports alarm monitor for GPON OLT downstream interfaces on client side; supports ODU1 de-mapping for GPON downstream signals on ONU side.

l  Uplink: supports alarm monitor for GPON ONU upstream interfaces on client side; supports 1.244G <->ODU1 mapping on ONU side.

l  Supports overhead processing for PM layer.

EPON<->ODUk mapping

l  Downlink: supports alarm monitor for EPON OLT downstream interfaces on client side; supports ODU0 de-mapping for EPON downstream signals on ONU side.

l  Uplink: supports alarm monitor for EPON ONU upstream interfaces on client side; supports 1.244G <->ODU0 mapping on ONU side.

l  Supports overhead processing for PM layer.

ODUk GCC function

l  GPON Mode: supports 2 independent GCC0.

l  EPON Mode : supports 2 independent GCC0.

PON proxy

l  GPON mode: supports GPON range proxy, supports GPON leading compensation.

l  EPON mode: supports EPON idle compensation.

PM and alarm monitoring

l  Supports alarm monitoring and alarm management, such as alarm suppression, alarm reversal, alarm shielding, and so on.

l  Supports PM and PM monitoring, such as zero suppression performance, current performance, and historical performance and so on.

Service card hot swap

l  Support

Optical transceiver management

l  Supports DDM.

l  Supports hot swap.


Application:

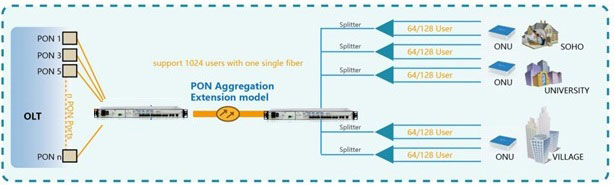

Pon extender application
