INFORMATION

Overview

BAUDCOM BD-OLT-3600 Series complies with ITU-T G.984/G.988 and meets requirements about GPON OLT in Network Access Technical Requirements. It fully supports CTC2.0, automatic discovery and cooperation with ONUs of different manufacturers.

BAUDCOM BD-OLT-3600 Series supports the symmetric uplink 1.25Gbps/downlink 2.5Gbps PON transmission rate, efficient bandwidth usage and Ethernet services, helping carriers to provide reliable services to their users.

Its coupling ratio ups to 1:128, and its support of different hybrid ONU networks minimize the carrier’s investment.

BAUDCOM BD-OLT-3600 Series, based on the edge-cutting technologies, is strong in functions. A few of its functions such as QoS guarantee, SLA and DBA can be easily listed out.

Specification

BAUDCOM BD-OLT-3600 Series has following advantages:

 GPON: Abiding by ITU-T G.984/G.988, BAUDCOM BD-OLT-3600 Series meets relevant requirements of GPON OLT regulated in Network Access Technical Requirements and China Telecom GPON Technical Requirements CTC2.0;

Well Interaction: automatic discovery and compatible with ONT;
Hardware Redundancy: dual main control, dual power redundancy;
Hot Swap: BD-OLT-3600 Series adopts the modularized designed. Each service card hot swap;
System Capacity: BD-OLT-3600 Series supports 128 PON ports and at most 16K ONT;
Environmental Protection: low power consumption and low operating cost.
Bus Optical Fiber Protection: the link can be automatically switched when trouble occurs in the optical fiber;
Power Characteristics: supports dual-AC, dual-DC and AC/DC power supply. The power supply supports modularized design, hot-swap and EMC-3 standard. It well adapts to the environment.

Attributes	BD-OLT-3600-06		BD-OLT-3600-10
PON interface characteristics	Downlink 2.5Gbps/uplink 1.25Gpbs transmission rate Class B+, Class C+ GPON module Maximum coupling ratio: 1:128 ONU authentication mechanism
Slots	2 slots for the main control board and 4 service slots		2 slots for the main control board and 8 service slots
Backplane bandwidth	4Tbps		4Tbps
Switching capacity	960Gbps		1920Gbps
Max 10GE port number	48		96
Max GPON interface number	64		128
MAC address capacity	128K
Standards	ITU-T G.984/G.988 IEEE 802.1D, Spanning Tree IEEE 802.1Q, VLAN IEEE 802.1w, RSTP IEEE 802.3ad physical link static/dynamic aggregation (LACP) Ethernet – II
QoS	Backpressure flow control (half duplex) IEEE 802.3x flow control (full duplex) IEEE 802.1p, CoS WRR, SP and FIFO queue schedule Limiting the uplink/downlink rate based on each ONU DBA and SLA
VLAN	Port-based VLAN, 4K VLAN table QinQ and flexible QinQ
Multicast	L2 Multicast IGMP Snooping MLD Snooping
Reliability	Unidirectional Link Detection (UDLD) Hot swap of the GPON optical module on the expanded slot Optical path protection of GPON Abnormal luminescence ONU detection such as long luminescence
Network security	Limiting the maximum number of users on each port Port isolation Packet storm control Flow-based ACL access control function Transmission data encryption on the PON interface
Configuration management	Various management modes such as CLI, SNMP and TELNET Conducting software upgrade through TFTP Debug output
Physical Characteristics	399.7mm×482.6mm×548mm	533.1mm×482.6mm×548mm
	Installation: standard 19 inch rack-mounted
Environment	Operating environment: 0℃～45℃; 10%～85% non-condensing
	Storage environment: -40℃～80℃; 5%～95% non-condensing
Power Supply	Input voltage: AC90～264V, DC 36～72V Dual-power input, DC/AC power supply and hot-swap

Model	Description
BD-OLT-3600-06	BD-OLT-3600-06 OLT chassis (standard fan board, 2 power supplies at most, 6 expansion slots, 2 slots are for main control board, 4 service slots)
BD-OLT-3600-10	BD-OLT-3600-10 OLT chassis (standard fan board, 2 power supplies at most, 10 expansion slots, 2 slots for the main control board, 8 service slots)
LP66-MSU	BD-OLT-3600 Series OLT Main Control Board
LP66-16GPON-4TE	OLT GPON interface board with 16 ports (16 GPON SFP ports and 4 10GE SFP+ ports, no optical module)
LP66-12TE-SFP+	OLT GPON 10GE interface board with 12 ports (12 10GE SFP+ ports, no optical module)
PWR-1200-AC	BD-OLT-3600 OLT AC power supply (AC 90~264V input voltage , 1200W max power)
PWR-1200-DC	BD-OLT-3600 OLT DC power supply (DC 36～72V input voltage, 1200W max power)
OLT-GSFP-B+	OLT SFP module, Class B+ standard, downlink 2.5G/uplink 1.25G, TX wavelength 1490nm, RX wavelength 1310nm, SC interface
OLT-GSFP-C+	OLT SFP module, Class C+ standard, downlink 2.5G/uplink 1.25G, TX wavelength 1490nm, RX wavelength 1310nm, SC interface

Ordering information

Related Products

8PON GPON EPON Aggregation Extender

It supports 1+1 dual power backup (AC220V/DC48V mixed application). BD-PAE-8 support for WDM cards, and supports for hot swap.

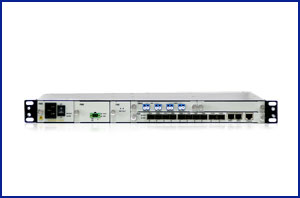

10GE uplink carrier-class GPON OLT 16PON
