E1 G.703 to RS485 converter
PRODUCT CHARACTERISTIC
● RS485 rate support 0~115200Kbps self-adapt;
● Support RS232 interface (TXD,RXD,GND)
● RS485 support hot-plug, connection to DTE or TCE device;
● offer 2 kinds of loop-return function, namely E1 self-looping at local end (ANA) and RS485 self-looping at local end (REM)
● AC220V and DC-48V for option, and DC-48V is not divided into positive and negative pole with simple installation and maintenance;
● has the function of pseudo-random code testing(PATT), which brings great convenience for installation, debugging and maintenance of equipment;
● E1 interface supports 75ohm, unbalanced and 120ohm balanced impedance at the same time;
E1 Interface
Line Rate: 2.048Mbps
Line Code : HDB
Interface Standard: ITU-T G.703
E1 Impedance: 75ohm(unbalance) and 120ohm(balance)
Connections : dual coax BNC and 120-ohm twisted-pair (RJ45)
Jitter tolerance : finer than G.742 and G.823
Clock: internal clock, line clock
RS485 interface
Rate:asynchronous mode 0 to 115200 bps auto-adapt.
Connector: RJ45
Power supply
working voltage range wide, good
anti-disturb and Isolation, work stable
DC-48V,range DC-36V~DC-72C
AC220V,range AC165V~AC240V
Power Consumption: <=3 Watts
environment condition
Operating temperature: 0C~+50 C
Storage temperature: -20 C~+70 C
Relative temperature:95% (uncondensed)
Dimension
210mm(L)
140mm(W)
30mm(H)

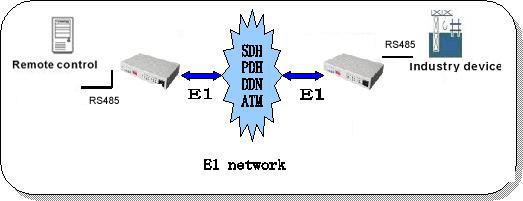

APPLICATION:
