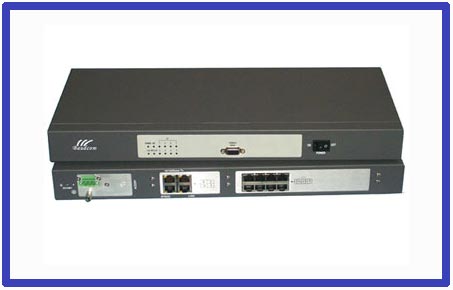

Application:
2 Connect serial devices to server based applications over an IP network
2 Manage remote serial console ports over an IP network
2 Virtual modem capability for modem-based applications
Ethernet Interface
10/100Mbps rate
full/duplex auto-negotiation
Protocol: Support IEEE 802.3
RJ45 connector
Magnetic Isolation Protection: 1.5 KV built-in
Serial interface
Software and hardware flow control
Terminal Block (3 pins per port)
TX and RX activity indicators
Serial Communication Parameters
l Data Bits: 5, 6, 7, 8
l Stop Bits: 1, 2
l Parity: None, Even, Odd, Space, Mark
l Baudrate: 110 bps to 460.8 Kbps
Serial Signals
RS-232: TxD, RxD,GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND
Software
l Network Protocols: ICMP, IP, TCP, UDP, HTTP, ARP,
l Configuration Options: Built-in WEB server,
l Windows Virtual COM Drivers: Windows 2000/XP/2003/Vista/2008/7
Dimensions:
183 x 88 x 30mm
Environmental Limits
l Operating Temperature: 0 to 50°C
l Storage Temperature: -40 to 85°C
l Ambient Relative Humidity: 5 to 95% (non-condensing)
Power Requirements
l Input Voltage:
5 VDC, -48VDC, 110VAC and 220VAC(See Ordering Information)
l Power Consumption: <5 watts
Application
Management Screen:
