INFORMATION
Product
Description

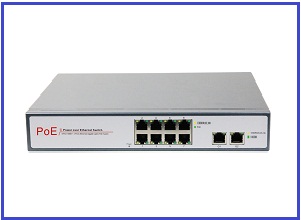

BD-POE34008PF PoE switch provides the transmission
between power and data from a network node through Cat5 Ethernet cable. This
9-Port PoE switch comes with 4 super high power PoE ports and 4 standard PoE
ports, and Port1 and Port4 support super high power special for high-speed dome
cameras, Port5 to Port8 supports IEEE802.3af/at standard. The advanced self-adaptive algorithm can
supply power to IEEE802.3af/at terminal devices; there is no need to worry about the damage to the
standard PoE or non-standard PoE devices. This cost-effective BD-POE34008PF provide network layout for high-speed
dome cameras (PTZ) in order to install in commercial network and home network.
It will stop power supply if the PoE devices unconnected. The devices far away
from power socket are very suitable for hanging on the wall or ceiling. PoE
devices eliminate the need for connecting these devices to power socket, which
make more flexible for those devices difficult to connect with power socket,
and cut down the installation cost. Simple but reliable design, it cans
automatic identification the requirement from PoE devices.
Features
◆Supply power to high-speed network dome
cameras through Cat5 Ethernet cable
◆8x 10/100 Mbps self-adaption RJ45 ports, 1x Uplink Optical
Port
◆Auto-flip ports (Auto MDI/MDIX)
◆The upstream port has lightning-proof
function (Port 5 meets the secondary lightning protection)
◆Port1 and Port4 supports super high power PoE, each port power can be up to 60W;
Port5 to Port8 support IEEE 802.3af/at standard, each port power can be up to 15.4W/30W; The total power is 250W(built-in power supply)
◆Store-and-forward architecture
◆All ports support wire-speed switching,
frame size within the range of 64 to 1536 can achieve wire-speed
◆Built-in power supply, 1U rack design
◆No fans, natural heat dissipation; small
and exquisite, suitable for desktop or wall
Technical Specification
|
Product Name
|
100M 9-Port PoE Switch with 4 PoE Ports for Dome
Cameras
|
|
Model
|
BD-POE34008PF
|
|
Connector
|
9-Port 10/100M PoE switch, Port1
and Port4 supports super high power PoE, each port power can be up to 60W;
Port5 to Port8 support IEEE 802.3af/at standard, each port power can be up to
15.4W/30W; The total power is 250W(built-in power supply)
|
|
Optical Transmission Distance
|
100M
|
|
Forwarding Mode
|
Store-and-forward
architecture
|
|
Network Medium
|
10BASE-T:
Cat3, 4, 5 UTP(≤100 meter)
100BASE-TX:
Cat5 or more UTP(≤100 meter)
|
|
Performance Specifications
|
Bandwidth:
1.6Gbps (non-blocking)
Network
Latency (100
to 100M bps): Maximum
delay less than 20μs
Packet Buffer
Memory: 768KB
Address Database
Size: 1K
MTBF: 190,000
hours (about 21 years)
|
|
Network Protocols and Standards
|
IEEE
802.3i 10BASET
IEEE 802.3u 100BASETX
IEEE 802.3x Flow Control
IEEE 802.1af DTE Power via MDI
IEEE 802.3af /IEEE 802.3at
|
|
LED Indicator
Status
|
System: Power
Single port:
connecting status, PoE working status
|
|
Power
|
Total power: 250W
Single port
power: port1
and port4 can be up to
60W,
port5 to port8 can be up to 15.4W/30W
48VDC,4.5A power output(can be customized for different countries)
|
|
Dimension/ Weight
|
Dimension: 280X186X44mm
Weight: 1.58kg
|
|
Working Environment
|
Operating
Temperature: -20°～ 75°C
Storage Temperature:
-20°～ 75°C
Working Humidity:
10%～90%,
non-condensing
Storage Humidity:
10%～95%,
non-condensing
Working Altitude: 3000 meters(10,000ft)
Storage Altitude: 3000 meters(10,000ft)
|
|
Radiation
|
CE mark,
commercial
FCC Part 15 Class B
VCCI Class B
EN 55022 (CISPR 22), Class B
|
|
Safety
|
CE Mark
,commercial
CE/LVD EN60950, RoHS
|
|
Warranty
|
1 year
warranty (2 years warranty for power adapter)
|
Product Usage Display
