INFORMATION
Product Description
u High-performance
of both hardware and software
This 10G PoE switch
uses top-rated 10G network switching chip, multiple layers PCB design, as well as self-developed switch software
system. With combination of hardware and software, it improves product quality
from forwarding stability, packet processing speed, and other work capability.
u Support
the fast ring network protocol, free configuration
The switch supports
stable and reliable fast Ring Protection Protocol(RSTP). It Achieved real ring
loop redundancy protection. Besides, there is no need to configure 10G port
when users using this switch, to reduce probability of network failure.
u Strong
network security
Support dynamic or
static binding by users’ definition, such as IP, MAC, VLAN, PORT, etc. Support
port isolation, to prevent communication between two neighbor network equipment
within the same broadcast domain , for reducing network risk; Supports perfect
storm control function which can suppress broadcast, multi-cast, and uni-cast
storm; Support specific ARP inspection which can effectively prevent ‘‘ARP
spoofing attack’’ created by hackers or attackers via ARP packets.
u Convenient
management and maintenance
By
easy WEB interface(http and https protocol supported), you can conveniently
operate and configure all kinds of function in this switch. Support management
by CLI, Telnet, Console port, which is more suitable for professional network
administrator; It also allow reset by one-press, making maintenance easier.
Features
◆48x
10/100/1000M RJ45 + 4x 10G SFP+
◆L2+ features provide better manageability,
security, QoS, and performance
◆Support L2+ Switching features, including VLAN, TRUNK, Mirroring, Port isolation/flow control/speed
limit, Storm control, QOS, ACLs etc.
◆Support spanning tree STP and RSTP.
◆Jumbo frames support up to 9.6K kilobytes
◆Support enhanced management through WEB, CLI,
TELNET, SNMP
◆Support cable diagnosis
◆48 ports
support PoE. Compliant with both IEEE 802.3af and 802.3at. Allow PoE configuration
for each PoE port
Product Specification
|
Model Model
|
BD-S36048FM
|
|
Ports
|
48x 10/100/1000M RJ45
ports
|
|
4x 10G SFP+
|
|
Management port
|
1x Console port
|
|
Reset key
|
1x Reset key, for
restore default settings
|
|
Bandwith
|
184G
|
|
Switch throughout
|
131Mpps @ 64byts
|
|
Operating temperature
|
-20~+75°C
|
|
Input voltage
|
AC: 110～240V/50～60Hz
|
|
Total power
consumption
|
60W
|
Technical Characteristic
|
Model
|
BD-S36048PFM
|
|
|
Protocol & Standard
|
IEEE
802.3,10BASE-T Ethernet;
|
|
|
IEEE
802.3u, fast Ethernet Standard;
|
|
|
IEEE
802.3ab, gigabit Ethernet Standard;
|
|
|
IEEE
802.3z, gigabit Ethernet Fiber Standard;(AOC fiber cable)
|
|
|
IEEE
802.3ae,10G Ethernet Standard;
|
|
|
IEEE
802.3x, full-duplex Ethernet data link layer flow control;
|
|
|
MAC
|
32K
|
|
|
supports
automatic updates, two-way learning;
|
|
|
SRAM
Buffer
|
32Mb
|
|
|
VLAN
|
Support up to 4K VLAN;
|
|
|
Support port-based VLAN;
|
|
|
Support 802.1Q
tag-based VLAN;
|
|
|
Spanning
Tree
|
STP,
RSTP, MSTP
|
|
|
Port Aggregation
(TRUNK)
|
Support 4x 10G ports aggregation, support 16x gigabit ports
aggregation
|
|
|
Support
26x groups aggregation
|
|
|
Port Mirroring
|
Support
multiple to single Port mirroring, no limit for quantity of
mirroring source ports
|
|
|
Port Isolation
|
Support
downstream ports isolated from each other, while opening communication with
upstream ports
|
|
|
Port Flow Control
|
Support
half-duplex back pressure based control;
|
|
|
Support
full-duplex PAUSE frame based control;
|
|
|
Port Speed Limit
|
Support
port-based input/output bandwith management
|
|
|
Storm Control
|
Prevents
traffic on a LAN from being disrupted by a broadcast, multicast, or unicast
storm on a port
|
|
|
Support
port storm threshold setting
|
|
|
Security Features
|
Hardware
support port-based IP+MAC Binding;
Hardware support port-based ARP inspection detection;
|
|
|
|
QOS
|
SP
(Strict Priorty);
|
|
|
WFQ
(Weighted Fair Queuing);
|
|
|
WRR
(Weighted Round Robin);
|
|
|
Head
Of Line;
|
|
|
Best-Effort
Service;
|
|
|
First
come first served;
|
|
|
802.1p;
|
|
|
Cos/Tos,
QOS;
|
|
|
Differentiated
Service;
|
|
|
Network
Cable Line Sequence
|
Support
Auto-MDIX, automatic Identification straight-through cable and crossover cable
|
|
|
cable
diagnosis
|
Support
cable diagnosis, Cable quality (differential pair impedance 85ohm ~ 125ohm),
cable length, a short-circuit line
|
|
|
Negotiation
Mode
|
Support
port auto-negotiation function (auto-negotiation transmission rate and duplex
mode)
|
|
|
System
Maintenance
|
Support
configuration file uploda/download;
|
|
|
Support
update packet upload;
|
|
|
Support
WEB reset;
|
|
|
Reset
by pressing key;
|
|
|
Support
system log save/output;
|
|
|
Network
Management
|
Support
WEB management ;
|
|
|
Support
CLI management ;
|
|

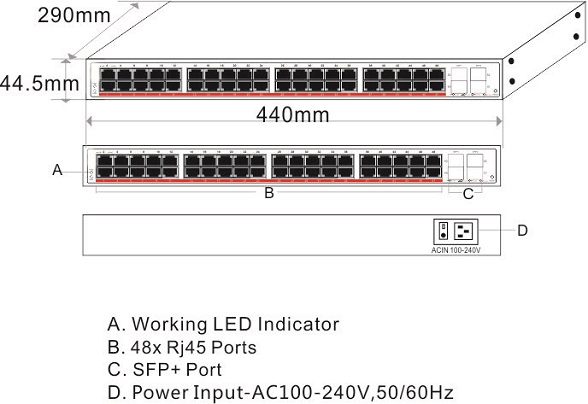

Product Dimension Display

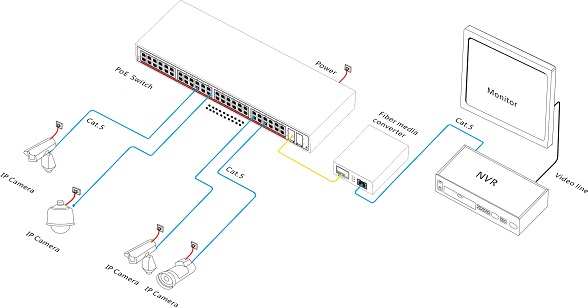

Product Application
Packing Lists
|
Packing
Lists
|
48-port
10G Managed Ring PoE Switch (BD-S36048FM)
|
|
Power kit
|
|
User Guide
|
|
Warranty Card
|
