Fiber Optical Distribution Box
Fiber Optical Distribution Box,The fiber terminal is used to connect the fiber in the house and it can be hanged on the wall or fixed on the floor.

  Request price     Contact us

INFORMATION

Description:

The fiber terminal is used to connect the fiber in the house and it can be hanged on the wall or fixed on the floor. the body is made of steel plate with rot-resistant coating.For meeting the new development of communication network, the products considered to be new small distribution cabinets, it is applied for remote module offices, BTS, etc. DDF, ODF modules are integrated in the same equipment, so the original functions are realized and do save space and be easy to manage.

Features:

  • Mounted against wall to save space
  • Patch cords management is clear and neat
  • Enough optic fiber storing space, curvature ratio of fibers is very well guaranteed
  • Reliable groud protection
Technical index

?  performance temperature: -25?-+40?

?  relative humidity: ?85 %( +30? )

?  atmospheric pressure: 70KPa-106kPa

?  insulated resistanc e ? 2X104M ( 500VDC )

?  longevity : 20 years

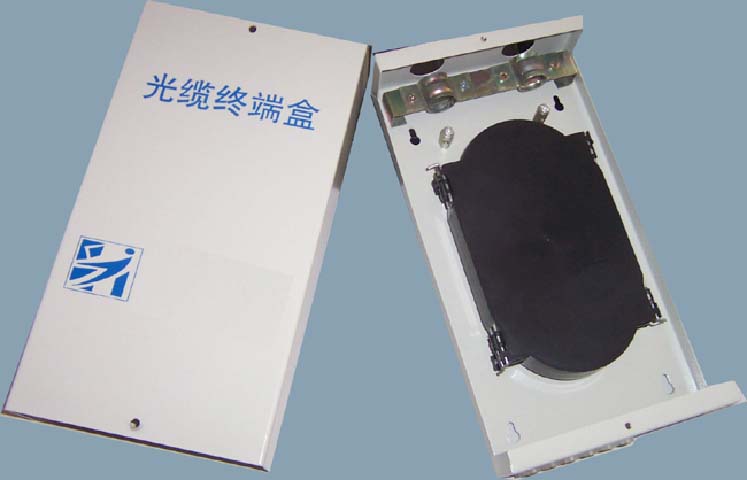

Access Style Terminal

Type: BD-FTB012

Line Im&expott Quantity: 1 ( it can be more)

Volume : 0~12 Cores  Overall Dimensions



19"Standard Terminal

Type: BD-FTB024

Line Im&expott Quantity: 2( it can be more)

Volume : 0~24 Cores  Overall Dimensions



Common Style Terminal

Type: BD-FTB048

Line Im&expott Quantity: 2( it can be more)

Volume : 0~48 Cores  Overall Dimensions


  16ports ODF with SC connector                        12ports ODF with SC connector

      ODF with fiber pigtail                                   8ports ODF fiber terminal box



Ordering information
