INFORMATION
Be applied to connect φ0.25--φ0.9 fiber/cable;take advantage of mature V-groove technologies,suitable for single mode and multimode; No fixture, operation time less than 1 minute; better
performance than the imported products.
Technical specification
Applicable for
|
φ0.25 mm &φ0.90 mm fiber
|
Size
|
45*4.2*4.7mm
|
Optical fiber diameter
|
125μm ( 652 & 657 )
|
Tight buffer diameter
|
250μm & 900μm
|
Applicable mode
|
single & multimode
|
Operation time
|
about 10s (without fiber cut)
|
Insert loss
|
≤ 0. 25 dB（1310nm & 1550nm）
|
Return loss
|
≤ -45dB
|
Fastening strength of naked fiber
|
>5 N
|
Clamping force of fiber with tight buffer
|
>8 N
|
Using temperature
|
-40～+75℃
|
Relevant solutions
Pigtail to on-site fiber, cable to cable, used in optical cross connection cabinet, ODF, cable splice closure, optical fiber splitting cabinet, 86 type outlet.
Application FTTx，CO network restruction
Patent number 2009 1 0032845.8

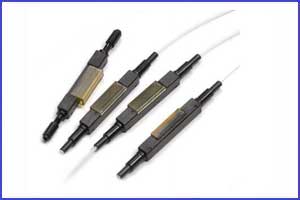

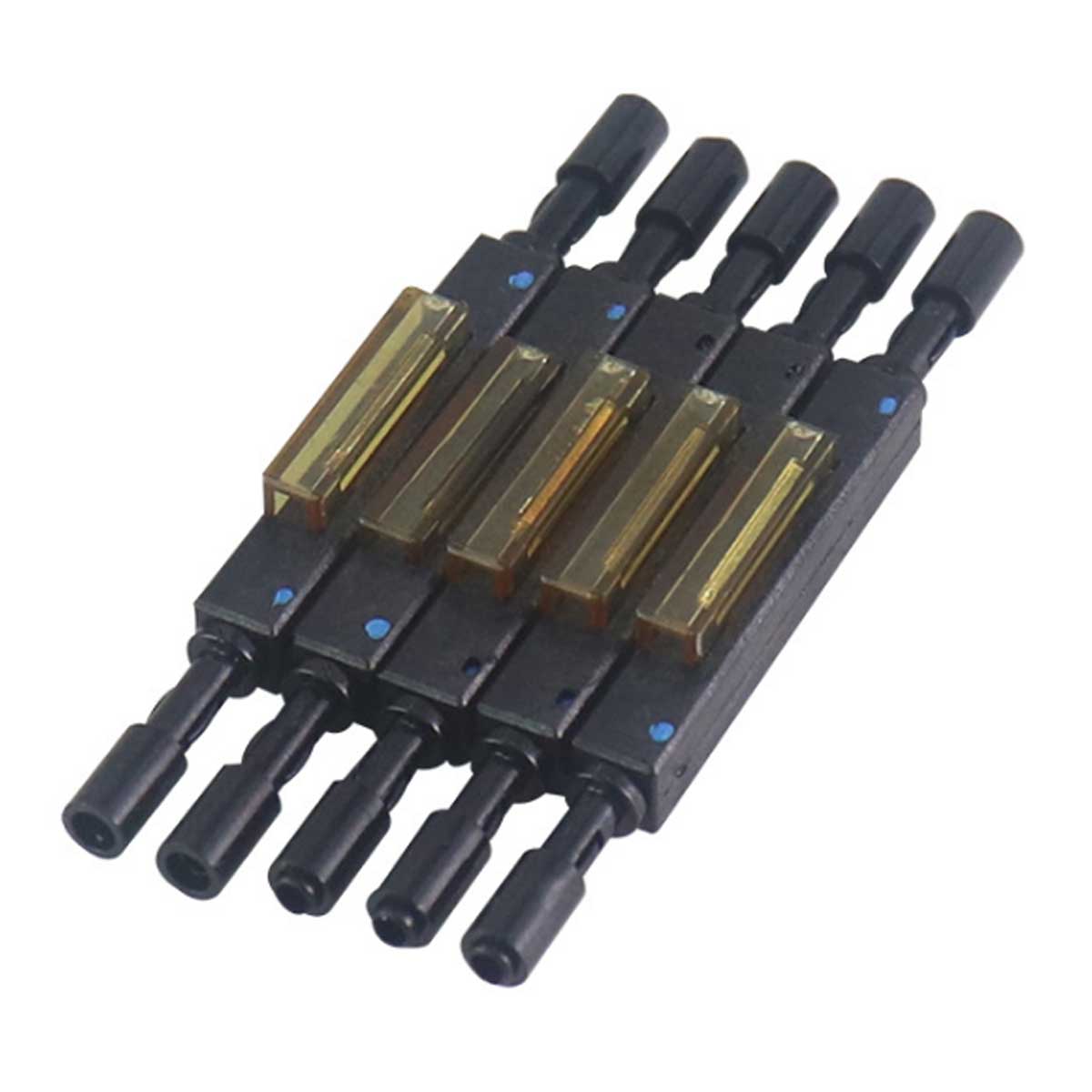

BD-LJ9B Fiber Optic Mechanical Splic
