INFORMATION

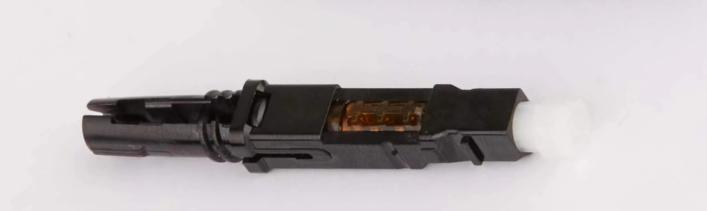

Quick Assembly SC connector can provide quick and easy terminations of fibers in the field. It allows the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system with features of high installation quality, high success rate and high reliability.
Specifications
Parameters
|
Value
|
Parameters
|
Value
|
Insertion Loss
|
Average ≤0.3 DB, max ≤0.5 DB
|
Repeatability (500 Mating Times)
|
Average ≤0.3 DB, max ≤0.5 DB
|
Return Loss
|
UPC≥ 45dB APC≥ 50dB
|
Temperature cycle
|
Tensile strength
|
F>30N
|
Vibration test
|
Operating Temperature
|
-20 ~ +75℃
|
Flooding test
|
Storage Temperature
|
-40 ~ +85℃
|
Tensile strength
|
F>30N
|
Operation Instruction
Necessory Tools
FTTH Drop Cable Stripper Fiber Stripper FC-7S Fiber Cleaver
Fixed length device Dust-free cloth & alcohol bottle
Product Components
Connector Screw Cap SC/UPC Housing SC/APC Housing
Connector Body
