INFORMATION

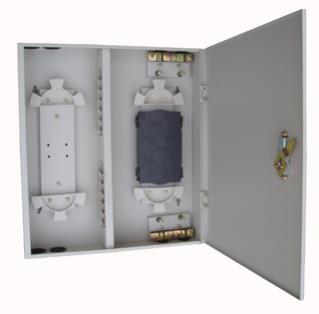

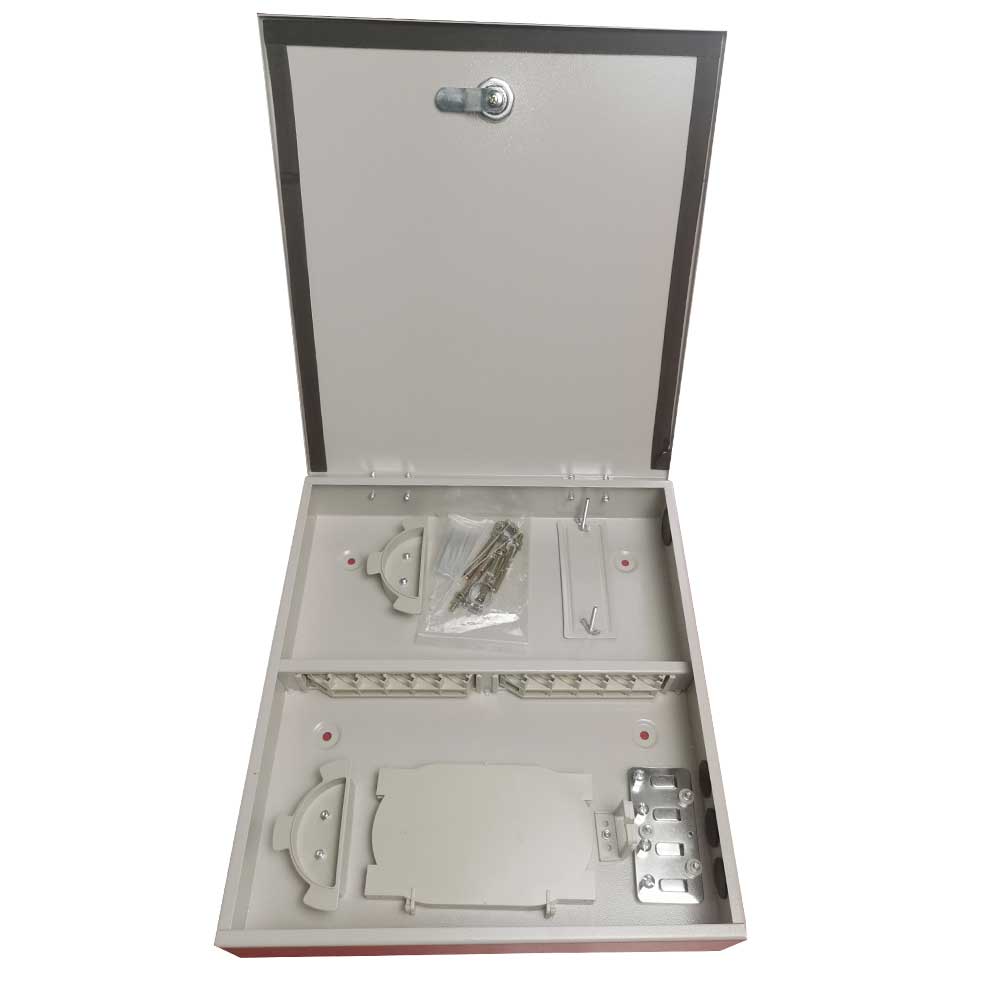

The wall mounting fiber optic terminal box is used to connect the fiber in the house and it can be hanged on the wall or fixed on the floor. the body is made of steel plate with rot-resistant coating. For meeting the new development of fiber communication network, the products considered to be new small distribution cabinets, it is applied for remote module offices, BTS, etc. 8~48core are available.
Structure Feature:
· the wall mounting optic terminal box is made of high quality cold rolled steel with electrostatic spraying
· Number of cable inlets and outlets: 4 cable inlets/outlets, adapter panel can accommodate 12~48 pieces of adapters
· Strength member and box are insulated, with grounding device
· With strength member and cable fixation device
· Installation method: wall mounting, openable side door, easy for patchcord operation
· Removable adapter panel for FC, SC and ST adapters
Performance Advantages:
· Reasonable design
· Reliable cable leading, grounding and fixation
· Reliable fixation and perfect protection of the pigtail
· Wide usage range
· Easy and quick operation and maintenance
Technical Parameter:
· Environmental Temperature: -25°C~+45°C
· Relative Humidity: ≤85% (30°C)
· Air Pressure: 70~106KPa
· Insulation Resistance: ≥2×104MΩ
· Voltage Resistance: under 15KV DC and 1 min, no puncture, no arc-over
· Fiber bending radius in tray: ≥40mm
