One PON and One Fast Ethernet GEPON ONU
BD-ONU-101H is EPON ONU (Optical Network Unit) designed especially for Gigabit Ethernet Passive Optical Network (GEPON) transmission applications. BD-ONU-101H provide one GE PON uplink port and one 10/100BASE-T fast ethernet port.

  Request price     Contact us

INFORMATION

Brief Views

     The GEPON ONU (Optical Network Unit) is for Gigabit Ethernet Passive Optical Network (GEPON) transmission applications.
   BD-ONU-101H is GEPON ONU device which designed mainly for FTTH (Fiber to home) and FTTO (Fiber to office)/FTTB (Fiber to Building) application. BD-ONU-1XXH series ONU support 1000Base-PX10/PX20 standard with 1:62 maximum optical splitting ratio and 10/20km distance. BD-ONU-101H provide one GE PON uplink port and one 10/100BASE-T fast ethernet port.

   BD-ONU-1XXH series ONU working with BD-OLT-8000 optical line terminal (OLT) cAN realize flexible network structure and maintenance and provide total FTTx solutions.

BD-ONU-101H adopts single fibre WDM technology with downlink wavelength 1490nm and uplink wavelength 1310nm .It only needs one-core fibre to transmit data service.

Functional Feature

*         Support port-based rate limitation and bandwidth control;

*         In compliant with IEEE802.3ah Standard

*         Up to 20KM transmission Distance

*         Support data enscryption, group broadcasting, port Vlan separation ,RSTP,etc.

*         Support Dynamic Bandwidth Allocation (DBA)

*         Support ONU auto-discovery/Link detection/remote upgrade of software;

*         Support VLAN division and user separation to avoid broadcast storm;

*         Support various LLID configuration and single LLID configuration .Different user and different service could provide different QoS by means of different LLID channels.

*         Support power-off alarm function ,easy for link problem detection

*         Support broadcasting storm resistance function

*         Support port isolation between different ports

*         Support ACL and SNMP to configure data packet filter flexibly

*         Specialized design for system breakdown prevention to maintain stable system

*         Support software online upgrading

*         EMS network management based on SNMP ,convenient for maintenance

 Physical Features

Dimension: 135mm(L) x 100mm(W) x 35mm (H)

Weight: 0.75KG

Working Temperature: -550;

Storage Temperature: -4080;

Working Humidity: 10%~90;

Power Supply: 220V AC,

Power Consumption :<5W

LED: Power LED,Reset LED,Register LED,PON LED,LINK LED

Operation temperature: -5℃+45℃

Typical Application:



Questions and Answers:


Question1: Can Baudcom's ONU support  NAT or routing?

Answer: Baudcom's ONU can support routing function.

Question2: Is there any onu with wifi?

Answer: Baudcom can provide the wifi ONU with 4ethernet port.

Question3: BW control of each port of the ONU can be done?

 Answer: the BW can be controlled

Question4: ONU to ONU connection is supported? P2P  ONU to ONU unders the same PON port..

Answer: One PON port ,two ONU connection,need the two ONUs are our ONU

if one ONU is from other supplier,can not work,the two ONUs under one PON can not communicate


Ordering information


Related Products

8ports GEPON Optical Line Terminal (OLT)system

GEPON OLT,8ports GE uplink ports and 8ports GE uplink ports

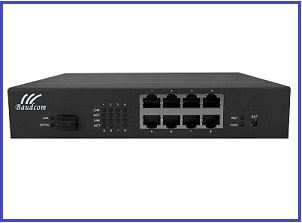

8*10/100M GEPON ONU
