4Port Fast Ethernet GEPON ONU
BD-ONU-104H is GEPON ONU (Optical Network Unit) device which provide 1 PON port and 4*10/100BASE-T ports.

  Request price     Contact us

INFORMATION

Brief Views

BD-ONU-104H is GEPON ONU (Optical Network Unit) device which designed mainly for Gigabit Ethernet Passive Optical Network (GEPON) transmission applications.

BD-ONU-1XXH series ONU support 1000Base-PX10/PX20 standard with 1:62 maximum optical splitting ratio and 10/20km distance. BD-ONU-101H provide one GE PON uplink port and one 10/100BASE-T fast ethernet port.

   BD-ONU-1XXH series ONU working with BD-OLT-8000 optical line terminal (OLT) cAN realize flexible network structure and maintenance and provide total FTTx solutions.

BD-ONU-101H adopts single fibre WDM technology with downlink wavelength 1490nm and uplink wavelength 1310nm .It only needs one-core fibre to transmit data service.

ONU BD-ONU-104H has 1 PON port ,4*10/100BASE-T ports.

ONU BD-ONU-108B has 1 PON port ,8*10/100BASE-T ports.

4ethernet Gepon onu

Functional Feature

       ●  Support port-based rate limitation and bandwidth control;

       ●  In compliant with IEEE802.3ah Standard

       ●  Up to 20KM transmission Distance

       ●  Support data enscryption, group broadcasting, port Vlan separation ,RSTP,etc.

       ●  Support Dynamic Bandwidth Allocation (DBA)

       ●  Support ONU auto-discovery/Link detection/remote upgrade of software

       ●  Support VLAN division and user separation to avoid broadcast storm;

       ●  Support various LLID configuration and single LLID configuration .Different user and different service could provide different QoS by means of different LLID channels.

       ●  Support power-off alarm function ,easy for link problem detection

       ●  Support broadcasting storm resistance function

       ●  Support port isolation between different ports

       ●  Support ACL and SNMP to configure data packet filter flexibly

       ●  Specialized design for system breakdown prevention to maintain stable system

       ●  Support software online upgrading

       ●  EMS network management based on SNMP ,convenient for maintenance

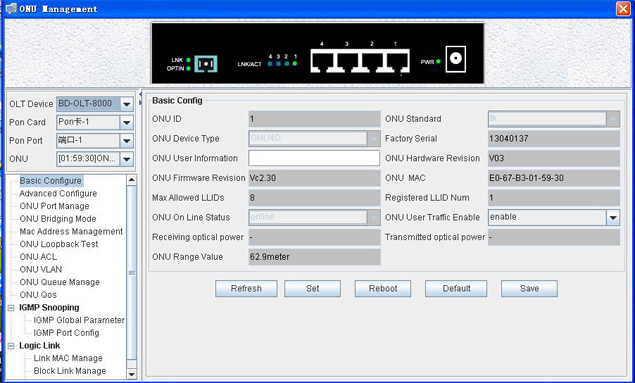

ONU be Managed Screen

4Ports ONU management screen














Physical Features

Dimension: 135mm(L) x 100mm(W) x 35mm (H)

Weight: 0.75KG

Working Temperature: -550;

Storage Temperature: -4080;

Working Humidity: 10%~90;

Power Supply: 220V AC,

Power Consumption :<5W

LED: Power LED,Reset LED,Register LED,PON LED,LINK LED

Operation temperature: -5℃+45℃

Typical Application:



Ordering information
