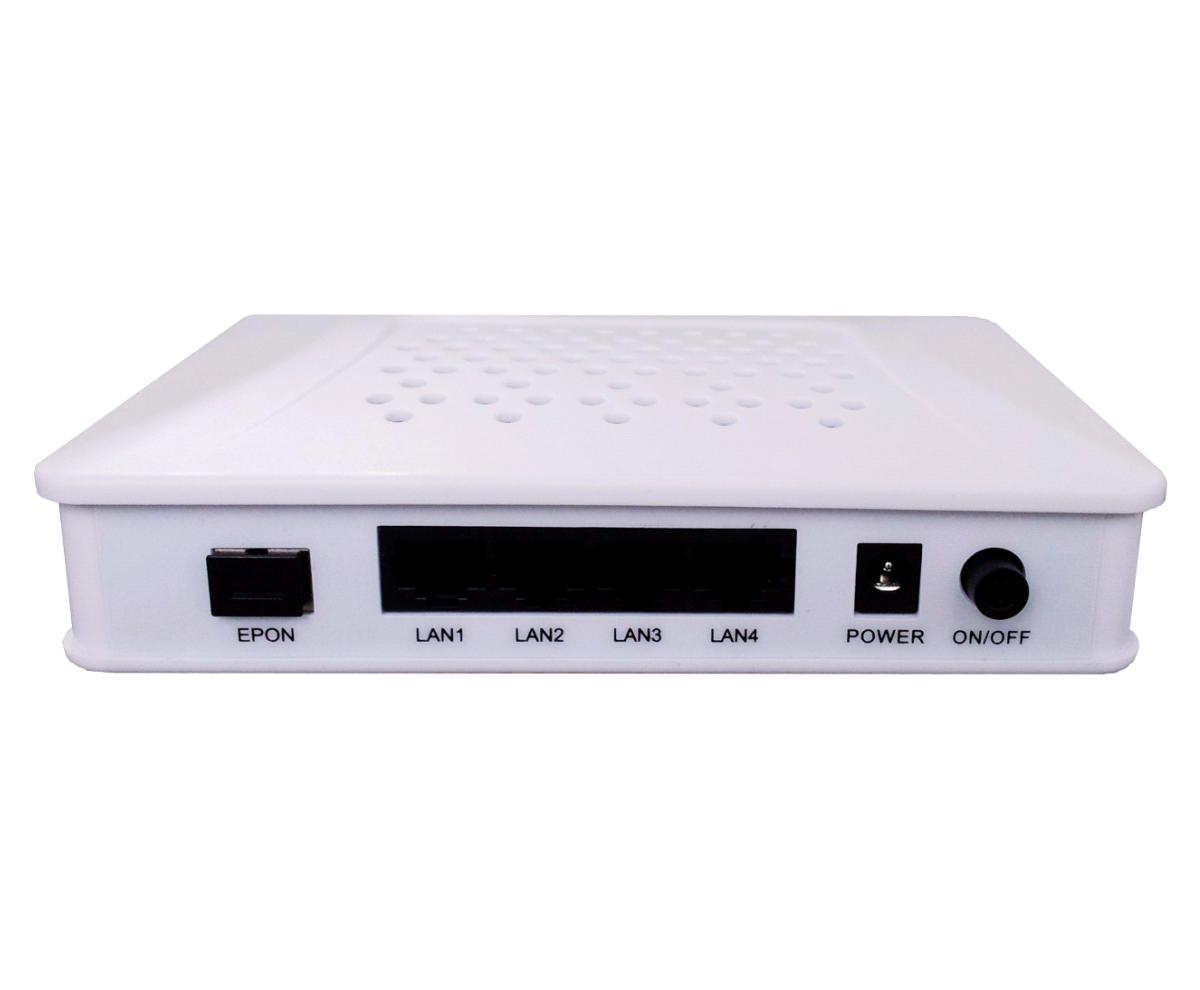

EPON ONU BD-ONU-104G is designed mainly for FTTH ,FTTO
application. EPON ONU BD-ONU-104G support 1000Base-PX20+ standard with 1:64
maximum optical splitting ratio, 20km distance and provide 1uplink EPON port.
BD-ONU-104G together with OLT could realize
flexible network structure, maintenance and provide total FTTx solutions.
BD-ONU-104G has 1 PON port , 4*10/100/1000M BASE-T
ports .
Functional Feature
n Support port-based rate
limitation and bandwidth control;
n In compliant with IEEE802.3ah
Standard
n Up to 20KM transmission Distance
n Support data encryption, group
broadcasting, port Vlan separation , etc.
n Support Dynamic Bandwidth
Allocation (DBA)
n Support ONU auto-discovery/Link
detection/remote upgrade of software;
n Support VLAN division and user
separation to avoid broadcast storm;
n Support power-off alarm function
,easy for link problem detection
n Support broadcasting storm
resistance function
n Support port isolation between
different ports
n Support ACL and SNMP to configure
data packet filter flexibly
n Specialized design for system
breakdown prevention to maintain stable system
n Support software online upgrading
n EMS network management based on
SNMP, convenient for maintenance
Specification
|
Item
|
Parameter
|
|
PON Interface
|
1 EPON optical interface
Meet 1000BASE-PX20+ standard
Symmetric 1.25Gbps upstream/downstream
SC single-mode fiber
split ratio: 1:64
Transmission distance 20KM
|
|
User Ethernet
Interface
|
4*10/100/1000Mauto-negotiation
Full/half duplex mode
RJ45 connector
Auto MDI/MDI-X
100m distance
|
|
Power Interface
|
12V DC Power supply
|
|
PON Optical Parameter
|
Wavelength: Tx 1310nm, Rx1490nm
Tx Optical Power: -1～4dBm
Rx Sensitivity: -27dBm
Saturation Optical Power: -3dBm
Connector Type: SC
Optical Fiber: 9/125ɥm single-mode fiber
|
|
Data Transmission
Parameter
|
PON Throughput: Downstream 950Mbps; Upstream
930Mbps
Ethernet: 1000Mbps
Packet Loss Ratio: <1*10E-12
latency: <1.5ms
|
|
Business Capability
|
Layer 2 wire speed
switching
Support VLAN TAG/UNTAG，VLAN conversion
Support Port-based speed
limitation
Support Priority
classification
Support storm control
of broadcast
Support link detection
|
|
Network Management
|
Support IEEE802.3 QAM,
ONU can be remotely managed by OLT
Support Remote
management through SNMP and Telnet
Local management
|
|
Management
Function
|
Status monitor, Configuration management,
Alarm management,
Log management
|
|
LED Indicator
|
PWR: Power up or down
OPTIN: Optical Link
Status
LINK: ONU Registered
LAN: Link Status of
Ethernet Interface
|
|
Shell
|
Plastic casing
|
|
Power
|
External 12V 0.5A AC/DC
power supply adapter
Power consumption: <
2.5W
|
|
Physical
Specifications
|
Item Dimension: 160mm(L)
x 120mm(W) x 32.5mm (H)
Item weight: 0.2kg
|
|
Environmental
Specifications
|
Operating temperature: 0 to 50 oC
Storage temperature: -40 to 85 oC
Operating humidity: 10% to 90% (Non-condensing)
Storage humidity: 10% to 90% (Non-condensing)
|
Application
● Typical Solution: FTTH
● Typical Business: INTERNET、IPTV、IP
Camera
Figure:

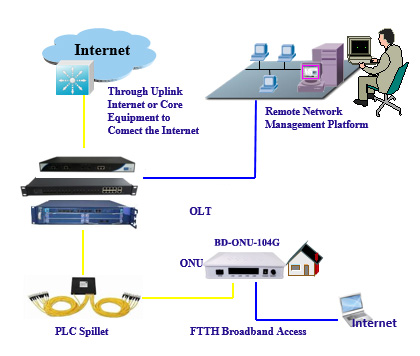

BD-ONU-104G Application Diagram
