INFORMATION
Overview

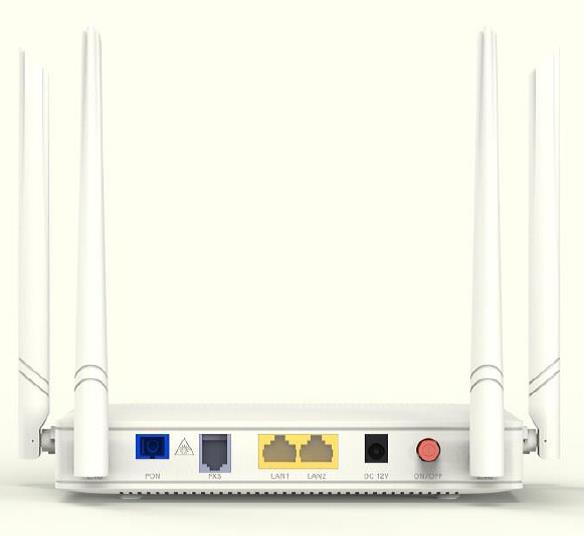

BD-ONT-212GWI-AC is 2GE+POTs+ac WIFI ONU terminal devices which
are designed for fulfilling FTTH and triple play service demand of fixed
network operators or cable operators. These boxes are based on
the mature Chipset (Realtek) technology, which have high ratio of
performance to price, and the technology of IEEE802.11b/g/n/ac
WiFi, Layer 2/3, and high quality VoIP as well. They are highly reliable and
easy to maintain, with guaranteed QoS for different service. And they are
fully compliant with technical regulations such as ITU-T G.984.x
and technical requirement of GPON Equipment (V2.0 and above version)
from China Telecom.
Features
● Support
full management of HGU functions by BAUDCOM OLT
● Plug and play, features auto-detecting, auto[1]configuration,
and auto firmware upgrade , etc
● Integrated OAM/OMCI remote configuration and maintenance functi
● Support rich QinQ VLAN functions and IGMP Snooping multicast features
● Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset
● Support 802.11n/ac WiFi(4T4R) function
● Support NAT, Firewall function
● Support IPv4 and IPv6 dual stack
● Support SIP protocol
● Integrated line testing compliant with GR-909 on POTS
Specification
|
Technical
Item
|
2GE+1POTS+ac
WIFI ONU
|
|
PON interface
|
1 GPON port
Receiving
sensitivity: ≤-28dBm Transmitting optical power: 0～+4dBm
Transmission
distance: 20KM
|
|
Wavelength
|
Tx1310nm,Rx
1490nm
|
|
Optical
interface
|
SC/APC
connector
|
|
LAN interface
|
2 x
10/100/1000Mbps auto adaptive Ethernet interfaces, Full/Half, RJ45 connector
|
|
POTS interface
|
1 x RJ11
connectors
Support:
G.711A/G.711U/G.723/G.729 codec
Support:
T.30/T.38/G.711 Fax mode, DTMF Relay
|
|
WiFi interface
|
Compliant with
IEEE802.11b/g/n/ac
2.4GHz
Operating frequency: 2.400-2.4835GHz 5.0GHz Operating frequency:
5.725-5.875GHz
Support MIMO,
4T4R,5dBi external antenna, rate up to 1.167Gbps Support: multiple SSID
TX power:
11n--22dBm/11ac--24dBm
|
|
LED
|
10, For Status
of POWER、LOS、PON、SYS、 LAN1～LAN2、POTS、WiFi、CATV、PoE
|
|
Operating
condition
|
Temperature: 0℃～+50℃
Humidity: 10%～90%（non-condensing）
|
|
Storing
condition
|
Temperature:
-30℃～+60℃
Humidity: 10%～90%（non-condensing）
|
|
Power supply
|
DC 48V/1A
|
|
Power supply
|
≤12W
|
|
Dimension
|
178mm×120mm×30m(L×W×H)
|
|
Net weight
|
0.36Kg
|
Application
2 Solution：FTTH、FTTB、FTTO、PON+EOC
2 Business：Broadband Internet、Voice、IPTV、VOD、IP Camera、WIFI
