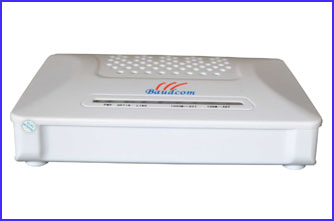

BOSA type 1GE EPON ONU
EPON ONU is mainly designed for FTTH,FTTO application. It support 1000Base-PX20+ standard with 1:64 maximum optical splitting ratio and 20km distance, and provide 1uplink GE PON port.

  Request price     Contact us

INFORMATION

Brief Views

EPON ONU BD-ONU-111-Z-B is mainly designed for FTTH,FTTO application. BD-ONU-111-Z-B support 1000Base-PX20+ standard with 1:64 maximum optical splitting ratio and 20km distance, and provide 1uplink GE PON port.

BD-ONU-111-Z-B together with OLT could realize flexible network structure and maintenance and provide total FTTx solutions.
The GE ONU has 1 PON port and one 10/100/1000BASE-T ports

Functional Feature

n        Support port-based rate limitation and bandwidth control;

n        In compliant with IEEE802.3ah Standard

n        Up to 20KM transmission Distance

n        Support data encryption, group broadcasting, port Vlan separation, etc.

n        Support Dynamic Bandwidth Allocation (DBA)

n        Support ONU auto-discovery/Link detection/remote upgrade of software;

n        Support VLAN division and user separation to avoid broadcast storm;

n        Support power-off alarm function ,easy for link problem detection

n        Support broadcasting storm resistance function

n        Support ACL and SNMP to configure data packet filter flexibly

n        Specialized design for system breakdown prevention to maintain stable system

n         Support software online upgrading EMS network management based on SNMP ,convenient for maintenance

Specification

Item

Parameter

Interface

PON Interface

1 EPON optical interface

Meet 1000BASE-PX20+ standard

Symmetric1.25Gbpsupstream/downstream
SC single-mode fiber

split ratio:1:64

Transmission distance 20KM

User Ethernet
Interface

1*10/100/1000M auto-negotiation

Full/half duplex mode
RJ45 connector
Auto MDI/MDI-X
100m distance

Power Interface

12V DC Power supply

Performance Parameters

PON

Optical

Parameter

Wavelength: Tx 1310nm, Rx1490nm

Tx Optical Power: -14dBm

Rx Sensitivity: -27dBm

Saturation Optical Power: -3dBm

Connector Type: SC

Optical Fiber: 9/125ɥm single-mode fiber

Data Transmission
Parameter

PON Throughput: Downstream 950Mbps; Upstream 930Mbps
Ethernet:
1000Mbps

 Packet Loss Ratio:<1*10E-12
latency: <1.5ms

Business
Capability

Layer 2 wire speed switching

Support VLAN TAG/UNTAG, VLAN conversion

Support Port-based speed limitation

Support Priority classification

Support storm control of broadcast

Network Management

Management

Mode

Support IEEE802.3 QAM, ONU can be remotely managed by OLT

Support Remote management through SNMP and Telnet

Local management

Management
Function

Status monitor, Configuration management, Alarm management,
Log management

Indicator

LED Indicator

PWR: Power up or down

SYS: System instructions

OPTIN: Optical Link Status

LINKONU Registered

LAN: Link Status of Ethernet Interface

Physical Features

Shell

Plastic casing

Power

External 12V 0.5A AC/DC power supply adapter

Power consumption: <2.3W

Physical
Specifications

Item Dimension110mm(L) x 70mm(W) x 30mm (H)

Item weight0.1kg

Environmental
Specifications

Operating temperature:  0 to 50 oC

Storage temperature: -40 to 85 oC

Operating humidity: 10% to 90% (Non-condensing)

Storage humidity: 10% to 90% (Non-condensing)

Application

2      Typical SolutionFTTHFTTBPON+EOC

2      Typical BusinessINTERNETIPTVVODIP Camera

GEPON ONU question and comments



Question:Do the GE ONU support the IPV6?

Answer: The ONU can not support the IPV6. Baudcom's ONU wifi can support the IPV6.
