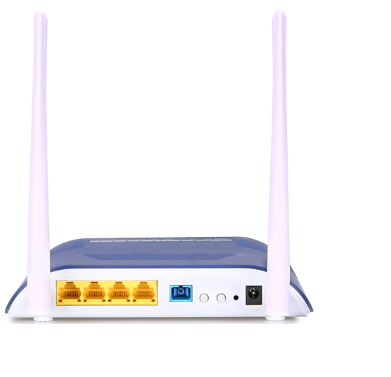

Economical Pratical 1GE 3FE wifi EPON ONU
BD-ONU-211HW is mainly designed for FTTH,FTTO application. BD-ONU-211HW support 1000Base-PX20+ standard with 1:64 maximum optical splitting ratio and 20km distance, and provide 1uplink EPON port

  Request price     Contact us

INFORMATION

Overview:
BD-ONU-211HW is mainly designed for FTTH,FTTO application. BD-ONU-211HW support 1000Base-PX20+ standard with 1:64 maximum optical splitting ratio and 20km distance, and provide 1uplink EPON port.
BD-ONU-211HW work together with OLT could realize flexible network structure and maintenance and provide total FTTx solutions.
The GE wifi ONU has 1 PON port ,3* 10/100BASE-T ports,1*10/100/1000 BASE-T ports and support Wi-Fi.

Main Function:
Function Parameter
Internet connection Bridge / Routing
LAN Support Port rate limitingSupport Loop detectionSupport Flow controlSupport Storm control
VLAN Support VLAN tag modeSupport VLAN transparent modeSupport VLAN trunk modeSupport VLAN translation modeSupport VLAN QinQ mode
Multicast Support IGMPv1/v2/v3Support IGMP Proxy and MLD ProxySupport IGMP Snooping and MLD Snooping
L3 Support IPv4IPv6 and IPv4/IPv6 dual stackSupport WAN DHCP/PPPOE/Static IPSupport Static RouteSupport NATSupport Port forwarding

Support DHCP server

Wireless Support 802.11b/g/n and Mixed modeSupport No-authWEPWPA-PSK and WPA2-PSK function withAES、TKIP encryption
Security Support FirewallSupport Mac filterSupport ACLSupport URL filter
QoS Support 4 queuesSupport SP and WRRSupport 802.1PSupport DSCP
Management Support CTC OAM 2.0 and 2.1Support WEBSupport TELNETSupport TR069


Specification:

Parameter Name

Hardware Parameter

PON EPON, SC symmetric 1.25Gbps, single-mode/single-fiber
PON Port Type BOSA
Wavelength Tx 1310nm, Rx 1490nm
Sensitivity <-27dBm(PX20+)
Overload > -3dBm(PX20+)
Optical Type SC/PC
LAN Interface 1*10/100/1000Mbps + 3*10/100MbpsAuto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connector
Wireless IEEE802.11b/g/n, 300Mbps, 2T2R , 2 External
Indicators 8, For POWERLOSREGLANWiFi
Power adapter input 220V AC50HZ
Ambient temperature -20 ~ +55℃
Ambient humidity 10% ~ 90%(non-condensing)
Store temperature -30 ~ +60℃
Store humidity 10% ~ 90%(non-condensing)
DimensionL x W x H 185mm×122mm×33mm
Power 12V, 1.5A
Power Consumption 10W

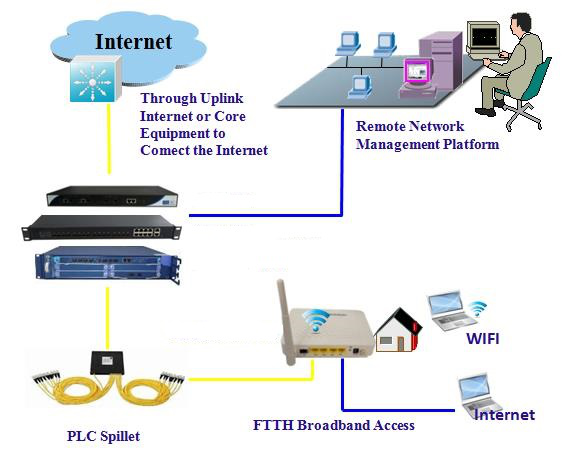

Application:

ge fe wifi epon onu application



Ordering information


Related Products

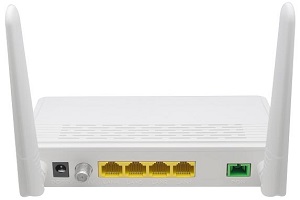

1GE+3FE+WIFI+CATV EPON ONU

BD-ONU-304HW-H is designed as HGU (Home Gateway Unit) in deferent FTTH solutions by, The carrier-class FTTH application provides data service access.

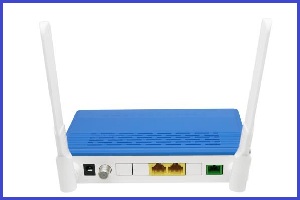

Triple Play Service EPON ONU 1GE+1FE+WIFI CATV EPON Optical Network Unit
