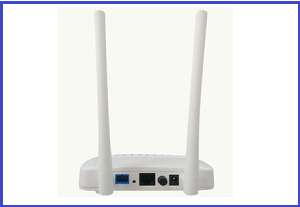

1GE+3FE+WIFI+CATV EPON ONU
1GE+3FE+WIFI+CATV EPON ONU

  Request price     Contact us

INFORMATION

1. Overview

n  BD-ONU-304HW-H  is designed as HGU (Home Gateway Unit) in deferent FTTH solutions by, The carrier-class FTTH application provides data service access.

n  BD-ONU-304HW-H  is based on mature and stable, cost-effective EPON technology. It can access to the major EPON OLT.

n  BD-ONU-304HW-H  adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0.

n  BD-ONU-304HW-H  is designed by Realtek chipset



2. Functional Feature

n  Support EPON Standard of China Telecom EPON CTC3.0

n  Support ONU auto-discovery/Link detection/remote upgrade of software

n  WAN connections support Route and Bridge mode

n  Route mode supports PPPoE/DHCP/ static IP

n  Support WIFI Interface and multiple SSID

n  Support CATV interface for Video Service and control by OLT

n  Support QoS and DBA

n  Support port Isolation and port vlan configuration

n  Support  Firewall function and IGMP snooping/Proxy multicast feature

n  Support  LAN IP and DHCP Server configuration

n  Support Port Forwarding and Loop-Detect

n  Support TR069 remote configuration and maintenance

n  Specialized design for system breakdown prevention to  maintain stable system

 Hardware Specification

Technical item

Details

PON Interface

1 EPON port(EPON PX20+)

Receiving sensitivity: ≤-27dBm

Transmitting optical power: 0~+4dBm

Transmission distance: 20KM

Wavelength

TX: 1310nm, RX: 1490nm

Optical Interface

SC/APC Connector

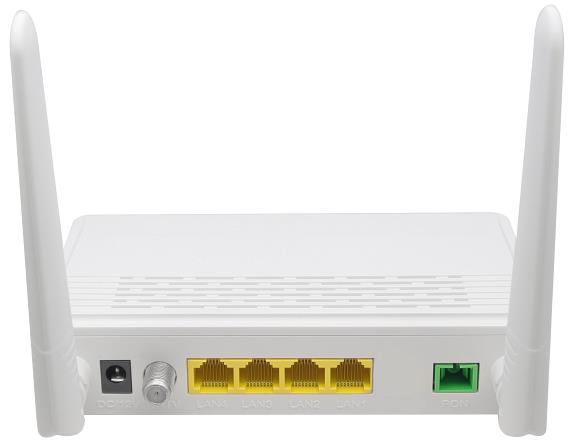

LAN Interface

1 x 10/100/1000Mbps and 3 x 10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector

CATV Interface

RF, WDM ,optical power : +2~-18dBm

Optical reflection loss: ≥45dB

Optical receiving wavelength: 1550±10nm

RF frequency range: 47~1000MHz,  RF output impedance: 75Ω

RF output level: 78dBuV

AGC range: 0~-15dBm

MER: ≥32dB@-15dBm

Wireless

Compliant with IEEE802.11b/g/n,

Operating frequency: 2.400-2.4835GHz

support MIMO, rate up to 300Mbps,

2T2R,2 external antenna 5dBi,

Support: Multiple SSID

Channel: Auto

Modulation type: DSSS, CCK and OFDM

Encoding scheme: BPSK, QPSK, 16QAM and 64QAM

LED

11 LED, For Status of WIFIWPSPWRLOSPONLAN1~LAN4Worn Normal(CATV)

Push-Button

3,For Function of Reset, WLAN, WPS

Operating Condition

Temperature: 0~+50

Humidity: 10%90%non-condensing

Storing Condition

Temperature: -30~+60

Humidity: 10%~90%non-condensing

Power Supply

DC 12V/1A

Power Consumption

≤6W

Dimension

155mm×92mm×34mmL×W×H

Net Weight

0.24Kg

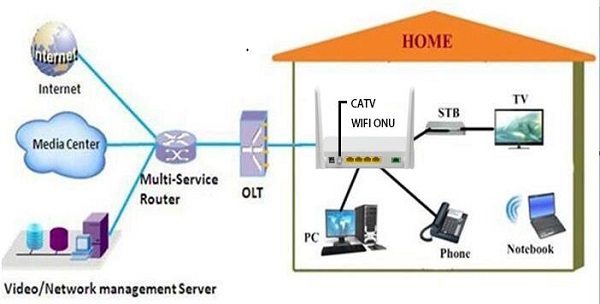

Application

n  Typical SolutionFTTO(Office) FTTB(Building)FTTH(Home)

n  Typical BusinessINTERNETIPTVIP Camera WIFI CATV etc




Ordering information
