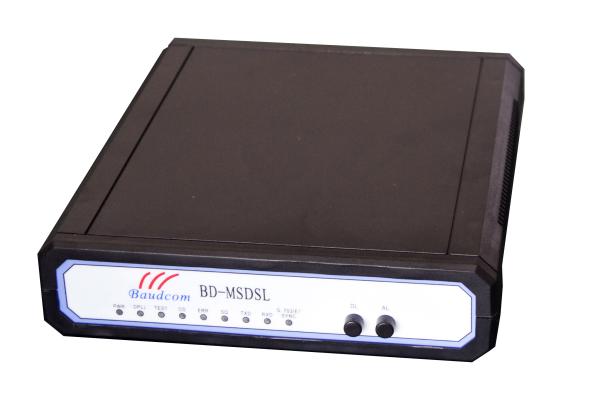

BD-MSDSL is a 2-wire high-performance self-learing long-range G.SHDSL modem with E1 or V.35/V.24 interface. E1 port can support BNC/75ohm and RJ45/120ohm optional. E1 V.35 to GSHDSL converter is a high quality and good performance modem with standard E1 or V.35/V.24 interface integrated. The G.SHDSL modem is a high quality and good performance modem with standard E1 or V.35/V.24 interface integrated. Its transmission distance 4Km via 2-wire at 2304Kbps. The G.SHDSL modem is designed with TC-PAM16 code according to ITU G.991.2 and ITU G.994.1, which can improve the transmission performance and economize resource, Low operating cost, simple manipulation,convenient use, it is the best solution for the customers.

Technology & Standards:
- G.SHDSL Compliance: Adheres to ITU G.991.2 (SHDSL) and G.994.1 (handshake protocol), ensuring reliable, standardized communication.
- TC-PAM16 Modulation: Uses 16-level Trellis Coded Pulse Amplitude Modulation to enhance data efficiency and distance (up to 4km at 2304 Kbps over 2-wire).
Interfaces:
- E1 (2.048 Mbps): Supports both BNC (75Ω coaxial) and RJ45 (120Ω twisted pair), accommodating legacy and modern infrastructure.
- V.35/V.24 (RS-232): Compatible with high-speed data equipment (e.g., routers) and legacy serial devices (e.g., industrial systems).
Performance:
- Full-Duplex Operation: Achieves symmetric speeds over a single pair using echo cancellation.
- Self-Learning Capability: Automatically adjusts data rates and line settings for optimal performance in varying conditions.
Design & Usability:

Low Operational Cost: Eliminates need for repeaters up to 4km, reducing infrastructure costs.
Plug-and-Play Setup: Simplified deployment with minimal configuration.

Data Interface 1 (E1 interface)

Comply with ITU G.703,G.704,G.706,G.823
Rate:N*64Kbps(N=1~32)
Code type:HDB3
Impedance:75ohm unbalanced & 120ohm balanced optional
Physical connector:BNC coaxical for unbalanced

RJ45 twisted pair for balanced

*Comply with ITU G.SHDSL standard 2-wire 2304Kbps MSDSL modem

*3.5km-9.7km transmitting distance in copper lines with 24AWG(0.5mm) and 26 AW (0.4mm)

*For data interface: V.35,V.24/RS232 and E1/G.703 optional, Rate support:N*64Kbps(1≤N≤36)

*Not need to be set rate of slave modem, It follows the rate of master modem automatically. So it can carry out the administration of the remote equipments in networks *Comprehensive LED indicators on front panel,convenient for the diagnosis of equipment working state

*High-powered TC-PAM line coding technique

*Low operating cost, simple manipulation, convenient use,

*Provide analog and digital loopback test

*Support Stand-Alone and Rock-Mount type optinal

*16-slots,elaborate cooling design and two redundant power supply

*-48V DC & 220V AC power supply optional
