100Mbps access,Gigabit combo uplink
◇ All series supports "100M Ethernet port + gigabit Ethernet /fiber port" combination, which enables users to flexibly build networking to meet the needs of various scenarios.
◇ Support non-blocking wire speed forwarding
◇ Support full duplex based on IEEE802.3x and half duplex based on backpressure .
Strong Business Processing Capability
◇ Support IEEE 802.1Q VLAN, users can flexibly divide VLAN according to needs, and support QinQ configuration.
◇ Support QoS, support port based, 802.1P based and DSCP based three priority modes and Equ, SP, WRR, SP+WRR four queue scheduling algorithms.
◇ ACL supports the filtering of data packets by configuring matching rules, processing operations and time permissions, and provides a flexible access control strategy.
◇ Support IGMP V1/V2 multicast protocol and support IGMP Snooping to meet the multi terminal HD video surveillance and video conference access requirements.
◇ Support STP/RSTP/MSTP production tree protocol, eliminates two layers of loops, and realizes link backup.
◇ Support static convergence and dynamic convergence, effectively increases link bandwidth, achieves load balancing, link backup, and improves link reliability.
Complete Safety Protection Mechanism
◇ Support 802.1X authentication, provide authentication function for LAN computer, and control the authorized status of controlled port according to the result of authentication.
◇ Support port isolation
◇ Support port broadcast storm suppression
◇ Support port +MAC binding, IP+MAC+ port binding function
The Equipment Is Stable And Reliable
◇ The host has low power consumption, no fan mute design, aluminum alloy metal shell, excellent heat dissipation, and ensure stable operation of products.
◇ The equipment fully meets the requirements of CE, FCC and RoHS safety regulations, and is safe and reliable.
◇ The user can easily understand the working status of the device through the power indicator (PWR), port status indicator (Link/Act), and POE operation indicator.
TECHNICAL SPECIFICATION
|

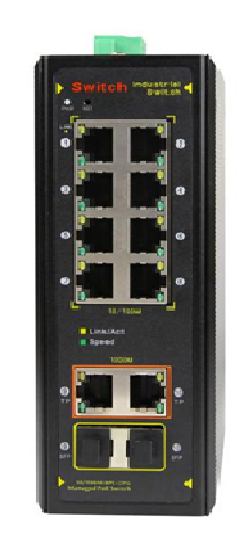

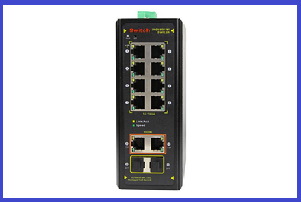

Model
|
BD-S1108FSI
|
|
Interface
|
8*10/100Base-TX （Data）
2*1000M TP/SFP Combo port (Data)
|
|
Network Protocol
|
IEEE802.3 10BASE-T； IEEE802.3i 10Base-T；
IEEE802.3u 100Base-TX；
IEEE802.3ab 1000Base-T；
IEEE802.3z 1000Base-LX/SX/CX
IEEE802.3x
|
|
Ethernet Port Feature
|
Port1-8 10/100Base-T(X),auto-sensing,
Port 9-10 10/100/1000Base-T,auto-sensing,full/half duplex MDI/MDI-X self-adaption
|
|
Fiber Port Feature
|
Gigabit SFP l fiber interface, default matching optical modules, need to buy separately, (optional single-mode/multi-mode, single fiber / dual fiber module, LC)
|
|
Forwarding Mode
|
Store and Forward(Full Wire Speed)
|
|
Switching Capacity
|
64Gbps
|
|
Forwarding
Rate@64byte
|
4.17Mpps
|
|
MAC Address Table
|
16K
|
|
Buffer Memory
|
4M
|
|
Twisted Pair Transmission
|
10BASE-T ： Cat3,4,5 UTP(≤100 meter)
100BASE-TX ： Cat5 or later UTP(≤100 meter)
1000BASE-T ： Cat5 or later UTP(≤100 meter)
|
|
Fiber cable
|
Multi-mode ：850nm 0～300M（10G） ，
Single-mode：1310nm 0～40KM ， 1550nm 0～120KM 。
|
|
Total PWR / Input Voltage
|
Standby：＜4W；Full load：＜15W
|
|
LED
|
Power LED indicator: PWR (green),Network LED indicator: Link/Act (yellow), Fiber port :F(green),Speed LED indicator: Speed(green)
|
|
Reset switch
|
Yes,support one key to restore factory settings
|
|
Power Supply
|
Default is not matched. If you need it, please see the accessory information in this specification.
|
|
Operation TEMP / Humidity
|
-40～+75°C；5%～90% RH Non condensing
|
|
Storage TEMP / Humidity
|
-40～+85°C；5%～95% RH Non condensing
|
|
Dimension（L*W*H）
|
165*145*54mm
|
|
Net /Gross Weight
|
＜1.2kg / ＜2.0kg
|
|
Installation Method
|
Desktop,Rail mounting
|
|
Lightning/Protection Rating
|
Port Lightning Protection 4KV 8/20us；
Protection Level IP40
IEC61000-4-2（ESD）±8kV Contact Discharge,±15kV Air Discharge
IEC61000-4-3（RS）10V/m（80~1000MHz）
IEC61000-4-4（EFT）Power Line: ±4kV; Data Line: ±2kV
IEC61000-4-5（Surge）Power Line,CM±4kV/DM±2kV；Data Line,±4kV
IEC61000-4-6 (Radio Frequency Conduction) 10V（150kHz~80MHz）IEC61000-4-8 (Power Frequency Magnetic Field)
100A/m Continued; 1000A/m,1s to 3s
IEC61000-4-9 (Pulsed Magnetic Field) 1000A/m
IEC61000-4-10 (Damping Oscillation) 30A/m ,1MHz
IEC61000-4-12/18 (SHOCKWAVE) CM 2.5kV, DM 1kV
IEC61000-4-16 (Common Mode Conduction) 30V Continued; 300V,1s
FCC Part 15/CISPR22（EN55022）Class A
IEC61000-6-2(General Industry standard)
|
|
Mechanical Properties
|
IEC60068-2-6 (anti vibration)
IEC60068-2-27 (anti shock)
IEC60068-2-32 (free fall)
|
|
Certification
|
3C；
CE mark, commercial；CE/LVD EN60950；
FCC Part 15 Class B；
RoHS；
|
|
Warranty
|
Ethernet switch 5 years，lifetime maintenance
|
|
Business features (only restricted management function models)
|
|
Interface
|
IEEE802.3x flow control (full duplex)
Broadcast storm suppression for port rate
support speed limit for incoming and offline message traffic, with a minimum particle size of 64Kbps.
Temperature protection setting
Energy saving configuration of port EEE Ethernet
|
|
VLAN
|
Support port based VLAN (4K), IEEE802.1q
Support protocol based VLAN
Support Access, Trunk, Hybrid three types of port configuration
Support QinQ configuration
|
|
Port Aggregation
|
Support LACP
Support static polymerization
Support the largest 8 aggregation groups, each aggregation group supports 8 ports.
|
|
Spanning Tree
|
STP（IEEE802.1d）
RSTP（IEEE802.1w）
MSTP（IEEE802.1s）
|
|
Multicast
|
Support IGMP Snooping V1/V2/V3 and support 64 multicast groups at most.
Support the user's quick departure mechanism
Support MLD Snooping V1/V2
Support multicast VLAN
|
|
Mirroring
|
Supports bidirectional traffic mirroring of basic ports
|
|
QoS
|
Diff-Serv QoS
Each port supports 8 output queues
Support 802.1p/DSCP priority mapping
Support queue scheduling mechanism (SP, WRR, SP+WRR)
priority tag Mark/Remark
|
|
ACL
|
Support L2 to L4 packet filtering function, can match the first 80 bytes of the message, provide based on the source MAC address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP/UDP port, TCP/UDP port range, VLAN and other definition ACL.
|
|
Safety Characteristics
|
Support port isolation
Support port broadcast storm suppression
Support port + MAC binding, IP + MAC + port binding function
|
|
DHCP
|
DHCP Client
DHCP Snooping
|
|
System Requirements
|
Web browser: Mozilla Firefox 2.5 or higher, Google browser chrome V42 or higher, Microsoft Internet Explorer10 or later;
5 types and above Ethernet cable;
TCP/ IP, network adapter and network operating system (such as Microsoft Windows, Linux or Mac OS X) are installed on computers in the network.
|
