INFORMATION

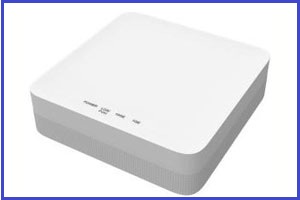

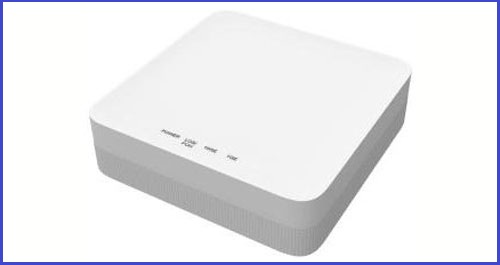

The BD-ONT-132XGS is one of the latest XGS-PON ONT passive optical network communication terminal. Compared with XG-PON (uplink rate is 2.5Gbps), XGSPON ONT has a significant improvement in uplink rate, which can provide users with high-speed and stable broadband access services and better meet customer needs. XGS-PON ONT provides 10/100/1000M/10GE RJ45 Interface, which can well meet FTTH High-Speed Access. 10G ONT is suitable for home and small business users.
XGSPON ONU Interface Function
- XGS-PON onu interface: SC/UPC/APC interface, XGSPON standard
- 10G ONT Ethernet interface: 10 MBPS / 100 MBPS / 1000 MBPS + 10G ONT, RJ - 45, IEEE802.3-2005 standard
- 1*DC power interface
XGSPON ONU Features
Hardware Parameters
| CPU Frequency |
1.3GHz ARM CA53 Dual-Core |
| Flash |
128MB NAND |
| Memory |
256MB DDR3 |
| LED |
POWER+PON/LOS+NET+LAN+10G |
| Port |
1*RJ45(10GE) |
| 1*RJ45(GE) |
| 1*Reset+1*Power |
| 1*SC/UPC (or SC/APC) |
| 1*DC |
| Size |
136mm*136mm*36mm(L*W*H) |
| Consumption |
≤8W |
Interface Parameters
| Ethernet Port |
Ethernet port-based VLAN tags and tag removal
VLAN transparent and mark
MAC address learning
10/100/1000Mbps Auto negotiation |
