INFORMATION
Overview

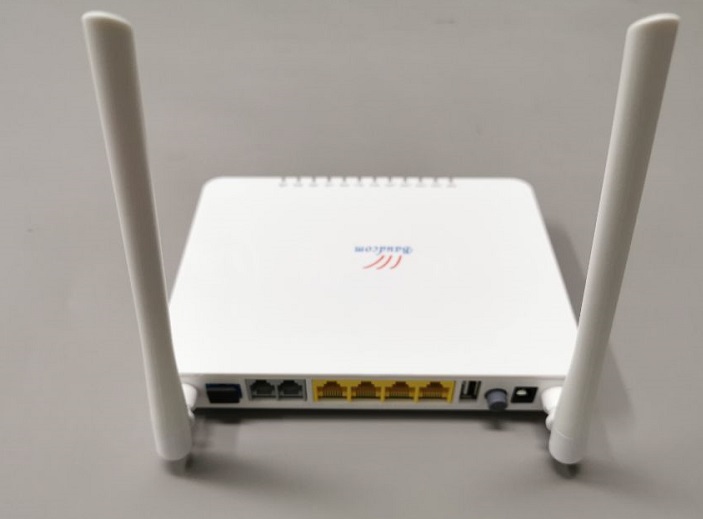

BD-ONT-424GWI-AC
GPON HGU ONT is one of the GPON optical network unit design to meet the
requirement of the broadband access network. It apply in FTTH/FTTO to provide
the data, voice and video service based on the GPON network.
GPON
is the latest generations of access network technology. ITU-T G.984 is the
standard protocol of GPON. The GPON standard differs from other PON standards
in that it achieves higher bandwidth and higher efficiency using larger,
variable-length packets. GPON offers efficient packaging of user traffic, with
frame segmentation allowing higher quality of service (QOS) for delay-sensitive
voice and video communications traffic.GPON networks provides the reliability
and performance expected for business services and provides an attractive way
to deliver residential services. GPON enables Fiber To The Home (FTTH)
deployments economically resulting to accelerated growth worldwide.
BD-ONT-424GWI-AC
provide two POTS ports, four GE auto-adapting Ethernet ports, one USB ports,
and 802.11a/b/g/n/ac Wi-Fi access. The BD-ONT-424GWI-AC
features high-performance forwarding capabilities to ensure excellent
experience with VoIP, Internet and HD video services. Therefore, the BD-ONT-424GWI-AC
provides a perfect terminal solution and future-oriented service supporting
capabilities for FTTH deployment. It has good third-party compatibility to work
with the third party OLT, such as Huawei/ZTE/Fiberhome/Alcatel-Lucent.
Feature:
n Full compatible with
ITU-T G.984
n Support two POTS
n Support four GE auto-adapting Ethernet
ports
n Support 802.11a/b/g/n/ac Wi-Fi access, while support
2.4GHz and 5GHz
n Support one USB interface
n Support OMCI and TR069 for
remote management
n Support Auto-negotiation and MDI/MDIX
n Support the Ethernet interface
rate, working mode and flows control configuration
n Support loopback at UNI
n Support packet filtering and
illegal message attack protection
n Support performance statistics
of Ethernet link
n Support VLAN tagged label
processing, traffic classification and packet filtering, STP/RSTP etc.
n Support DHCP Option60 reporting
the location information of the Ethernet interface
n Support PPPoE+ for accurate
subscribers identification
n Support H.248 and SIP protocol
n Support IGMP Snooping
n Support AES-128
n Support Dynamic Bandwidth Allocation (DBA)
Specification
|
Item
|
Parameter
|
|
Interface
|
Uplink Interface
|
1*GPON port, FSAN G.984.2 standard, Class B+
Downstream Data Rate：2.488Gbps
Upstream Data Rate：1.244Gbps
SC/PC single mode fiber
28dB Link loss and 20KM
distance with 1:128
|
|
POTS Port
|
2*RJ11 with 3REN
Max 1km distance
Balanced Ring, 50V RMS
|
|
Ethernet Interface
|
4*10/100/1000M auto-negotiation
Full/half duplex mode
RJ45 connector
Auto MDI/MDI-X
100m distance
|
|
USB interface
|
1*USB 2.0 interface
Transmission Rate: 480Mbps
|
|
Power Interface
|
12V DC Power supply
|
|
Performance Parameters
|
PON
Optical
Parameter
|
Wavelength: Tx 1310nm, Rx1490nm
Tx Optical Power: 0.5～5dBm
Rx Sensitivity: -28dBm
Saturation Optical Power: -8dBm
Connector Type: SC
Optical Fiber: 9/125ɥm single-mode fiber
|
|
Data Transmission
Parameter
|
PON Throughput: Downstream 2.488Gbit/s s;
Upstream 1.244Gbit/s
Ethernet: 1000Mbps
Packet Loss Ratio: <1*10E-12
latency: <1.5ms
|
|
Business Capability
|
Layer 2 wire speed
switching
Support VLAN TAG/UNTAG，VLAN translation
Support Port-based
speed limitation
Support Priority
classification
Support storm control
of broadcast
Support link detection
|
|
Network Management
|
Management Mode
|
Standard compliant OMCI interface as defined by ITU-T G.984.4
Support TR069 and WEB management
|
|
Management Function
|
Status monitor, Configuration management,
Alarm management, Log management
|
|
Physical Features
|
Shell
|
Plastic casing
|
|
Power
|
External 12VDC/1A power
supply adapter
Power consumption: <7W
|
|
Dimension and Weight
|
Item Dimension：170mm(L) x 130mm(W) x 30mm
(H)
Item weight：0.3kg
|
|
Environmental
Specifications
|
Operating temperature:
0 to 50oC
Storage temperature: -40 to 85oC
Operating humidity: 10% to 90%(Non-condensing)
Storage humidity: 10% to 90%(Non-condensing)
|
WIFI
Features
= Comply with IEEE 802.11a/b/g/n/ac
protocol standard, support 2.4GHz and 5GHz
= Fully compatible with IEEE 802.11n and
improved in performance
= Maximum ideal rate up to 867Mbps
= Along with 802.11n MIMO (Multiple-Input
Multiple-Output) technology, support 2*2 MIMO
= Support wider RF bandwidth, up to 80MHz
= Support higher 256-QAM modulation mode
= Support MIMO-OFDM encoding mode
= Support wireless security of 64/128 bit
WEP、802.1x、WPA and WPA2
Network
Application
Typical
Solution：FTTH, FTTO
Typical
Business：Internet, IPTV, Voice, VOD, Camera,
Wi-Fi
Figure: BD-ONT-424GWI-AC Application Diagram
Ordering information
Related Products
|
1GE+3FE+2POTs+WIFI GPON ONT
1GE+3FE+2POTS+WIFI is designed and manufactured by BAUDCOM, designed for fulfilling FTTH (Fiber To The Home) and triple play service demand of fixed network operators.
|
|

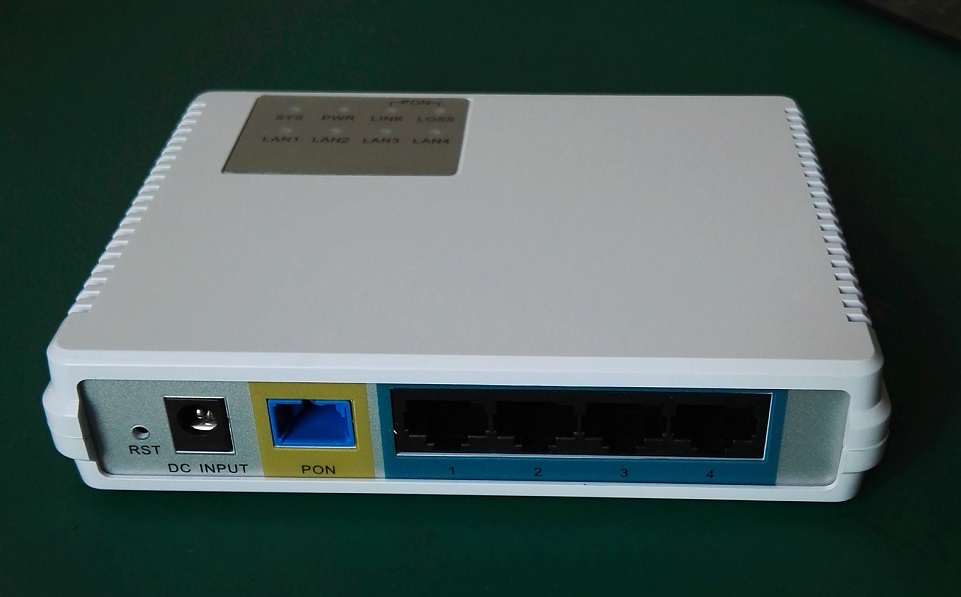

FTTX 4GE GPON ONT
