1GE+WIFI GPON ONU
BD-ONT-111W series is BAUDCOM’s for broadband access market based on the introduction of GPON technology passive optical network terminal products.

  Request price     Contact us

INFORMATION

Brief Views

BD-ONT-111W dual mode XPON ONU fully meet IEE802.3ah and CTC3.0 standard protocol. It has good third-party compatibility to work with the third party OLT, It supports 1Gbps transmission rate up and down and provides users with good QOS, flexible bandwidth allocation of Ethernet services and IP integrated service. The dual mode XPON ONU can support GPON and EPON protocol, can be used as GPON ONU or EPON ONU.

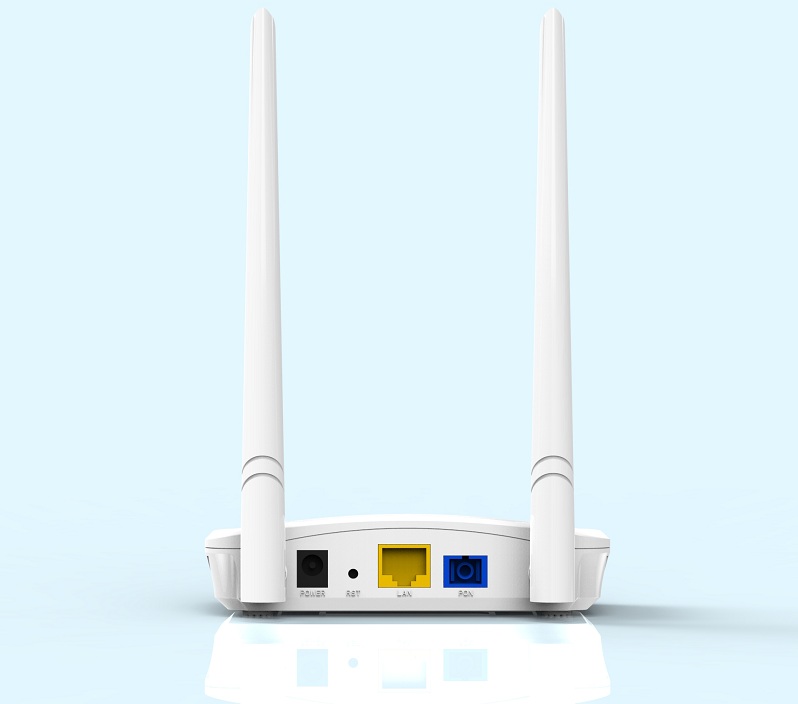

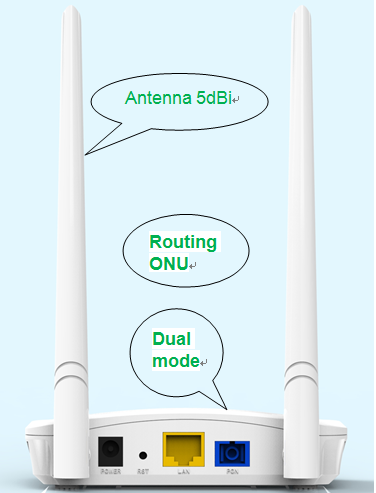

BD-ONT-111W series can integration wireless function with meet 802.11 n/b/g technical standards,  It has two external antenna, the wireless transmission rate up to 300Mbps. It has the characteristics of strong penetrating power and wide coverage. It can provide users with more efficient data transmission security.

The device shell adopts personalized ventilation design, simple, fashion, steady. High quality environmental protection material is impact resistant, high temperature resistant and good heat dissipation effect to providing users with a more secure Internet environment.

gpon epon onu xpon onu

Functional Feature

n  Support port-based rate limitation and bandwidth control;

n  In compliant with IEEE802.3ah Standard

n  Wi-Fi series meet 802.11 n/b/g technical standards

n  Up to 20KM transmission Distance

n  Support data encryption, group broadcasting, port Vlan separation ,etc.

n  Support Dynamic Bandwidth Allocation (DBA)

n  Support ONU auto-discovery/Link detection/remote upgrade of software;

n  Support port mode of VLAN configuration

n  Support power-off alarm function ,easy for link problem detection

n  Support broadcasting storm resistance function

n  Support port isolation between different ports

n  Support port flow control

n  Support ACL to configure data packet filter flexibly

n  Specialized design for system breakdown prevention to maintain stable system

n  Support software online upgrading

n  EMS network management based on SNMP ,convenient for maintenance

Specification

Function

Parameter

Internet connection

Bridge / Routing

LAN

Support Port rate limiting

Support Loop detection

Support Flow control

Support Storm control

VLAN

Support VLAN tag mode

Support VLAN transparent mode

Support VLAN trunk mode

Support VLAN translation mode

Support VLAN QinQ mode

Multicast

Support IGMPv1/v2/v3

Support IGMP Proxy and MLD Proxy

Support IGMP Snooping and MLD Snooping

L3

Support IPv4, IPv6 and IPv4/IPv6 dual stack

Support WAN DHCP/PPPOE/Static IP

Support Static Route

Support NAT

Support Port forwarding

Support DHCP server

Security

Support Firewall

Support Mac filter

Support ACL

Support URL filter

QoS

Support 4 queues

Support SP and WRR

Support 802.1P

Support DSCP

Wireless

Support 802.11b/g/n and Mixed mode

Support No-auth, WEP, WPA-PSK and WPA2-PSK function with AES, TKIP encryption

VoIP

Support SIP protocol

Support Voice coding: ITU-T G.711/G.723/G.726/G.729

Support Echo cancellation

Support high/low speed fax/Modem, bypass fax, and T38 fax

Support InBand / RFC2833/SIP INFO, MD5 authentication, call forward, call waiting, hot-line call, and all kinds of value-added voice service. Multi-party conferencing

Support Line testing according to GR-909

Management

Support ITUT984.x OMCI

Support WEB

Support Telnet

Support TR069

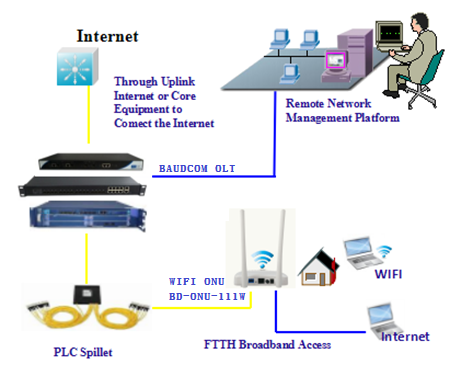

Network application

Typical SolutionFTTH, FTTO

Typical BusinessINTERNET,WIFI





Ordering information


Related Products

8FE GPON ONU

It apply in FTTH/FTTO to provide the data

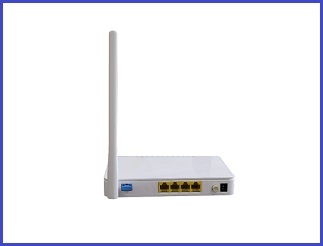

4FE WIFI GPON ONT
