Optical Laser Source
The series Laser source are advanced version of DLS series Laser Source, with better features and more functions.

  Request price     Contact us

INFORMATION

General Description:

The series Laser source are advanced version of DLS series Laser Source, with better features and more functions.

Auto-Wavelength Recognition

The optical laser source can transmit with a wavelength-identification digital encrypted protocol,enabling the BAUDCOM Power Meter to automatically use the proper calibration parameters. This feature reduces the need for communication between the two technicians and decreases the potential for error.

 Features:

Easy-to-use, straight forward operation

Eye-catching handheld package

LCD backlight for easy operation in darker environments

±3dB Adjustable by the user.

Rechargeable battery inside

850 & 1300 availale for multimode testing

Three-year warranty and recommended calibration interval.

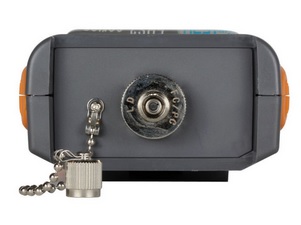

optical laser source top picture

    fiber laser soure bottom picture







 Specifications:



BD-POW-D02

BD-POW-D03

Output wavelength(nm)

1310&1550

850&1300

Emitter Type

LD

Output Stability

Short Term (15min.):   ±0.05dB @ 1300 / 1310 / 1550 nm

                                  ±0.1dB @ 850 nm

Long Term ( 8 hrs.) :  ±0.1dB @ 1300 / 1310 / 1550 nm;

                              ±0.2dB @ 850 nm



Central Wavelength

1310&1550±20nm

850&1300±20nm

Spectral Width

3 nm

Output Frequency(Hz)

270,1k,2k

Output power

-5dBm

Adjustable Range

±3dB, 0.1dB/step

Auto Power-off

Yes

Back-light

Yes

Operating Temperature

-10 to +50

Storage Temperature

-20 to +70

Power Supply

2pcs * Ni-MH AA(2500mAh)

Dimension(mm)

160L*76W45H

Net Weight

270g



Ordering Information:

Standard Accessories:

FC/PC, SC/PC, ST/PC interchangeable connector, Manual, Carrying Bag, and Battery, Worldwide compatible AC/DC adapter, Test Report

Optional Accessories:

Description

Ordering Number

Description

Ordering Number

FC/PC male-LC/PC female Adaptor

LC

 Carrying Box

PS



FC/PC male-LC/PC female Adaptor

LC

 Silicon Boot

 RP
