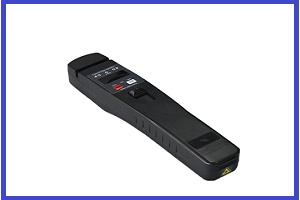

Fiber Identifier
The Live Fiber Identifier allows you to detect traffic and measure signals anywhere onsinglemode fibers without having to disconnect them .

  Request price     Contact us

INFORMATION

MODEL: BD-IF400

General Description:

The Live Fiber Identifier allows you to detect traffic and measure signals anywhere onsinglemode fibers without having to disconnect them . It also lets you check for signal presence before rerouting or maintenance , perform continuity tests and verify cable labeling. Based on non-destructive macrobending technology,the fiber identifier doesn't disrupt traffic,damage or overstress the fiber,enabling efficient,accurate and reliable data acquisition



Features:

Indicate the signal directions in fiber;

Indicate the signal presence or absence(Live or dark fiber);

Detect tones 270Hz, 1kHz and 2kHz to verify the modulated signal type;

Suitable for 0.25, 0.9, 2.0, 3.0mm fiber,and no need to replace the clamp block,

more convenient than others

Build in VFL 1mW or 10mW optional

Battery low indication;

Powered by 2 units of 1.5V AA batteries;

One-year warranty and Three-year recommended calibration interval



Specification

Wavelength Range

800 to 1700nm (SM)

Recognizable signal type*

CW, 2kHz, 1kHz, 270Hz±10%

Detector Type

InGaAs 2pcs

Fiber Type

0.9, 0.25, 2.0, 3.0 mm fiber

Sensitivity

+10 ~ -50dBm

Accuracy *

+10dB to -30 dBm (Continuous Wave) /+10dB to -25 dBm (Modulated Signal)

LED Indicator

Signal direction; signal frequency (2kHz/1kHz/270Hz); low battery

Power Supply

AA * 2

* at 20±3,indoor, 1550nm wavelength, 0.9mm fiber, with white coat, 270Hz, error < 5

* 0.25, 2.0, 3.0mm fiber, the performance at continuous wave will be lower

* 1KHz, 2KHz, the performance at modulated signal will be lower

* at 1310nm wavelength, the performance will be lower



GENERAL SPECIFICATIONS

Size(H*W*D)

230mm * 45mm * 45mm

Weight

About 200g

Storage Temperature

-20 -- +60 , < 90%RH

Operating Temperature

-10 -- +50 , < 90%RH

ACCESSORIES

Standard

User's manual*1

Certificate of Calibration*1

Carrying bag*1



Ordering information
