64-Bit Multi-Core Flow-Control Gateway Routers
64-Bit Multi-Core Flow-Control Gateway Routers

  Request price     Contact us

INFORMATION

Overview

BAUDCOM 7300 gateway series are 64-bit MIPS multi-core gateways developed by Shanghai Baudcom Communication Device Co., Ltd. As a new generation of cost-effective and comprehensive flow-control gateways, they have private ASIC switching chips and are used at advanced cases for large or medium enterprises, broadband communities, campus networks, or carriers.

BD-R7300 gateways are strong in data processing, flexible in a variety of mainstream bandwidth access environments and various in providing sound bandwidth distribution solutions, all of which are means of effective utilization of bandwidth resources. In addition, these products provide network behavior management, P2P control, VPN networking, firewall, ARP cheat prevention and vicious attack prevention.

These gateways integrate multiline, NAT sharing, security and elastic rate limit, so they are to users an all-in-one comprehensive solution with high performance, high reliability and high performance-to-cost ratio.

Main Characteristics

   ●   High reliability and stability

After over a decade years of research experience in the data communication network field and studious research on broadband user’s requirements, BAUDCOM broadband solutions have won customers’ trust in all respects, especially in hardware or software design and in systematic strong ability, and these routers can run reliably for a long time in harsh environments such as high temperature, poor ventilation and bad grounding.

   ●   Strong data-processing capability

BD-R7300 adopts the 64-bit MIPS multi-core processor and the private ASIC switching chip, so it has high throughput and a high performance-to-cost ratio.   They secure the reliable and rapid operation of such kernel functional modules as NAT, VPN, P2P identification and control, and firewall in an environment of multi-user and large flow.

   ●   Flexible multi-WAN access

A maximum of 8 WAN ports can be used for networking; the access modes such as Ethernet, FTTB optical fiber, ADSL and cable are supported; the multiline policies such as “bandwidth nesting”, “intelligent routing” and “master/standby” are supported.

   ●   Versified flexible flow-control policies

BAUDCOM flow-control gateways have adopted the advanced 7-layer characteristic code identification technology and various policy databases, so they can be used in the following application cases such as HTTP, MAIL, database, P2P download, VOD and VoIP. According to customers’ requirements, they can limit applications with high bandwidth but low priority such as P2P and VOD, and first process those with the high priority and low bandwidth.

At the same time elastic and effective bandwidth distribution solutions can be set flexibly according to the customer quantity: when free, the network will increase the bandwidth for each customer automatically; when busy, the bandwidth will surely be averaged, not being over-preoccupied. The assisting strategies (i.e. big-flow host limitation mechanism, flow outburst factors and optional user punishment/limitation) bring various and feasible methods for network management.

Two BAUDCOM bandwidth distribution and control policies integrate with each other, greatly improving the bandwidth usage. In case of large flow, BD-R7300 gateways can guarantee those prior services in enterprise networks or cyberbars. Users can be provided an orderly, effective and secure network environment by these gateway series.



Various behavior management policies

They have the following functions:

l       Identify and control common IM software such as QQ and MSN based on the application layer;

l       Support the white list;

l       Identify frequent P2P programs based on the application layer;

l       Block relevant services and conducting rate limit;

l       Shield the stock, entertainment or purchase website based on the policy database;

l       Update the policy database freely online.



Multiple anti-attack policies

BD-R7300 series is strong in preventing attacks. It can make a correct statistics and detailed analysis on all types of packets such as ARP, IP, ICMP, TCP and UDP, so the attacks can be automatically prevented once they are found and the alarm information can also be provided for rapid fault locating and removing.

For ARP cheat, BD-R7300 gateways provide IP-to-MAC binding, ARP-to-SCAN technology and free ARP and other mechanisms to secure the intranet; If working with BAUDCOM private switching products, these routers can be armed with DHCP-Snooping. In this way, ARP cheat cannot hide itself and it is 100% sure that ARP cheat can be detected and prevented.



Perfect log management

BAUDCOM secure flow-control gateways can provide varies kinds of log information, including URL filtration, internet surfing recording and query, and vicious attack records. Hence, customers can further know the detailed running status of the whole network and locate and solve network faults.



All-around VPN functions

BD-R7300 series supports VPN protocols such as L2TP, PPTP, GRE, IPIP and IPSec, and provides encryption algorithms, so that an overall solution can be provided to the construction of the remote office, the mobile office and the virtual private network; they also have the hardware encryption unit in their CPUs and hence have a strong ability of encryption.



User-friendly Web page

A simple and clear Web graphic interface is provided for configuration, so you can easily operate it even you are not professional.

Most of all, all kinds of configuration navigation help you to master all kinds of core functions.



Life-long free software upgrade

The IOS system of network products, the supplementary 7-layer characteristic database and the security policy database, all of which are provided by BAUDCOM, have free download/upgrade services.

Technical Parameters

Model BD-R7304 BD-R7308

Interface combination

Ports One Console port

4 GE Combo ports that support two bypass groups

1 USB expended port

One Console port

8 GE Combo ports that support two bypass groups

1 USB expended port

MAC cloning Supporting MAC cloning in both the intranet and the public network
Port mirror Supporting 1-to-1 or multi-to-1 port mirroring
Access mode ADSL, optical fiber, Ethernet, cable

Hardware configuration

Processor 64-bit multi-core MIPS processor (12 cores) 64-bit multi-core MIPS processor (12 cores)
DRAM 2GB, which can be expanded to 8GB 2GB, which can be expanded to 8GB
FLASH 16M, which can be expanded to 32M 16M, which can be expanded to 32M
CF 1GB, which can be expanded to 4GB 1GB, which can be expanded to 4GB
Suggested number of hosts 3000 to 4000 concurrent hosts 5000 to 6000 concurrent hosts

Physical Characters

Size 442mm×207mm×66mm
Temperature/Humidity Temperature: 0℃-40℃; humidity: 10%-85%, no condensation
Power source’s characteristics Voltage: 170~264VAC; Curent:10MAVoltage: -36~-72V
Current: 1A
Maximum power consumption 90W

Routing and backup

Routing protocol Supporting direct-through routes, static routes and default routes
Policy routing Supporting flexible application schedule policies
Multi-WAN policy Supporting bandwidth cascading, intelligent path choosing, primary and secondary WANs, etc.
Link backup Supporting auto switchover of multiple WANs
Line monitor Supporting the ICMP or DNS keepalive mechanism

Network function

Address transfer Supporting the dynamic/static NAT and PAT
Virtual server Supporting static port mapping, special mapping (SNAT+DNAT) and the DMZ host
NAT connections Supporting to limit the total number of connections of the whole machine or of each user

Supporting to limit the TCP and UDP connections respectively

UPnP Supporting UPnP
DNS Supporting DNS Client/Proxy

Supporting the peanuthull DDNS client

DHCP Supporting DHCP server/client/relay
PPPoE Supporting the PPPoE server and conducting IP-to-MAC binding, account freezing and speed limitation

Supporting the PPPoE client

Page push Supporting electronic whiteboard to turn over the HTTP pages and also supporting content customization
NTP Supporting the SNTP network clock protocol

Supporting policy management based on period and single time segment

QoS limitation

7-layer filtration Basing on the characteristic code on the application layer, identifying and controlling P2P download, VoD, HTTP and Email, and limiting or guaranteeing the bandwidth
Flexible speed limitation Automatically judging whether the network is idle or busy and conducting flexible speed limitation according to different standards
Grouping speed limitation Making user groups and designating different policies of speed limitation
Dynamic distribution Automatically calculating the threshold of speed limitation
Multi-WAN Limiting the speed of each WAN
P2P speed limitation Supporting the identification of the P2P download or the VoD on the application layer and the corresponding rate limit without getting normal services affected
User Management Optional control policies such as user punishment, limitation and outburst flows

Behavior management

Real-time communication Supporting to block the IM software like QQ and MSN by one key
P2P application Identifying and controlling ten kinds of P2P programs such as BT, Thunder, PPStream and eMule
Website management Supporting to block the entertainment, share and shopping websites by one key

Supporting URL filtration and keyword filtration and so totally controlling user’s access

Priority service Supporting to first process company’s Emails, hot network games, common OA  databases and self-defined flows (based on characteristic identification according to the application layer)
Blacklist and White List Supporting the blacklist and the white List so as to facilitate user’s control
Policy upgrade Supporting free and online upgrade of the behavior management database

Network security

Firewall Supporting the ACL firewall and blocking many frequent viruses on the basis of IP and port
DMZ port Supporting to redefine the WAN1 port as the DMZ port and implementing safe networking
DoS attack prevention Supporting to prevent SYN Flooding, UDP flooding, ICMP flooding and ARP flooding in the intranet and the public network
Preventing port or ARP scanning
ARP security Supporting static ARP binding, dynamic ARP binding and free regular ARP transmission

Supporting automatic monitoring and alarming of ARP cheat

Supporting in-depth IMP filtration

VPN Supporting multiple VPN protocols ( L2TP, PPTP, GRE, IPIP and IPSec) as well as protocol nesting

Management

Graphic interface Supporting Web interface management and providing fast wizard

Supporting BIOS-based simple Web page and emergency recovery at incorrect operations

Network management protocols Supporting SNMP V1/V2/V3

Supporting syslog record and management

Fault diagnosis Supporting the detection mode of the ICMP packets
Account management Supporting the hierarchical management of account’s rights so as to fully secure the network
State monitoring Supporting an overall and real-time display of the states of the port, system and user

Typical Application

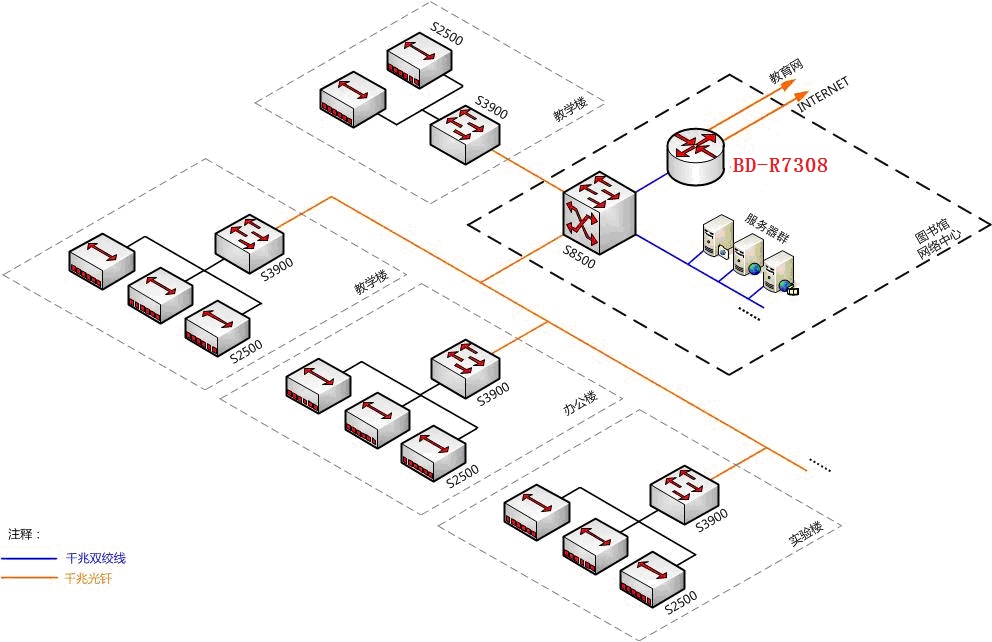

Application in the egress engine of a large-scale campus network



BD-R7300 NAT flow-control gateway series has 8 optical/electric multiplex interfaces, supporting load balance and multiple concurrent lines of communication carriers such as China Telecom, China Netcom and China Education Network.

BD-R7300 gateway series has a super data forwarding capability and a capability of creating and maintaining connections, so this series is the best solution to the large-flux network environment such as the egress of Education Network. BD-R7300 series has a creation speed of 300,000 connections per second, and a capability of stably maintaining large-flux connections, so they can provide stable support for those outburst overload network access requirements.

Moreover, BD-R7300 series also supports the elastic rate limit of user’s bandwidth, the 7-layer application identification, the control of priority and service forbidding, DDoS attack prevention, user access record, event logs, etc.
