INFORMATION
1. PRODUCT OVERVIEW

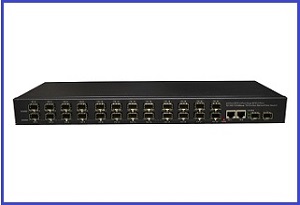

The BD-S2402M optical fiber switch provides 24 optical fibers ports and 2 Gigabit TP/SFP ports.The 24ports fiber switch is one of the best optical access solution for fiber to building and Home,which is based on cost-effective and stable performance.base on cost-effective and stable performance. The BD-S2402M is equipped with web interface and can be programmed for basic switch management functions such as port configuration, VLAN, port mirroring, Qos, bandwidth control, IGMP snooping and misc configuration.
2. Feature
2.1 Physical ports
24ports 100Base-FX optical fibers
2ports Gigabit TP Combo SFP
2.2 Management Features
- Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3z and IEEE 802.3ab Gigabit Ethernet standard
- Each Gigabit TP ports support auto-negotiation-10/20, 100/200, 1000/2000Mbps supported, Auto-MDI/MDI-X detection on each RJ-45 port
- Prevents packet loss with back pressure (Half-Duplex) and 802.3x
- PAUSE frame Flow Control (Full-Duplex)
- High performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
4K MAC address table, automatic source address learning and ageing
- Port-Based VLAN and IEEE 802.1Q Tagged VLAN
- Static Port Trunk
- IGMP snooping v1 and v2 for Multi-media application
- Broadcast storm filter
- Port mirroring allows monitoring of the traffic across any port in real time
2.3 Quality of Service (QoS)
- Supports QoS and bandwidth control on each port
- IEEE 802.1p class of service ; support Strict and
- TCP/UDP Port Based QoS
2.4 Security
- MAC Address Filter
- IP Address Filter
- TCP/UDP Filter
2.5 Management
- Web interface for Switch basic management and
- LED indicators for easy network diagnose
- Firmware upgrade by HTTP file transfer protocol through Ethernet network
- Reset Button for system reset and reset to factory default
- EMI standards comply with FCC, CE class A
DIMENSIONS
19" width,1U high,rack mountable
ENVIRONMENT REQUIREMENT
working temperature: 0C~ 50C
store temperature: -30C ~ 70 C
relative humidity: 95%(without coagulation)
Power
Adapting module power, voltage range can be wide, with strong ant-jamming function.
With good insulation, stable working status is available
power: -48V type, input voltage: -36V~-72V
power: 220V type, input voltage: 165V~265V
FAQ
Q: Can the 24ports ethernet switch spport QinQ function?
A: The ethernet switch (BD-S2402M) do not support QinQ. If you need QinQ function,you can choose another model BD-S2228F(24ports SFP Fiber Ethernet Switch)
