► Simple to install, plug and play

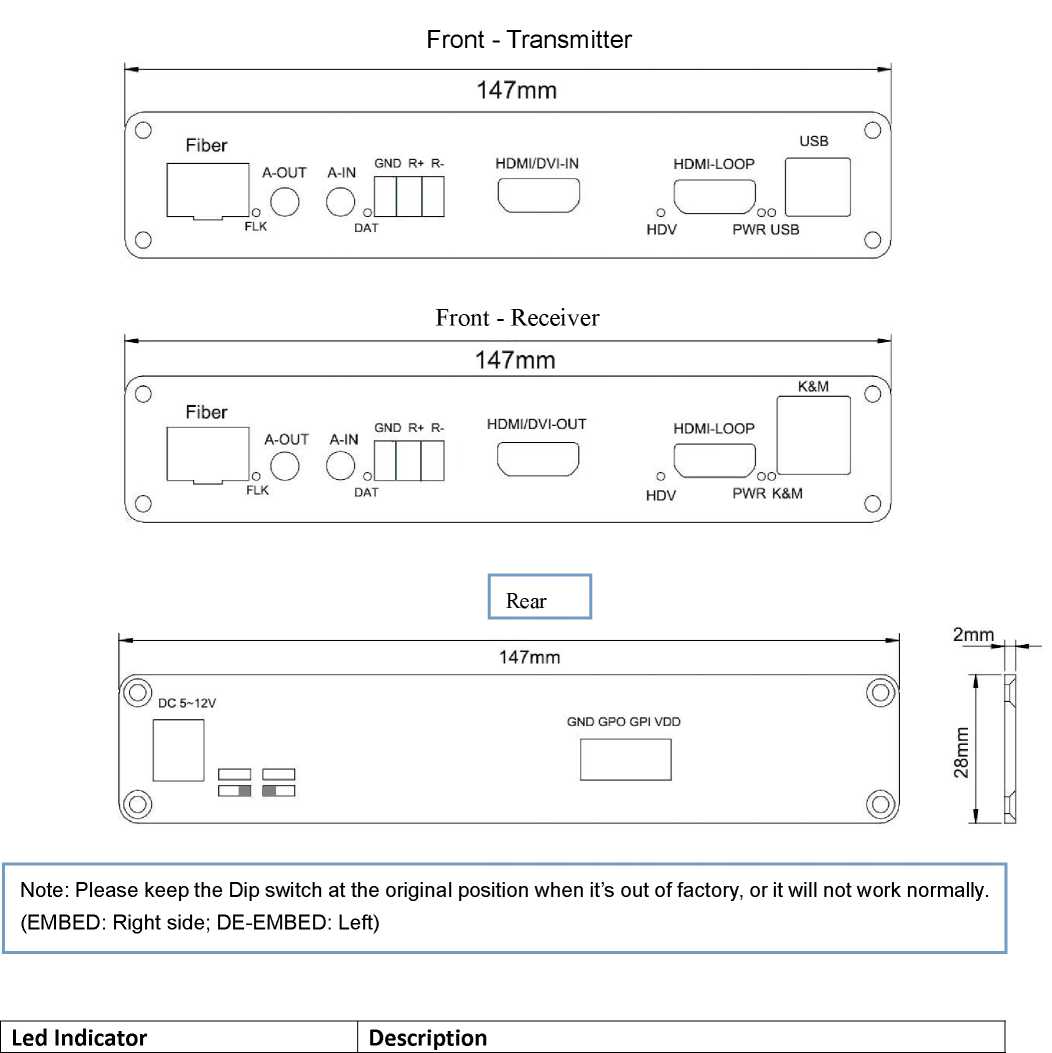

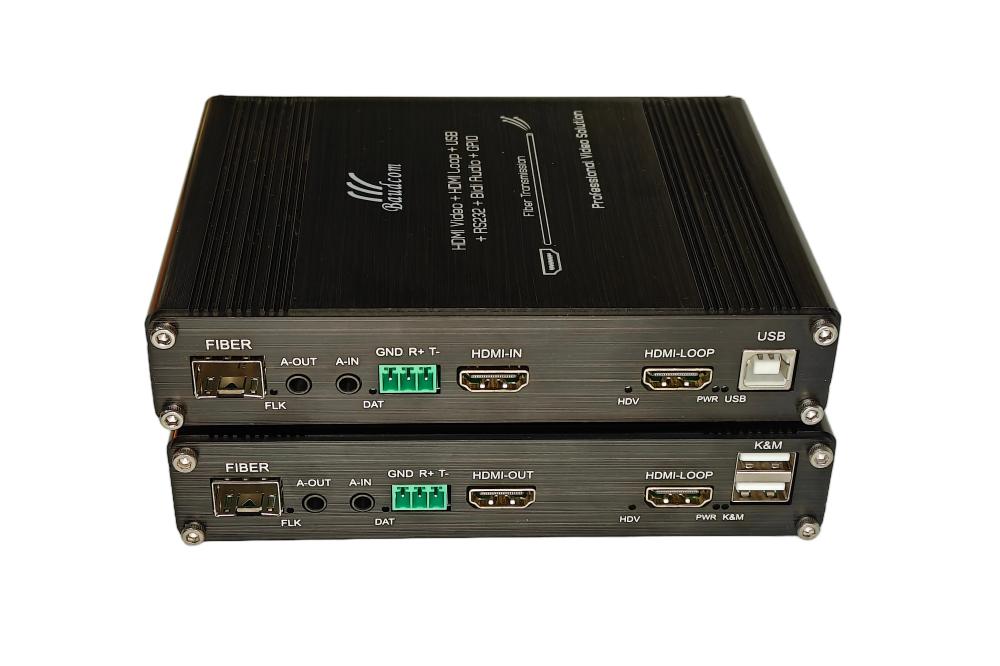

HDV
|
HDMI Video signal connection indicator
|
FLK
|
Fiber Connection status
|
DAT
|
RS232 Data Transmission status
|
USB
|
USB Connection ( To PC)
|
K&M
|
USB Keyboard and Mouse Connection
|
PWR
|
Power indicator
|

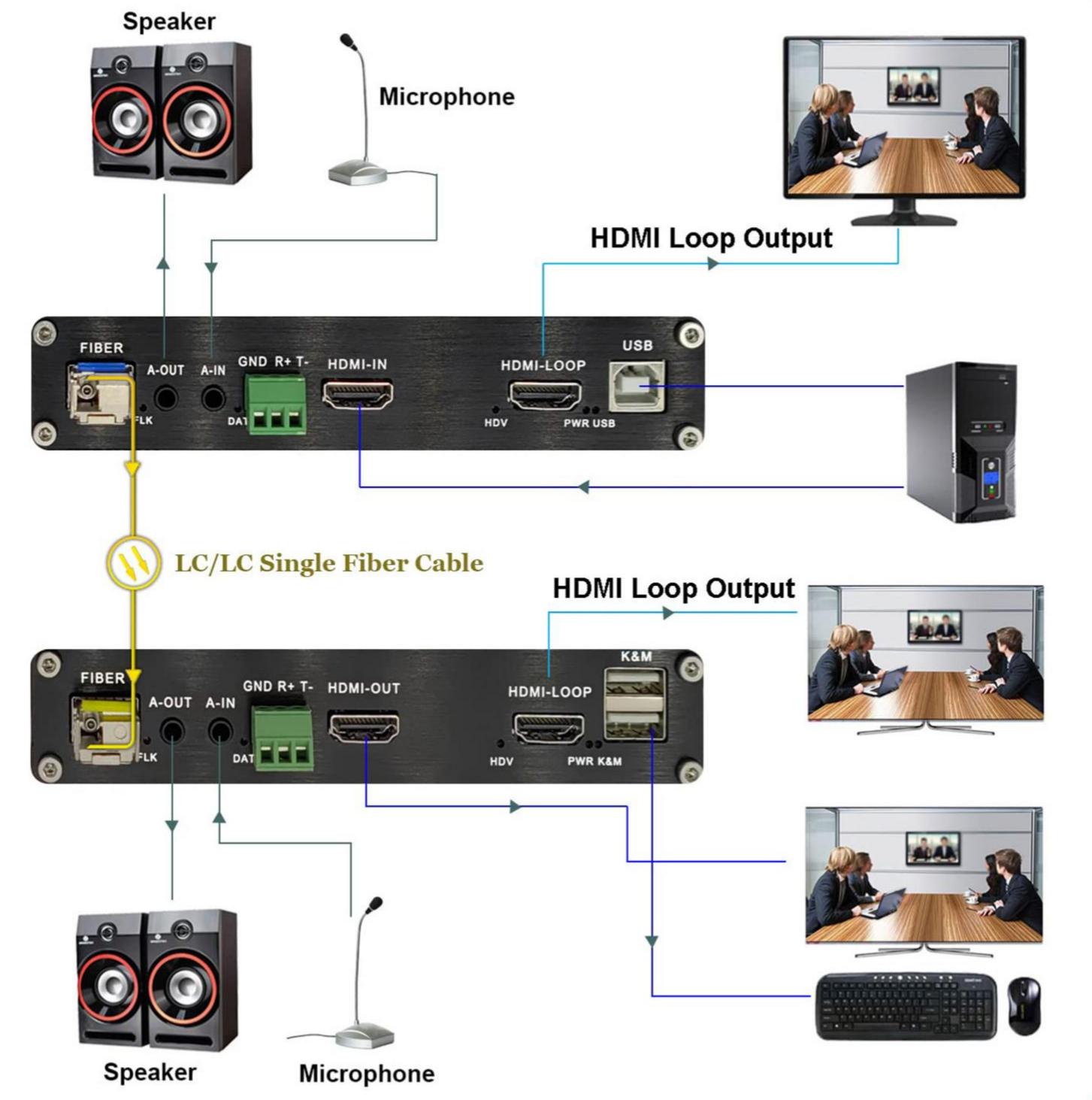

Installation
1. The HDMI signal source access HDMI Optical Fiber Transmitter
2. The HDMI Optical Fiber receiver connected to a display device (such as high-definition TV, splicing screen, etc.),
3. The LC interface optical fiber line connects the Transmitter and the receiver SFP optical fiber interface module,
4. The Transmitter and the receiver connected to the power, when the lamp lights up normally, normal operation of system.
Parameter
|
Description
|
Video
|
Standards
|
HDMI V1.3
|
|
Maximum pixel clock
|
165MHz
|
|
Maximum data rate
|
2.97Gbps
|
|
Resolution
|
1920*1080@60Hz 1920*1080@50Hz
1920*1080@30Hz 1920*1080@25Hz
1920*1080@24Hz
1080I@60Hz 1080I@50Hz
1280*720@60Hz 1280*720@50Hz
|
|
Connector
|
HDMI
|
|
Impedance
|
100Ω
|
Audio
|
Interface
|
3.5mm earphone seat
|
|
Signal type
|
Stereo
|
K/M
|
Interface
|
To PC: MINI-USB
To keyboard and mouse: USB-A
|
GPIO
|
Interface
|
Industrial terminal
|
RS232
|
Interface
|
Industrial terminal
|
|
Signal direction
|
Unidirectional
|
|
Baud rate
|
Self-adaptive, Max: 460,800bps
|
|
Data bits
|
8
|
Optical fiber
|
Interface
|
LC connector
|
|
Fiber type
|
Single-mode single fiber
|
|
Wavelength
|
Single-mode 1310nm
|
|
Interface bandwidth
|
3Gbps
|
|
Transmission distance
|
standard 20km
|
Other
|
Power supply
|
The power adapter: DC 12V/1A
|
|
Power dissipation
|
MAX 6W
|
|
Temperature
|
Operating: -5℃ ~ +70℃
|
|
Humidity
|
Operating: 5% ~ 90%
|
|
Dimension (LxWxH)
|
168*115*28mm
|
|
The warranty
|
1-year warranty
|
Package list
• HDMI KVM Optical Fiber Transmitter 1 PCS
• HDMI KVM Optical Fiber Receiver 1 PCS
• SFP Optic Module 2 PCS
• USB Cable 1 PCS
• Power Adapter 2 PCS
• User Manual 1 PCS
