INFORMATION
Description
BAUDCOM
filter optical receiver is an FTTH CATV+SAT-IF high-performance optical
transmission equipment, suitable for cable TV and satellite live TV
transmission on the same network. It is used in a triple play network where end
customer only needs SAT-IF+CATV service. This machine selects the high
bandwidth, high sensitivity photoelectric cell, and low noise matching circuit,
all Shen gallium IC amplifier, Using Ultra-low Optical Power 1540~1565nm
Channel receiving Technology, light receiving range - 15 ~ + 2dBm, electric AGC

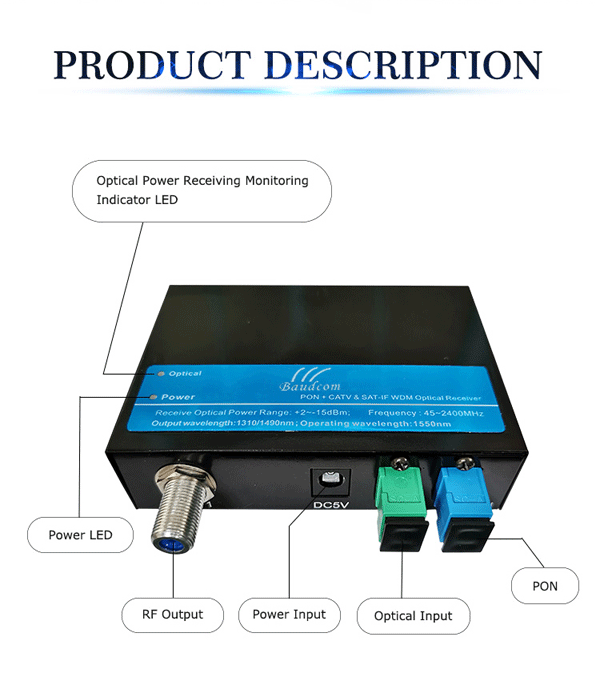

- 8 ~ 0dBm/RF80dBuv constant output. For the convenience of users, the machine
is also equipped with working power and light power receiving and monitoring
LED indicator light on the panel.

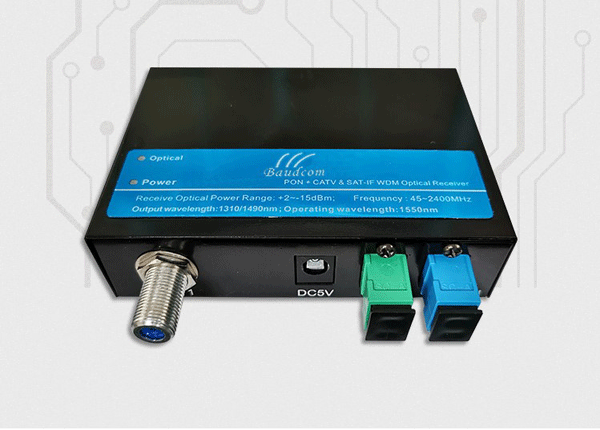

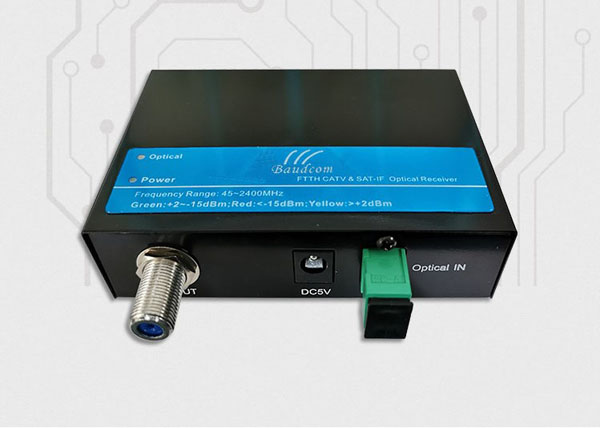

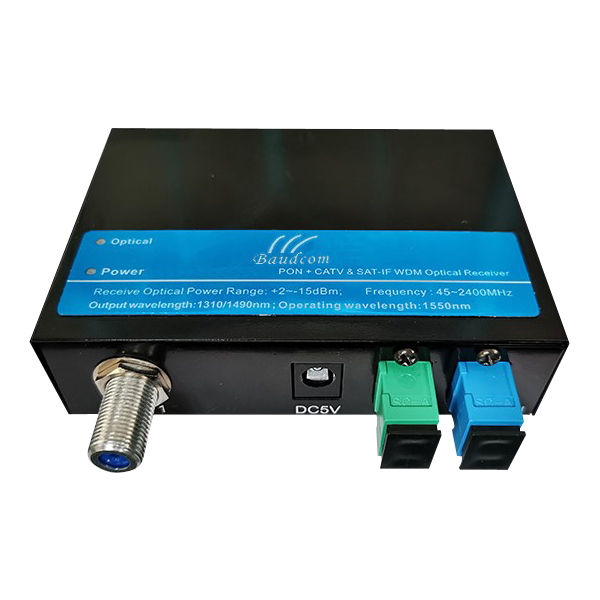

BD-OR-SAT-D
BD-OR-SAT-F
Technical parameter
|
Item
|
Description
|
Remark
|
|
Input Optical Power Range
|
-15~+2dBm
|
|
|
AGC：-8~0dBm
|
|
|
Responsivity
|
≥0.9A/W
|
|
|
Optical Return Loss
|
≥45dB
|
SC/APC
|
|
Receive Wavelength
|
1540~1565nm
|
|
|
Frequency Range
|
45-2150MHz
|
CATV &SAT-IF
|
|
CATV
|
Flatness
|
±1.0dB(47~1000MHz)
|
|
|
Output Level
|
≥80dBμV
|
-8~0dBm/AGC
|
|
CNR/CSO/CTB
|
≥50dB/≥60dB/≥65dB
|
-1dBm input power
|
|
MER/BER
|
≥32(64QAM)/≤1×10-4
|
-12dBm
|
|
Return Loss
|
≥14dB(47~1000MHZ)
|
Output Impedance/75Ω
|
|
AGC Stability
|
±1dB(-8~0dBm)
|
|
|
SAT
-
IF
|
Flatness
|
±1.5dB(1000~2400MHz)
|
It varies with the input level.
|
|
Output Level
|
≥80dBuv
|
-8~0dBm/AGC
|
|
Return Loss
|
≥10dB(1000~2150MHz)
|
Output Impedance/75Ω
|
|
AGC Stability
|
±1dB(-8~0dBm)
|
|
|
RF Connector
|
F-female
|
|
|
Optical Connector
|
SC/APC
|
|
|
Power Supply
|
5V/500mA
|
outlay AC90～255V→DC5V
|
|
Power Consumption
|
<2W
|
|
Working / storage temperature
|
-5~45℃/-25~75℃
|
5～90（Non-condensation）
|
|
Dimensions
|
92×80×25mm
|
Iron box structure
|
