ISDB-T Set-Top box: ISDB-T Set-Top box

INFORMATION

Model: B02S-ISDBT

Hardware

CPU Mstar7805/Sunplus 1508A

Memory 32X16Mbit DDR2 Frequency1066

Flash 32M bytes

Demodulator Type ISDB SOC Chip Set

TUNER Rafael R836

Front Panel USB 2.0 Embedded One Host,

4-digit LED display on front panel

red LED Standby,green LED Lock

Panel KEY, POWER, CH+ ,CH-

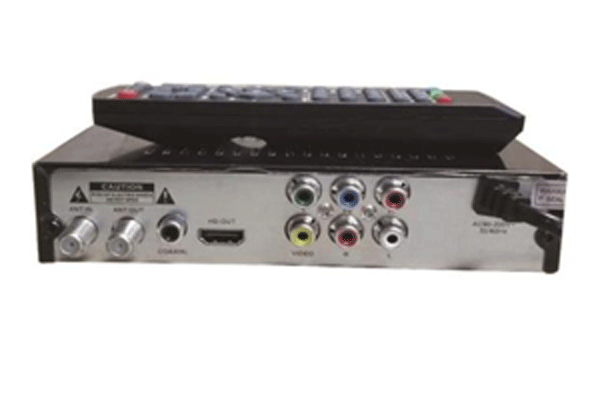

Rear Panel Tuner RF input connector EC-type IEC169-2 Female

Tuner RF Loop through connector IEC-type IEC169-24 Male

HD V1.3/V1.4

RCA CVBS AL AR Connector x1

Ypbpr RCAx1

Coaxial x1

Power AC100~240V 50Hz/60Hz

Demodulation

Terrisal Receiver Standard ISDB-T broadcast (1, 3, 13 segment)

Input RF Frequency VHF:177.143~213.143 MHz:UHF 473.143~803.143MHz.

Bandwidth 6MHz

Demodulatio QPSK / 16QAM / 64QAM/QPSK or DQPSK

FEC 1/ 2, 2/3, 3/4, 5/6, 7/8 Automatic

Guard Interval 1/4,1/8,1/16,1/32

FFT Mode 2K/ 8K/32K

Input level -83 - -5dBm

Sortware Features

•Used for any ISDB-T countries like Brazil, Peru, Argentina,Chile,Venezuela,Philippines.Ecuador

•Supports all ISDB-T broadcast (1, 3, 13 segment), MPEG-2/MPEG-4 AVC/H.264 HD/SD Video , DiVX compliant

•Support 3D interface

•Support teletext/subtitle/muti-language

•Supported 7-Day EPG function, VBI Teletext

•AUTO, 16:9 Pillar Box, 16:9 Pan G Scan, 4:3 Letter Box, 4:3 Pan G Scan, 4:3 Full, 16:9 Wide Screen

•USB 2.0 for PVR,TIMESHIFT,software upgrade and media files playback

•Video output resolution: 480i/576i/480p/576p/720p/1080i/1080P

Decoder

Video Decoder Compliant with: MPEG-4 part10/MPEG-2 ISO/IEC 13818

MPEG-4 Simple/Main/Advanced Profile@LEVEL3(10Mbps)

MPEG-2 Main Profile# Main Level(15Mbps)

H.264 MP#L3(10Mbps).H.264 HP L4.1(25Mbps)

Audio Decoder MPEG-1, MPEG-2 (Layer I/II), MP3, AC-3 (Do-by Digital), AAC-LC, WMA

E-AC-3 (Do-by Digital Plus) decoding HE-AAC 5.1 multi-chhannel decoding

Powerful Multimedia Features

MediaCodec avi. mpg, .dat, .vob, .div, .mov, .mkv, .jpeg, .ts etc

Audio Codec WMA,MP3,AAC (.wma,.mp3,m4a)

Photo Codec JPEG, BMP, PNG

License

Optional DTS, Do-by Digital, Do-by Digital Plus, RM/RMVB, Divx License

Accessories

Accessories gift box
