INFORMATION
Features:.
l Compliant with IEEE802.3z Gigabit Ethernet
l 1310nm FP laser and 1490nm
PIN photo detector
l Industry
standard small form pluggable (SFP) package
l Simplex
SC connector
l Compliant
with SFP MSA and SFF-8472
l Digital Diagnostic Monitoring(DDM):Internal Calibration or External
Calibration
l Differential
LVPECL inputs and outputs
l Single
power supply 3.3V
l TTL
signal detect indicator
l Hot
Pluggable
l Class
1 laser product complies with EN 60825-1
Description:
BDTRP439S1SN/D-20 Small Form Factor Pluggable (SFP) transceivers are compatible with the Small
Form Factor Pluggable Multi-Sourcing Agreement (MSA). The SFP transceiver supports dual data-rate of 1.25Gbps
and from 20km transmission distance with SMF. They simultaneously comply with the standards IEEE
Std 802.3 and IEEE 802.3u. The SFP module can be compatible with other brand switch
devices like Cisco,Huawei etc.The SFP module has the function of AGC (Automatic
Gain control without attenuator).
Block Diagram of Transceiver
Application:
- Switch to switch interface
- High speed I/O for file servers .
- Bus extension applications
Transmitter Electro-optical Characteristics
Vcc = 3.1 V
to 3.5 V, TC =0℃ to +70 ℃
|
PARAMETER
|
SYMBOL
|
MIN
|
TYP.
|
MAX
|
UNITS
|
NOTE
|
|
Output
Optical Power
9/125 μm fiber
|
Pout
|
-9
|
---
|
-3
|
dBm
|
Average
|
|
Extinction
Ratio
|
ER
|
9
|
---
|
---
|
dB
|
|
|
Center
Wavelength
|
λC
|
1260
|
1310
|
1360
|
nm
|
|
|
Spectral
Width (RMS)
|
Δλ
|
---
|
---
|
2.5
|
nm
|
|
|
Rise/Fall
Time, (20−80%)
|
Tr, f
|
---
|
---
|
260
|
ps
|
|
|
Relative
Intensity Noise
|
RIN
|
---
|
---
|
-120
|
dB/Hz
|
|
|
Total
Jitter
|
TJ
|
---
|
---
|
227
|
ps
|
|
|
Output Eye
|
Compliant with IEEE802.3z
|
|
Max. Pout
TX-DISABLE Asserted
|
POFF
|
---
|
---
|
-45
|
dBm
|
|
|
Differential
Input Voltage
|
VDIFF
|
0.4
|
---
|
2.0
|
V
|
|
Receiver Electro-optical Characteristics
Vcc = 3.1 V to 3.5 V, TC =0℃ to +70 ℃
|
PARAMETER
|
SYMBOL
|
MIN
|
TYP.
|
MAX
|
UNITS
|
NOTE
|
|
Optical
Input Power-maximum
|
PIN
|
0
|
---
|
---
|
dBm
|
BER < 10−12
|
|
Optical
Input Power-minimum
(Sensitivity)
|
PIN
|
---
|
---
|
-21
|
dBm
|
BER < 10−12
|
|
Operating
Center Wavelength
|
λC
|
1480
|
|
1580
|
nm
|
|
|
Optical
Return Loss
|
ORL
|
14
|
---
|
---
|
dB
|
λ=1480~1580nm
|
|
Optical
isolation
|
ISO
|
---
|
---
|
-40
|
dB
|
λ=1480~1580nm
|
|
Signal
Detect-Asserted
|
PA
|
---
|
---
|
-21
|
dBm
|
|
|
Signal Detect-Deasserted
|
PD
|
-35
|
---
|
|
dBm
|
|
|
Differential
Output Voltage
|
VDIFF
|
0.5
|
---
|
1.2
|
V
|
|
|
Data Output
Rise, Fall Time
(20−80%)
|
T r, f
|
---
|
---
|
0.35
|
ns
|
|
|
Receiver
Loss of Signal Output
Voltage-Low
|
RX_LOSL
|
0
|
---
|
0.5
|
V
|
|
|
Receiver
Loss of Signal Output
Voltage-High
|
RX_LOSH
|
2.4
|
---
|
Vcc
|
V
|
|
Suggested Transceiver Interface
Ordering information
Related Products
|

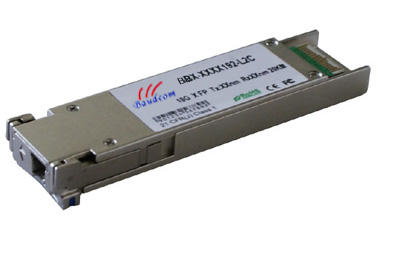

10G XFP BIDI Transceiver
