INFORMATION
Features
● HD-SDI SFP Transceiver available
● SD-SDI SFP Transceiver available
● 3G-SDI SFP Transceiver available
● SMPTE 297-2006 Compatible.
● Metal enclosure for Lower EMI
● 1310nm DFB laser and PIN photodetector
● Compliant with SFP MSA and SFF-8472 with duplex LC receptacle
● Digital Diagnostic Monitoring:
● Compatible with RoHS
● +3.3V single power supply
● Operating case temperature:
Standard : 0 to +70°C
Industrial : -40 to +85°C
Applications
SMPTE 297-2006 Compatible Electrical-to-Optical Interfaces.
HDTV/SDTV Service Interfaces.
Description

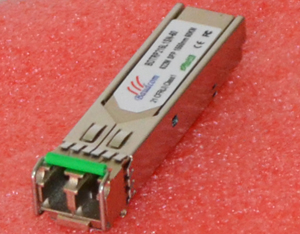

The SFP transceivers are high performance, cost effective modules supporting dual data-rate of 3Gbps and 20km transmission distance with SMF.
The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Absolute Maximum Ratings
Table 1 - Absolute Maximum Ratings
Parameter
|
Symbol
|
Min
|
Max
|
Unit
|
Supply Voltage
|
Vcc
|
-0.5
|
4.5
|
V
|
Storage Temperature
|
Ts
|
-40
|
+85
|
°C
|
Operating Humidity
|
-
|
5
|
85
|
%
|
Recommended Operating Conditions
Table 2 - Recommended Operating Conditions
Parameter
|
Symbol
|
Min
|
Typical
|
Max
|
Unit
|
Operating Case Temperature
|
Standard
|
Tc
|
0
|
|
+70
|
°C
|
Extended
|
-20
|
|
+85
|
°C
|
Power Supply Voltage
|
Vcc
|
3.13
|
3.3
|
3.47
|
V
|
Power Supply Current
|
Icc
|
|
|
300
|
mA
|
Data Rate
|
|
|
3
|
|
Gbps
|
Optical and Electrical Characteristics
BDP-313G-L2x(D): (DFB and PIN, 1310nm, 20km Reach)
Table 3 - Optical and Electrical Characteristics
Parameter
|
Symbol
|
Min
|
Typical
|
Max
|
Unit
|
Notes
|
Transmitter
|
Centre Wavelength
|
λc
|
1260
|
1310
|
1360
|
nm
|
|
Spectral Width (-20dB)
|
σ
|
|
|
1
|
nm
|
|
Side Mode Suppression Ratio
|
SMSR
|
30
|
|
|
dB
|
|
Average Output Power
|
Pout
|
-5
|
|
0
|
dBm
|
1
|
Extinction Ratio
|
ER
|
9
|
|
|
dB
|
|
Optical Rise/Fall Time (20%~80%)
|
tr/tf
|
|
|
0.16
|
ns
|
|
Data Input Swing Differential
|
VIN
|
400
|
|
1800
|
mV
|
2
|
Input Differential Impedance
|
ZIN
|
90
|
100
|
110
|
Ω
|
|
TX Disable
|
Disable
|
|
2.0
|
|
Vcc
|
V
|
|
Enable
|
|
0
|
|
0.8
|
V
|
|
TX Fault
|
Fault
|
|
2.0
|
|
Vcc
|
V
|
|
Normal
|
|
0
|
|
0.8
|
V
|
|
Receiver
|
Centre Wavelength
|
λc
|
1260
|
|
1580
|
nm
|
|
Receiver Sensitivity
|
|
|
|
-18
|
dBm
|
3
|
Receiver Overload
|
|
-3
|
|
|
dBm
|
3
|
LOS De-Assert
|
LOSD
|
|
|
-20
|
dBm
|
|
LOS Assert
|
LOSA
|
-30
|
|
|
dBm
|
|
LOS Hysteresis
|
|
1
|
|
4
|
dB
|
|
Data Output Swing Differential
|
Vout
|
370
|
|
1800
|
mV
|
4
|
LOS
|
High
|
2.0
|
|
Vcc
|
V
|
|
Low
|
|
|
0.8
|
V
|
|
Notes:
1. The optical power is launched into SMF.
2. PECL input, internally AC-coupled and terminated.
3. Measured with a pathological data pattern.
4. Internally AC-coupled.
Timing and Electrical
Table 4 - Timing and Electrical
Parameter
|
Symbol
|
Min
|
Typical
|
Max
|
Unit
|
Tx Disable Negate Time
|
t_on
|
|
|
1
|
ms
|
Tx Disable Assert Time
|
t_off
|
|
|
10
|
μs
|
Time To Initialize, including Reset of Tx Fault
|
t_init
|
|
|
300
|
ms
|
Tx Fault Assert Time
|
t_fault
|
|
|
100
|
μs
|
Tx Disable To Reset
|
t_reset
|
10
|
|
|
μs
|
LOS Assert Time
|
t_loss_on
|
|
|
100
|
μs
|
LOS De-assert Time
|
t_loss_off
|
|
|
100
|
μs
|
Serial ID Clock Rate
|
f_serial_clock
|
|
|
400
|
KHz
|
MOD_DEF (0:2)-High
|
VH
|
2
|
|
Vcc
|
V
|
MOD_DEF (0:2)-Low
|
VL
|
|
|
0.8
|
V
|
Diagnostics
Table 5 – Diagnostics Specification
Parameter
|
Range
|
Unit
|
Accuracy
|
Calibration
|
Temperature
|
0 to +70
|
°C
|
±3°C
|
Internal / External
|
-20 to +85
|
Voltage
|
3.0 to 3.6
|
V
|
±3%
|
Internal / External
|
Bias Current
|
0 to 100
|
mA
|
±10%
|
Internal / External
|
TX Power
|
-5 to 0
|
dBm
|
±3dB
|
Internal / External
|
RX Power
|
-23 to -3
|
dBm
|
±3dB
|
Internal / External
|
