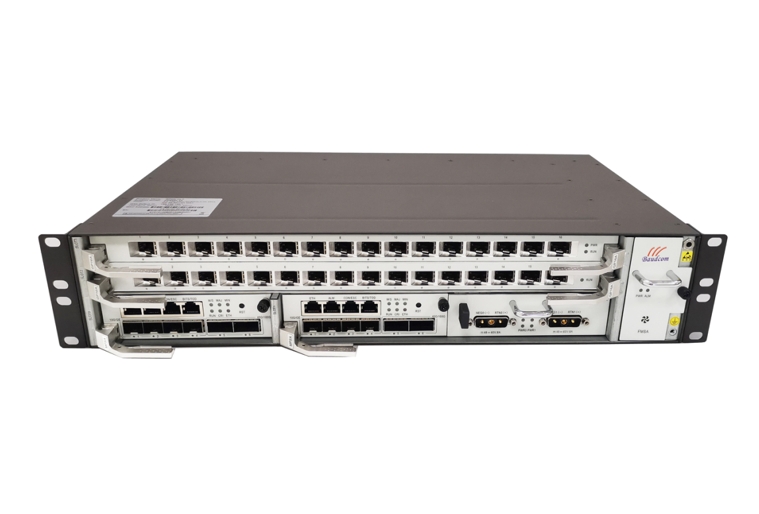

BD5800-X2 is a chassis-type OLT 32 Port XG(S)PON/GPON device independently developed by Baudcom, which can provide highly integrated and large-capacity integrated access for operators, ISPs, enterprises and park applications.
The XGSPON 10g OLT PON follows the technical requirements of ITU-T G.984/G.987/G.988/G.9807, and the software has complete functions, good openness, strong compatibility, and high reliability. Cooperating with GPON/XG-PON/XGS-PON optical network unit (ONU), it can be widely used in the construction of access network networks such as FTTH, VPN, government and enterprise park access, campus network access, etc., which provides users with broadband, voice, video, monitoring and other comprehensive service access.
The 10g OLT adopts a compact frame design, supports GPON/XG-PON/XGS-PON mixed insertion, 2 main control slots and 2 user single board slots. Besides, it also supports a maximum of 32 GPON ports/32 XG(S)PONs, and each PON port can support a maximum of 128 optical network units (ONUs). The main control board of the system can provide 4 GE/10GE SFP+ interfaces and 2 100G QSFP28 ports.
OLT PON Height is only 2U, easy to install and maintain, and save space for customers to the greatest extent, which adopts the industry's advanced technology. This device has efficient bandwidth utilization, Ethernet service support capabilities, and provides customers with reliable solutions. Support mixed networking of different types of ONUs, saving a lot of costs for operators.
Key Features
· OLT PON Fully complies with ITU-T G.984/G.987/G.988 /G.9807 standards, with good interoperability
· GPON/XG-PON/XGS-PON multi-service unified platform facilitates subsequent network upgrades and technology evolution
· Dual main controllers, dual power supply redundancy, PON backbone optical fiber protection, to ensure business continuity and stability
· Modular design of the whole machine, boards, power supplies and fans all support hot swap
· Abundant Layer 2 and Layer 3 switching features and flexible management methods
· Powerful QoS function guarantees service quality
· Safe DDOS and virus attack protection function
· XGSPON OLT Unified network management platform
· Standard OMCI remote deployment and management of user terminals
Hardware Specification
Attribute
|
BD5800-X2 OLT
|
XGSPON OLT Interface
|
MPSA: main control board, 4*10GE/GE SFP+, 2*100G QSFP28
GP16A: 16-port GPON line card
XS16A: 16-port XG/XGS PON line card
CS16A: 16-port GPON/XG/XGSPON combo line card
|
Exchange Capacity
|
720Gbps
|
Packet Forwarding Rate
|
535.68 Mpps
|
10g OLT Memory
|
4G Bytes (main control board) + 4 GBytes (PON board)
|
Flash
|
64 M + 8G Bytes (main control board) + 64 MBytes (PON board)
|
Management Port
|
Console port, debugging network port
|
OLT 32 PortStandard
|
Conform to ITU-TG.984/T G.987/G.988 standard
|
PON
|
Wavelength: GPON: 1310nm (upstream) 1490 nm (downstream),
XGSPON: 1270nm (upstream) 1577nm (downstream);
Line Speed: GPON downlink 2.5Gbps, uplink 1.25 Gbps
XGPON downlink 10Gbps, uplink 2.5Gbps;
XGSPON downlink 10Gbps, uplink 10Gbps;
It can be flexibly compatible with any brand of ONT, and can perform batch software upgrades on ONUs
|
Environment temperature
|
Operating temperature: -10 ℃～50 ℃
Storage temperature: -40 ℃ ~ 70 ℃
|
Environment Humidity
|
Operating humidity: 10%～95% (non-condensing)
Storage humidity: 10%～95% (non-condensing)
|
Weight
|
12 KG
|
Power Supply
|
AC: 100～240V 47/63Hz; DC: 48V;
Modular power supply, optional AC+DC, DC+DC
|
Power Consumption
|
280W
|
Dimensions
(W*D*H )mm
|
482.6* 270 *88.9
|
Software Specification
Attribute
|
BD5800-X2 OLT
|
VLAN
|
Support 4K VLAN 802.1Q
Support VLAN based on port, MAC and protocol
Support dual-Tag VLAN function, port-based static QINQ and flexible QINQ functions
|
MAC
|
Support 128K MAC address entries
Support static MAC address setting
Support black hole MAC address filtering function
Support port MAC address limit
|
OLT PON
|
Splitting ratio: 1:128 (GPON, XG-PON, XGS-PON)
Support B+/C+/C++ GPON optical module
Support N1/N2/E2 XG-PON or XGS-PON optical module
Support N1/B+, N2/C+, E2/D Combo optical modules
SN / SN + Password ONU authentication
Support FEC
ONU optical power monitoring
Rogue ONU detection
|
Layer 2 Function
|
Support STP/RSTP/MSTP
Support ERPS Ethernet ring network protection protocol
Support Loopback-detection port loopback detection
|
Port Control
|
Support bi-directional bandwidth control
Support port storm suppression
Support 9K Jumbo super long frame forwarding
|
Port Aggregation
|
Support static link aggregation
Support dynamic LACP
Each aggregation group supports a maximum of 8 ports
|
Mirroring
|
Support mirror image
|
ACL
|
Support standard and extended ACL
Support time range (Time Range) ACL policy
Provide flow classification and flow definition based on IP packet header information such as source/destination MAC address, VLAN, 802.1p, TOS, DSCP, source/destination IP address, L4 port number, protocol type, etc.
|
OLT 32 Port QoS
|
Support flow speed limit function based on custom business flow
Supports packet mirroring and packet redirection based on custom service flows
Support priority marking based on custom service flow, support 802.1P, DSCP priority Remark capability
Support port-based priority scheduling function, support queue scheduling algorithms such as SP/WRR/SP+WRR
|
Safety
|
Support user hierarchical management and password protection
Support IEEE 802.1X authentication/centralized MAC address authentication
Support Radius&TACACS+ authentication
Support MAC address learning number limit, support black hole MAC function
Support SSH 2.0, providing a secure encrypted channel for user login
Support SNMP v3 encrypted management
Support port isolation, hardware isolation of packets between ports
Support broadcast packet rate suppression
Support IP Source Guard to automatically create IP+MAC+port+VLAN binding table, and support manual binding table items
Support DHCP Option82 and PPPOE+
Support ARP flood attack automatic suppression and ARP spoofing protection
Support the prevention of various DOS attacks and virus attacks against the CPU on the control layer
|
Layer 3Function
|
Support ARP learning and aging
Support for creating VLAN Layer 3 interfaces and configuring static IPv4/IPv6 addresses
Support static route configuration
Support RIP/OSPF protocol function
Support VRRP protocol function
|
OLT 32 Port System Management
|
Support Console/Telnet/SSH2.0 command line configuration
Support WEB browser configuration management
Support FTP, TFTP file upload and download management
Support SNMP V1/V2/V3
Support RMON
Support SNTP clock
Support system work log
Support LLDP Neighbor Discovery Protocol
Support 802.3ah Ethernet OAM
Support RFC 3164 Syslog function
Support Ping and Traceroute
|
