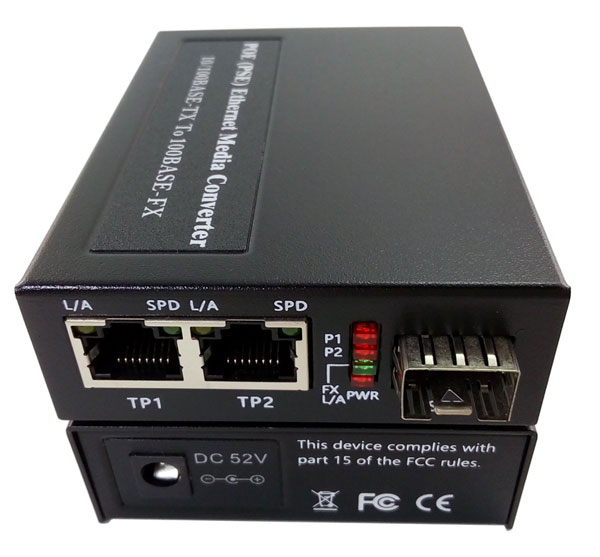

Description:
The POE
(PSE) 10/100Base-TX to 100Base-FX ethernet media converter allows two types of
network segment to be connected easily and supplies power to the remote PD
(powered device) equipment at the same time. Complied with IEEE802.3at or
IEEE802.3af standard, the external powered POE media converter is a Power Sourcing Equipment (PSE) which combines
data transfered over a fiber optic link with 48V (or other voltage) typical
power supply, providing power to IEEE802.3at or IEEE802.3af powered device (PD)
over CAT5/CAT5e UTP cable (cable
length up to 100meters / 330feets). Each converter is combined with one fiber port and two or one RJ45 ports.
Each RJ45 port can output up to 30 watts power (for reference only, 2 pair
wires are used).
Key Features
● 10/100Base-TX
UTP to 100Base-FX fiber media convertion
● IEEE802.3at / IEEE802.3af POE PSE
compatible
● Choice of SC, FC, LC, BiDi or other
connectors for multimode and singlemode optical fiber
● Choice of two or one 10Base-T /
100Base-TX RJ45 ports, output power up to 30 watts per port (for reference
only, 2 pair wires are used)
● Two RJ45 ports are isolated from
each other in default configuration
(be suitable for two RI45 ports
version)
● Supports auto MDI-MDIX function
● Supports various type of external DC
power supply or rechargeable battery set
Technical Specifications:
Data Rates:
- 10/100Mbps
(10/100Base-TX)
- 100Mbps (100Base-FX)
Input Power
Requirements:
- DC 52V (50V-56V, IEEE802.3at application)
- DC 48V (44V-56V,IEEE802.3af application)
- DC 48V (36V-56V, non-standard application)
- DC 24V (18V-36V,non-standard application)
- DC 12V (9V-18V, non-standard application)
Power over
Ethernet Output:
- Pin Assignment
and Polarity
Peak current IO≤0.6A: 4/5
(V+), 7/8 (V-)
- Output Power…..please refer to ordering information
Environmental
Conditions:
- Operating
temperature ....................... …0℃ to 45℃
- Cooling.................................... free
air convection
- Storage temperature ...................... -20℃ to +60℃
- Operating Humidity....... 90%
max, non-condensing
Mechanical
Specifications:
- Case Material............................................... Iron
- Case Color................................................. Black
- Net Weight.............................. 200g
approx. / unit
- Dimensions............... 71(W) x 26(H) x 94(L) (mm)
Do not include
transceiver length
Connectors:
- DC Inlet.......................................... DC470-2.0
-
LAN……………………………….Shielded RJ-45
- Fiber............................. see
ordering information
