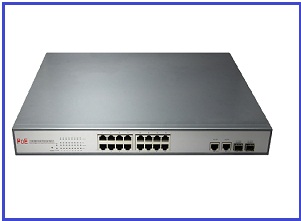

Managed PoE Switch with 16x Ethernet Ports and 2x Gigabit Combo Ports
The POE31016PF features simple and reliable design, This cost-effective BD-POE31016PFM provides network layout need to simplify wireless access point (AP) and IP-based surveillance cameras network cameras in order to install in commercial network and home network. The devices far away from power socket are very suitable for hanging on the wall or ceiling. PoE eliminates the need for connecting these devices to power socket. So it make more flexible for those difficult to connect with AC power socket, and cut down the installation cost. It is ideal choice for those want to deploy a small commercial network and home network that use wireless access point (AP) and IP-based surveillance cameras.

  Request price     Contact us

INFORMATION

Product Description

This BD-POE31016PFM switch provides a network point for power supply and data transmission. All the 16 Ethernet ports can be connected with 10/100Mps quickly, and the uplink port is 1.25Gbps fiber interface, among which 1-16 ports can provide standard IEEE 802.3af power supply. Due the advanced self-sensing algorithm supply power for IEEE802af terminal unit only, there is no need to worry about damaging proprietary PoE or non-PoE standard equipment. In addition, it will stop power supply when PoE devices are not connected. In short, The POE31016PF features simple and reliable design, This cost-effective BD-POE31016PFM provides network layout need to simplify wireless access point (AP) and IP-based surveillance cameras network cameras in order to install in commercial network and home network. The devices far away from power socket are very suitable for hanging on the wall or ceiling. PoE eliminates the need for connecting these devices to power socket. So it make more flexible for those difficult to connect with AC power socket, and cut down the installation cost. It is ideal choice for those want to deploy a small commercial network and home network that use wireless access point (AP) and IP-based surveillance cameras.

Features

Can supply power to network surveillance cameras that without PoE function

16x 10/100Mauto-sensing RJ45 ports, 2x combo ports

Supports port auto-flip (Auto MDI/ MDIX)

Uplink port: 155Mbps SFP interface

Maximum PoE power: 250W (Port 1 to Port16)

Maximum power per port: 15.4W

◆Adopts store-and-forward architecture

◆ IEEE 802.3af power on up to 16 ports

◆Features with fanless, natural cooling, small, compact and quiet design, suitable for desktop or wall

◆ Built-in 1U rack power supply series, easy to place it into standard mounting brackets

Technical Specification

Product Name

Managed PoE Switch with 16x Ethernet Ports and 2x Gigabit Combo Ports

Product Model

BD-POE31016PFM

Connector

16x 10/100M copper cable RJ45 ports(all ports support MDI/MDIX)

2x gigabit combo ports

Transfer Mode

Store-And-Forward

Network Medium

10BASE-T: Cat345 UTP(≤100 meter)

100BASE-TX: 5 classes and more than 5 classes(≤100 meter)

Single mode(9/125um) optical transmission, transmission distance: 25km(double optical default, single optical alternative)

Performance Specifications

Bandwidth: 3.2Gbps (non-blocking)
Network Latency (100 to 100M bps): maximum delay less than 20 microseconds
Packet Buffer Memory: 2.75M

Address Database Size: 4K
MTBF: 190,000 hours (about 21 years)

Network Protocols and Standards

IEEE 802.3i 10BASET
IEEE 802.3u 100BASETX
IEEE 802.3x Flow Control
IEEE 802.1af DTE Power via MDI
IEEE 802.3af

LEDs Status

System: power supply
Every Port: connecting, PoE working status

Power

Maximum PoE power: 250 W
PoE
port power:15.4 W(116 port)
Power input: AC100-240V 50/60Hz; (every country use a custom power plug)

Dimensions/Weight

Dimensions: 440x275x44.5mm, 4.88kg

Working Environment

Operating Temperature: -20 ° ~ 75 ° C
Storage Temperature: -20 ° ~ 75 ° C
Humidity: 10% ~ 90%, non-condensing
Storage Humidity: 10% ~ 95%, non-condensing
Working Altitude: 3000 m (10,000 ft)

Storage Altitude: 3,000 m (10,000 ft)

Radiation

CE mark, commercial
FCC Part 15 Class B
VCCI Class B
EN 55022
(CISPR 22), Class B

Safety

CE Mark ,commercial
CE/LVD EN60950, RoHS

Warranty

1 year warranty(2 years warranty for power adapter)

Product Dimension Display:

Product  Usage Display

Product Ordering Information

Model

Description

Ordering Notes

POE31016PFM

16x 10/100M Ethernet ports + 2x Gigabit Combo ports Managed PoE switch, and 1-16 ports supports IEEE802.3af POE international standard, each port power is15.4W, the total power is 250W



PoE default power supply is

end-span (1/2, 3/6 line pair),

mid-span(4/5, 7/8 line pair)

PoE Power supply can be

customized



Product packing List





Packing List

Managed PoE Switch with 16x PoE Ports and 2x Gigabit Combo Ports ( POE31016PFM )

Power Cable

User Guide

Warranty Card
