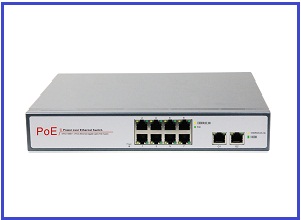

8-Port Gigabit PoE Switch with 8 Gigabit PoE Ports 15.4W
The 8 gigabit PoE ports provide fast connection to servers or the backplane of the gigabit speed. The effective connectivity of the four 10/100/1000Mbps ports, allows growing business networks, classrooms and workgroups to obtain benefits from the demand for superior performance and sustain network expansion. This high-performance switch features with non-blocking, wire-speed switching, and 16Gbps switching capacity. All RJ45 PoE ports can auto adjust the highest connection speed for a normal working,

  Request price     Contact us

INFORMATION

Product Description

The 8 gigabit PoE ports provide fast connection to servers or the backplane of the gigabit speed. The effective connectivity of the four 10/100/1000Mbps ports, allows growing business networks, classrooms and workgroups to obtain benefits from the demand for superior performance and sustain network expansion. This high-performance switch features with non-blocking, wire-speed switching, and 16Gbps switching capacity. All RJ45 PoE ports can auto adjust the highest connection speed for a normal working, This cost-effective BD-POE33008P provide network layout need to simplify wireless access point (AP) and IP-based surveillance cameras network cameras in order to install in commercial network and home network. The devices far away from power socket are very suitable for hanging on the wall or ceiling. PoE eliminates the need for connecting these devices to power socket. So it make more flexible for those difficult to connect with AC power socket, and cut down the installation cost. It is ideal choice for those want to deploy a small commercial network and home network that use wireless access point (AP) and IP-based surveillance cameras.

Features

Supply power to 5 classes Ethernet wireless access point (AP) and network surveillance cameras (PoE)

Port 1 to port 8 compatible with IEEE802.3af standard power

Supply (Maximum power of each port is 15.4W)

8x 10/100 /1000Mbps automatic adjustment RJ45 PoE ports

Meets the standards of the IEEE 802.3af/ IEEE 802.3 /IEEE 802.3u/IEEE 802.3z and IEEE 802.3ab

Flow Control Type: Full duplex adopts IEEE 802.3x standard, half duplex adopts back pressure standard

Network port has lighting-proof function (AC power port: differential mode +/-2kV, common mode +/-4kV)

Maximum PoE Power: 120W (all PoE ports, port 1 to port 8)

Store-and-forward architecture, 192K forwarding memory

All ports support wire-speed switching, frame size within the range of 64 to 1536 can achieve wire-speed

Wall-mounted design, easy to install and use

◆ Automatic adjustment, plug and play, no need software and protocol conversion

Technical Specification

Product Name

8-Port Gigabit PoE Switch with 8 Gigabit PoE Ports 15.4W

Product Model

BD-POE33008P

Connector Type

8x 10/100/1000M copper cable RJ45 PoE ports(All ports support MDI/MDIX automatic adjustment)

Forwarding Mode

Store-and-forward architecture, line speed forwarding

Network Medium

1000BASE-TX: Cat5 or more UTP(≤100 meters)

Performance Specifications

Bandwidth: 16Gbps (non-blocking)
MAC Address Table: 8K
MTBF: 190,000 hours (about 21 years)

PoE Description

IEEE 802.3af, each port power is 15.4W; Port1 to Port8 support PoE power; End-span(1/2+, 3/6- line pair) power supply, can be customized mid-span(4/5+, 7/8- line pair) power supply

Network Protocols and Standards

IEEE 802.3i; IEEE 802.3u; IEEE 802.3ab; IEEE 802.3af

LED Indicator Status

Power, Network, PoE working status

Power

IEEE802.3af standard, each port power is 15.4W, total power is 120W

Voltage

Input: AC100~240V 50/ 60Hz

Dimension

189 x 28 x 102mm

Working Environment

Operating Temperature: 0 ° ~ 55 ° C
Storage Temperature: -20 ° ~ 75 ° C
Humidity: 10% ~ 90%, non-condensing
Storage Humidity: 10% ~ 95%, non-condensing

Radiation

CE mark, commercial
FCC Part 15 Class B
VCCI Class B
EN 55022 (CISPR 22), Class B

Safety

CE Mark ,commercial
CE/LVD EN60950,RoHS

Warranty

1 year warranty

Product Dimension Display:


Product  Usage Display



Product Ordering Information

Model

Description

Ordering Note

BD-POE33008P

8-Port gigabit PoE switch with 8 gigabit PoE ports, port 1 to port 8 supports POE IEEE 802.3af international standard, each port power is 15.4W, the whole power is 120W



Default PoE power supply type is end-span (12, 36 line pair), mid-span (45, 78 line pair) can be customized



Product packing List

Packing Lists

8-Port gigabit PoE switch with 8 gigabit PoE ports 15.4W (BD-POE33008P)

Power Adapter

Mounting kits

User Guide

Warranty Card
