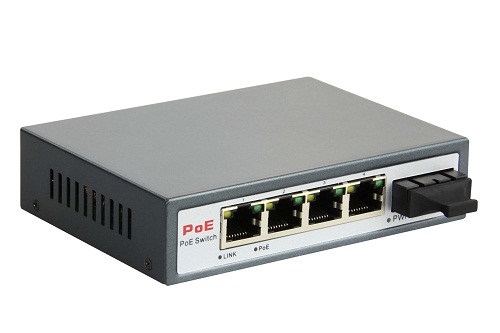

5-Port PoE Switch with 4 PoE Ports and 1 SC Fiber Port
This cost-effective BD-POE31004PF provide network layout need to simplify wireless access point (AP) and IP-based surveillance cameras network cameras in order to install in commercial network and home network. The devices far away from power socket are very suitable for hanging on the wall or ceiling. PoE eliminates the need for connecting these devices to power socket. So it make more flexible for those difficult to connect with AC power socket, and cut down the installation cost. It is ideal choice for those want to deploy a small commercial network and home network that use wireless access point (AP) and IP-based surveillance cameras.

  Request price     Contact us

INFORMATION

Product Description

This BD-POE31004PF switch provides a network point for power supply and data transmission. All the 5 Ethernet ports can be connected with 10/100Mps quickly, and the uplink port is Ethernet interface, among which 1-4 ports can provide standard IEEE 802.3af power supply. Due the advanced self-sensing algorithm supply power for IEEE802af terminal unit only, there is no need to worry about damaging proprietary PoE or non-PoE standard equipment. In addition, it will stop power supply when PoE devices are not connected. In short, The POE31004PF features simple and reliable design, automatic identification PoE requirements, duplex and high-speed. This cost-effective BD-POE31004PF provide network layout need to simplify wireless access point (AP) and IP-based surveillance cameras network cameras in order to install in commercial network and home network. The devices far away from power socket are very suitable for hanging on the wall or ceiling. PoE eliminates the need for connecting these devices to power socket. So it make more flexible for those difficult to connect with AC power socket, and cut down the installation cost. It is ideal choice for those want to deploy a small commercial network and home network that use wireless access point (AP) and IP-based surveillance cameras.

Features

Can supply power to network surveillance cameras that without PoE function

5x 10/100Mbps auto-sensing RJ45 ports, 4x 10/100Mbps PoE ports, 1x 155Mbps SC port

Supports port auto-flip (Auto MDI/ MDIX)

External power supply

Maximum PoE ports power: 65W (Port 1 to Port4)

Maximum power of single PoE port: 15.4W

Adopts store-and-forward architecture

 IEEE 802.3af power on up to 4 ports

Features with fanless, natural cooling, small, compact and quiet design, suitable for desktop or wall

Built-in 1U rack power supply series, easy to place it into standard mounting brackets

Technical Specification

Product Name

5-Port PoE Switch with 4 PoE Ports and 1 SC Fiber Port

Product Model

BD-POE31004PF

Connector

5x 10/100M copper cable RJ45 ports(all ports support MDI/MDIX)

4x PoE ports, 1x 155Mbps SC fiber port

Transfer Mode

Store-And-Forward

Network Medium

10BASE-T: Cat3,4,5 UTP(≤100 meter);

100BASE-TX: Cat5 or more UTP (≤100 meter)

Fiber transmission distance: 25km; Data transmission: 100m

Performance Specifications

Bandwidth: 1.6Gbps (non-blocking)
Network Latency (100 to 100M bps): maximum delay less than 20 microseconds
Packet Buffer Memory: 96KB
Address Database Size: 1,000
MTBF: 190,000 hours (about 21 years)

Network Protocols and Standards

IEEE 802.3i 10BASET;
IEEE 802.3u 100BASETX;
IEEE 802.3x Flow Control;
IEEE 802.1af DTE Power via MDI;
IEEE 802.3af

LEDs Status

System: power supply
Every Port: connecting, PoE working status

Power

Maximum PoE power: 65W
PoE
port power:15.4 W(1~4 port)
Power input: AC100-240V 50/60Hz; (every country use a custom power plug)

Dimensions/Weight

Dimensions: 118x85x27mm, 0.26kg

Working Environment

Operating Temperature: 0 ° ~ 55 ° C

Storage Temperature: -20 ° ~ 75 ° C

Operating Humidity: 10% ~ 95%, non-condensing

Radiation

CE mark, commercial
FCC Part 15 Class B
VCCI Class B
EN 55022
(CISPR 22), Class B

Safety

CE Mark ,commercial
CE/LVD EN60950, RoHS

Warranty

1 year warranty(2 yeas warranty for power adapter)

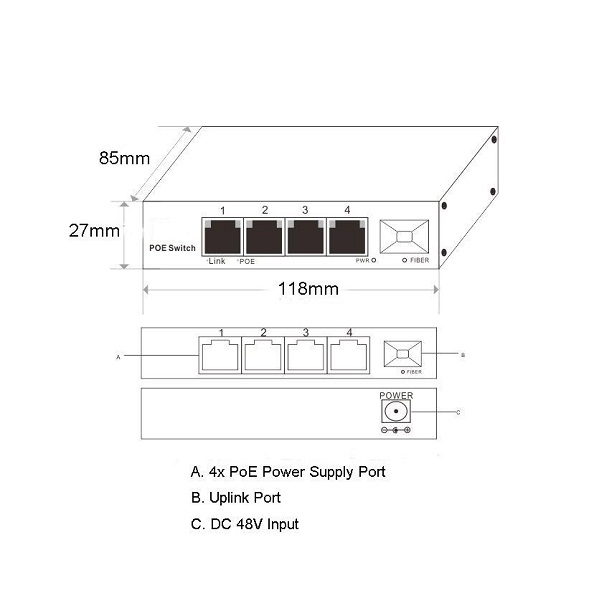

 Product Dimension Display:

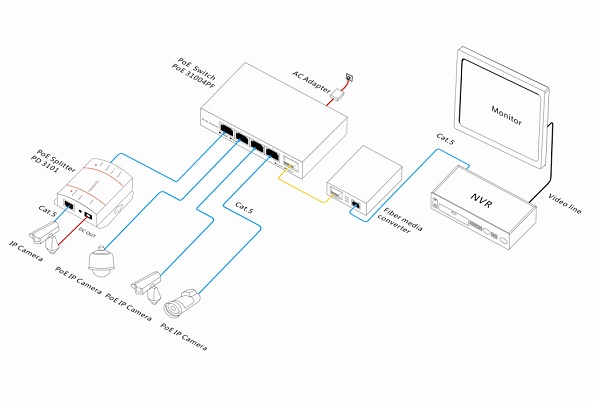

roduct Usage Display

Product Ordering Information

Product Model

BD-POE31004PF

Product Description

5x 10/100M Ethernet ports with 4x PoE ports and 1x SC fiber port, and 1-4 ports supports IEEE802.3af POE international standard, each port power is15.4W, total power is 65W



Ordering Notes

PoE default power supply is end-span (1/2, 3/6 line pair), alternative PoE

Power supply is mid-span (4/5, 7/8 line pair)



Product packing List

Packing Lists

5-Port PoE Switch (BD-POE31004PF)

Power Adapter

User Guide

Warranty Card
