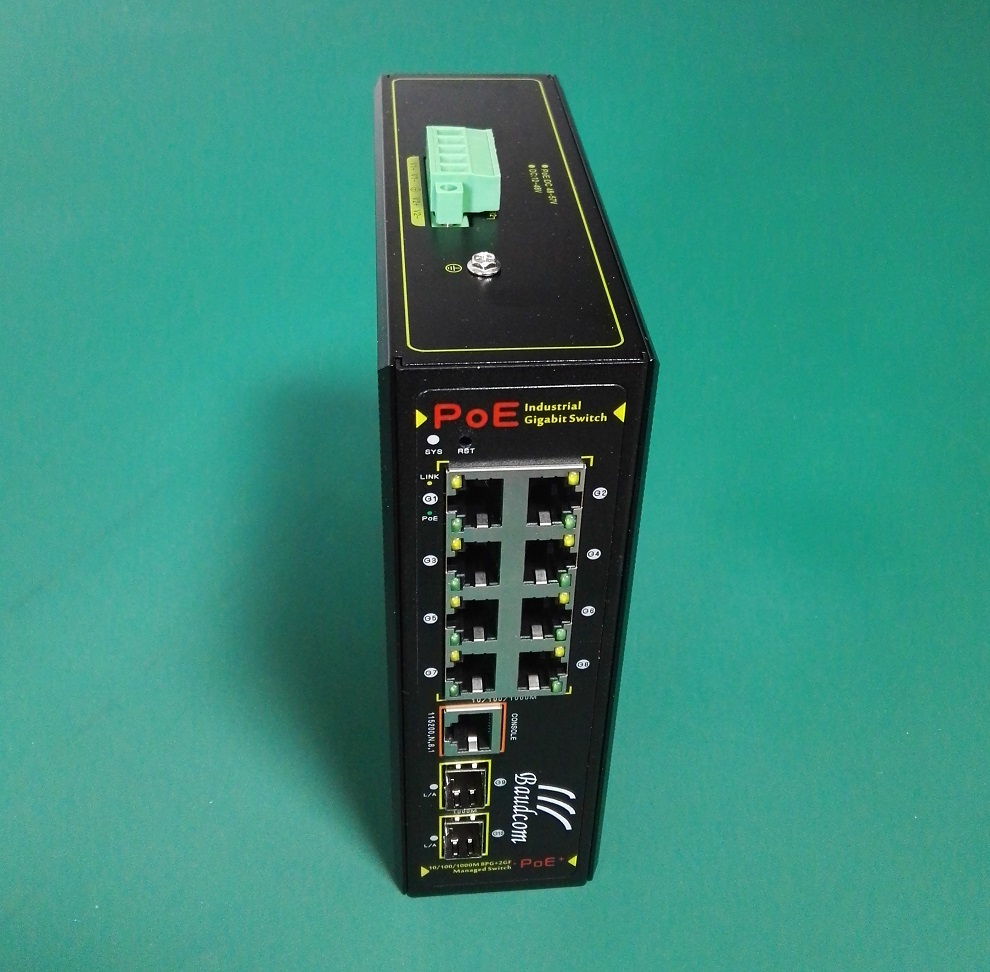

10-Port Gigabit Managed Industrial POE Switch
This 10-Port Gigabit Managed Industrial POE Switch, provides a reliable infrastructure for your business network.GUI management.

  Request price     Contact us

INFORMATION

Produc description

This 10-Port Gigabit Managed Industrial POE Switch, provides a reliable infrastructure for your business network. It delivers more intelligent features you need to improve the availability of your critical business applications, protects your sensitive information, and optimizes your network bandwidth to deliver information and applications more effectively. It provides the ideal combination of affordability and capabilities for entry level networking of industrial, small business or enterprise application which demands industrial, surveillance, IP Phone, IP Camera or Wireless applications, thus helps you create a more efficient workforce.

In short, it provides security, performance, quality of services, central managed and other network control capabilities. Optimized and customized design and affordable pricing, it best fit for SMB or entry-level enterprise solution. It passed the rigorously testing to deliver excellent performance. As a managed switching solution, it also provides the flexibility to manage and prioritizes suitable-bandwidth traffic such as voice. In addition, it has advance security and gives you tight control to safeguard the network from unauthorized users.




Technical Specification







10-Port Managed Industrial POE Switch (BD-S33108PFM)

Performance (Switching capacity and forwarding rate)

Capacity in Millions of Packets per Second (mpps) (64-byte packets)(Buffer Memory)

4M

Switching Capacity in Gigabits per Second (Gbps) (Bandwidth)

52G

Interface

Ports

8x 10/100/1000Base-T ports + 2x gigabit SFP slots + 1 console port

Layer 2 Switching

Spanning Tree Protocol (STP)

Standard Spanning Tree 802.1d

Rapid Spanning Tree (RSTP) 802.1w

G.8032 ERPS

<50ms ring protection for industrial high reliable application

Aggregation

Link Aggregation Control Protocol (LACP) IEEE 802.3ad;

Up to 7 groups ;Up to 14 ports per group

VLAN

Support up to 4K VLANs simultaneously (out of 4096 VLAN IDs) ;Port-based VLAN; 802.1Q tag-based VLAN

IGMP v1/v2 snooping

IGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 1024 multicast groups (source-specific multicasting is not supported)

Security

Secure Shell (SSH) Protocol

SSH secures Telnet traffic in or out the switch, SSH v1 and v2 are supported

Secure Sockets Layer (SSL), HTTPS

SSL encrypts the http traffic, allowing advance secure access to the browser-based management GUI in the switch

Port Security

Locks MAC Addresses to ports, and limits the number of learned MAC addresses

DHCP Snooping

prevent unauthorized configuration and use of IP addresses, while providing support for IP Source Guard and ARP detection

IP Source Guard

Prevents datagram with spoofed addresses from being in the network

ARP Inspection

Prevent ARP spoofing attacks and ARP

Storm control

Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port

ACLs

Support for up to 256 entries; Drop or rate limitation based on source and destination MAC, VLAN ID or IP address, protocol, port, differentiated services code point (DSCP) / IP precedence, TCP/ UDP source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets, IGMP packets, TCP flag

Quality of Service

Hardware

Support 8 hardware queues

Scheduling

8 COS queues per port support strict priority and weighted round-robin (WRR)

Classification

Port based; 802.1p(PCP) VLAN priority based;

Rate Limiting

Ingress policer;egress shaping and rate control;per VLAN,per port and flow based

Management       (Web/ SSL, Telnet/ SSH, ping, Trivial File Transfer Protocol (TFTP), SNMP, Syslog)

Web GUI interface

Built-in switch configuration utility for browser-based device configuration (HTTP/ HTTPs). Supports configuration, system dashboard, maintenance, and monitoring

Dual Image

Dual image provides independent primary and secondary OS files for backup while upgrading

Firmware upgrade

Web browser upgrade (HTTP/ HTTPs) and TFTP;Upgrade through console port as well

Port mirroring

Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switchˇs Ports) ports can be mirrored to single destination port. A single session is supported.

Other management

Single IP management; HTTP/HTTPs; SSH; RADIUS; DHCP Client; SNTP; cable diagnostics; ping; syslog; Telnet client (SSH secure support)

Green Ethernet

 Green and Energy-saving Ethernet (EEE)

Compliant IEEE802.3az Energy Efficient Ethernet Task Force. Automatically turns off power on Gigabit Ethernet RJ-45 port when detecting link down or Idle of client. Active mode is resumed without loss of any packets when the switch detects the link up

Cable length detection

Adjusts the signal strength based on the cable length. Reduces the power consumption for cables shorter.

General

Jumbo frames

Frame sizes up to 9KB supported on Gigabit interfaces

MAC Table

Up to 8K MAC addresses

Discovery

Link Layer Discovery Protocol (LLDP)

Used by network devices for advertising their identities, capabilities, and neighbors on a IEEE 802 local area network, principally wired Ethernet.

PoE

PoE Standard:

IEEE802.3af/IEEE802.3at

Max. PoE Power Per Port:

15.4W (IEEE 802.3af) /
30W (
IEEE 802.3at)

PoE Ports:

8 ports support PoE

Power Type:

End-span (Mid-span optional)

Minimum Requirements

Web browser: Mozilla Firefox version 2.5 or later, Microsoft Internet Explorer version 6 or later;

Category 5 Ethernet network cable;

TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed on each computer in network

Environmental  (preliminary)

Dimensions

165x145x45mm

Working Environment

Operating temperature: -40 to 75 ; Storage temperature: -40to 75 ; Operating humidity: 10% to 90% , relative, non-condensing
