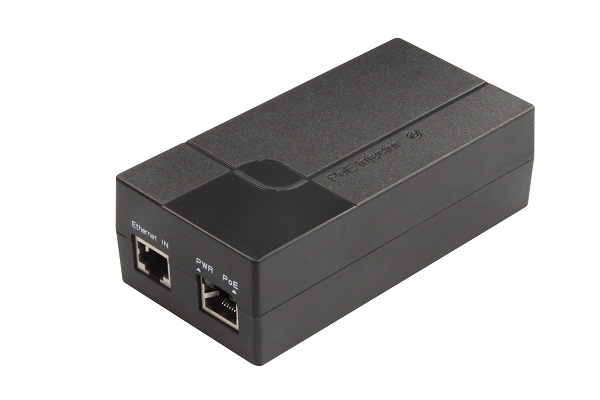

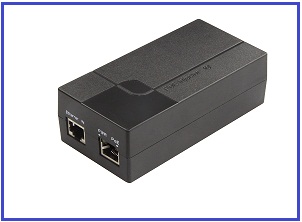

10/100/1000M PoE Injector with Single PoE Port - AC Input 30W
PoE Injector is also called as Power over Ethernet mid-span devices. Single port PoE injector, that is PoE power supply module, is the most flexible and the hottest products among the power supply devices. There are 2x RJ45 PoE ports for these single-port PoE injectors, one of which is the Ethernet in Port for the uplink upper switches or other upper network devices, and another is PoE Out port used as the port for network data and power output. These single-port PoE injectors supply power with the spare line pair (4/5 (+), 7/8 (-) method or the data line pair 1/2(+), 3/6(-) method.

  Request price     Contact us

INFORMATION

Product Description

PoE Injector is also called as Power over Ethernet mid-span devices. Single port PoE injector, that is PoE power supply module, is the most flexible and the hottest products among the power supply devices.  There are 2x RJ45 PoE ports for these single-port PoE injectors, one of which is the Ethernet in Port for the uplink upper switches or other upper network devices, and another is PoE Out port used as the port for network data and power output. These single-port PoE injectors supply power with the spare line pair (4/5 (+), 7/8 (-) method or the data line pair 1/2(+), 3/6(-) method. These single-port PoE injectors provide a simple, economical, high-performance and intelligent way for Ethernet PoE power supply and data communication. It’s ideal choice for those who need the superior quality project because of its simple use, easy to install, superior performance and cost-effective. They can supply power to HD webcam through Cat5 Ethernet cable, in order that make it more flexible for the places difficult to connect to power supply, and provide with more efficient solutions.

Features

◆Supply power to HD network surveillance cameras with Cat5e (PoE)

◆2x 10/100/1000M RJ45 ports; 1x AC input port

◆ AC input: 110V~220V

◆ Compatible with IEEE 802.3at standard (30W)

◆Coming with the Ethernet network port and PoE output port, and the power input port with lighting-proof function (meet the secondary lightning protection)
◆Can supply power with the spare line pair(4/5 (+), 7/8 (-) method or the data line pair 1/2(+), 3/6(-) method

◆No fan, natural heat dissipation, small, quiet design, suitable for desktop or wall

Technical Specification

Product Name

10/100/1000M Single Port PoE Injector 30W

Product Model

BD-PSE3101ACG-at

Port Description

2x copper cable RJ45 ports, 1x AC input port

PoE Power Supply

mid-span: 4/5, 7/8 data line pair(default); end-span: 1/2,3/6 spare line pair (can be customized)

Network Medium

1000BASE-TX: 5Cat and more UTP (≤100 meters)

Thermal Protection

>100°C

Performance

Working rate:10/100/1000Mbps working rate

Network port protection: meet with IEC61000-4-2(ESD)

MTBF: 190,000 hours(about 21 years)

PoE Standards

IEEE 802.3at

LEDs Indicator

PoE working status

Power

Total power: 35W

PoE port power: 30W

AC input voltage: 110~220V

Dimensions

LxWxH: 118x60x38(mm)

Working Environment

Operating Temperature: 0° 55°C , Storage Temperature: -20° 75°C

Working Humidity: 10%90%, non-condensing

Storage Humidity: 10%95%, non-condensing

Warranty

CE mark,commercial,FCC Part 15 Class BRoHS

1 year warranty

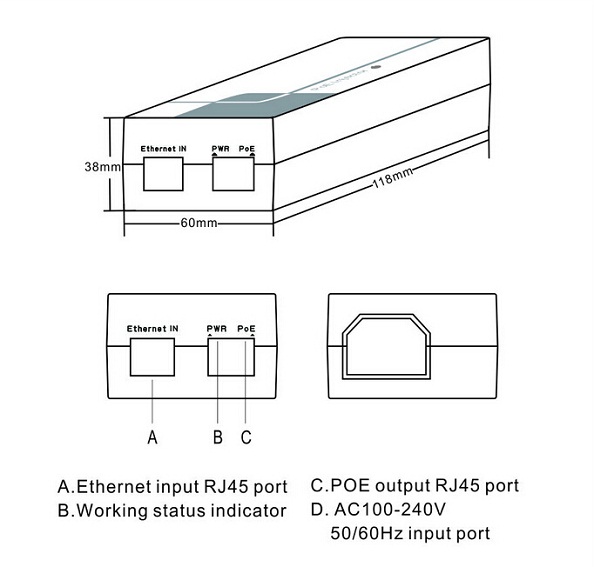

Product Dimension Display:

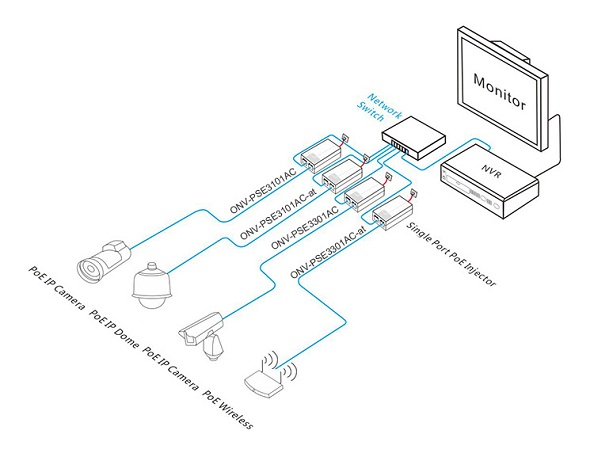

Product  Usage Display



Product Ordering Information

Model

Specs (AC Input 110~220V)

Dimension/ Weight

Ordering Notes

BD-PSE3101ACG-at

10/100/1000M PoE injector, 2xRJ45 ports, IEEE802.3at, 30W

150x56x45mm, 0.154kg

Default mid-span: 4/5, 7/8 data line pair; end-span: 1/2, 3/6 spare line pair (can be customized)



Product packing List

Package List

10/100/1000M Single Port PoE Injector AC Input 30W

User Guide

Power Cable

Warranty Card
