10/100/1000M PoE Extender 15.4W
BD-PSE3301 is a simple device which can extend the 100m standard data transmission to 200m through CAT5e/6 UTP cable, by just plug and play but no additional power supply or set up required.

  Request price     Contact us

INFORMATION

Product Description

BD-PSE3301 is a simple device which can extend the 100m standard data transmission to 200m through CAT5e/6 UTP cable, by just plug and play but no additional power supply or set up required. It offers you great flexibility to extend the distance of  PoE network to triple, quadruple further in length or more. And this device supports forwards both Ethernet data and PoE power to remote devices.

For the cost saving and power management purpose, this device can be widely used for City intelligent traffic monitoring system (ITS), safe city, and wireless city; large industrial factory& enterprise security surveillance system; Highway surveillance system, electronic road surveillance, snapshot system; Remote multimedia teaching & campus surveillance, video conferencing systems; Building intercom, wireless communications, video surveillance.


Features:

◆Supply power to IP network cameras through Cat5e cables (PoE)

◆Compatible with IEEE 802.3af PSE devices

◆Support 10/100/1000M data transmission through RJ45 port

◆Auto-negotiation and auto-MDIX fast Ethernet RJ45 por

◆Both mid-span ( 4/5+, 7/8- ) and end-span ( 1/2+, 3/6- )

◆IEEE 802.3af; IEEE 802.3i; IEEE 802.3u; IEEE 802.3x Flow Control; IEEE 802.1af DTE Power via MDI

100Base-TX : Cat5 UTP(≤100 meters)

◆Store-And-Forward architecture

◆ 2x RJ45 PoE ports; maximum 15.4W for single PoE port

◆ Front-end receiving and Back-end supply power


Technical Specification

Product Name

10/100/1000M PoE Extender 15.4W

Model

BD-PSE3301

Description

10/100/1000M PoE extender, extends the data transmission from 100m to 200m

Network Protocols and Standards

IEEE 802.3i 10BASET
IEEE 802.3u 100BASET

IEEE 802.3x Flow Control
IEEE 802.1af DTE Power via MDI

IEEE 802.3af

Network Medium

Cat5 or more UTP(≤100 meter)

Backplane Bandwidth

8Gbps

Forwarding Way

Store-And-Forward architecture

MAC Address Table Size

1K

Port Description

1x RJ45 PoE input port; 1x RJ45 PoE output port

PoE Features

PoE standard: IEEE802.3af

PoE port power: 15.4W

Default: end-span(1/2+, 3/6-) . Optional:Mid-span(4/5+, 7/8- )

LED Indicator Status

ACT/LINK: Network status , PoE: PoE working status

Dimension/Weight

Dimension(LxWxH): 74.5x103.5x25.5mm

Environment

Operating temperature: 0 to 55° C

Storage temperature: -20 to 75°C

Working Humidity: 10%90%, non-condensing

Safety

CE Mark ,commercial, FCC Class, RoHS

Warranty

1 year warranty

Package List

POE Extender, User Guide, Warranty Card

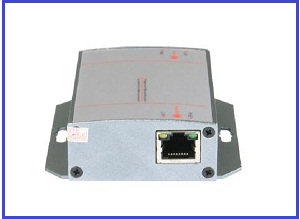

Product Size Display



Product Usage Display

Product Packing List

Package List

10/100/1000M PoE Extender with 15.4W

User Guide

Warranty Card



Ordering information
