fiber access termination box

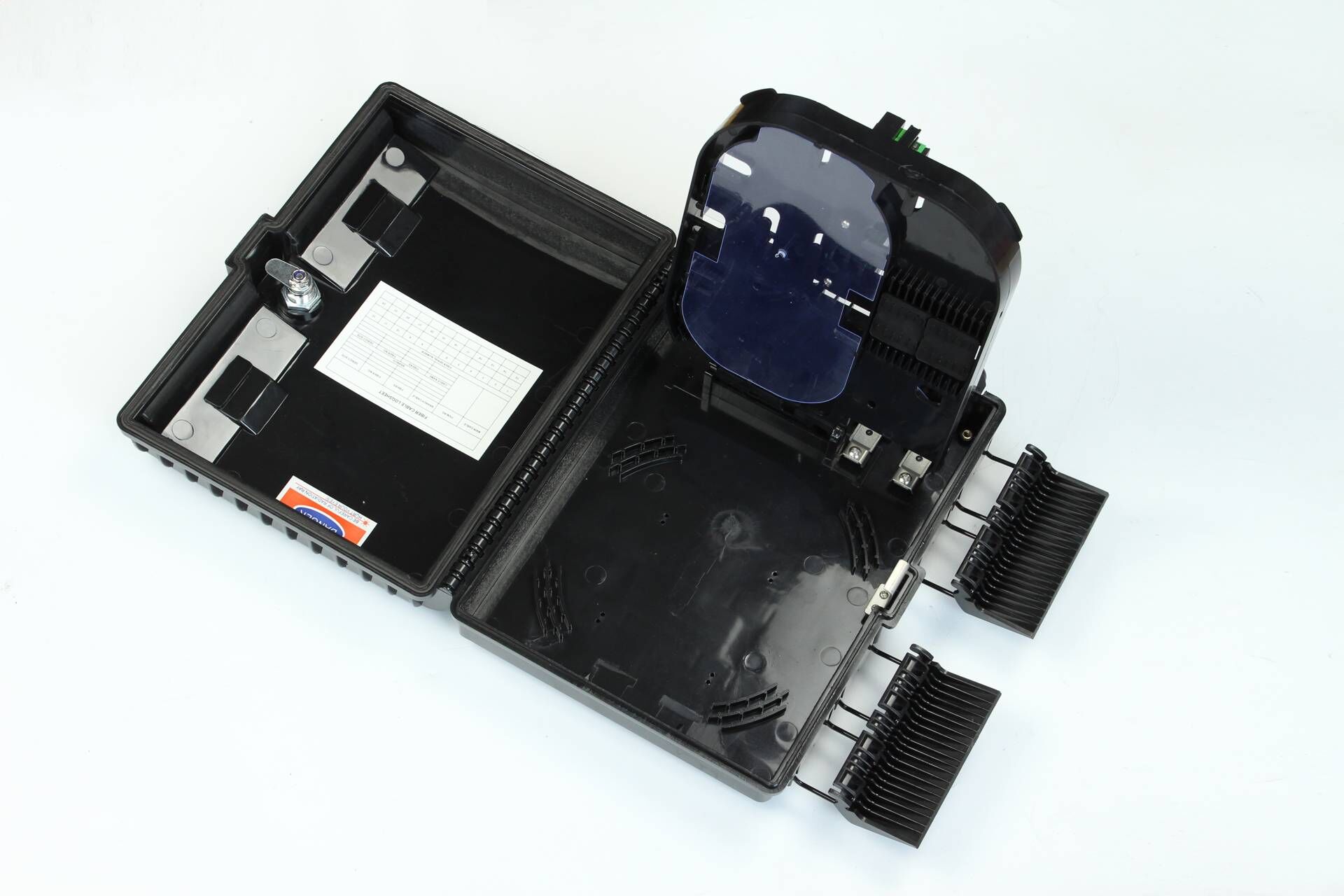

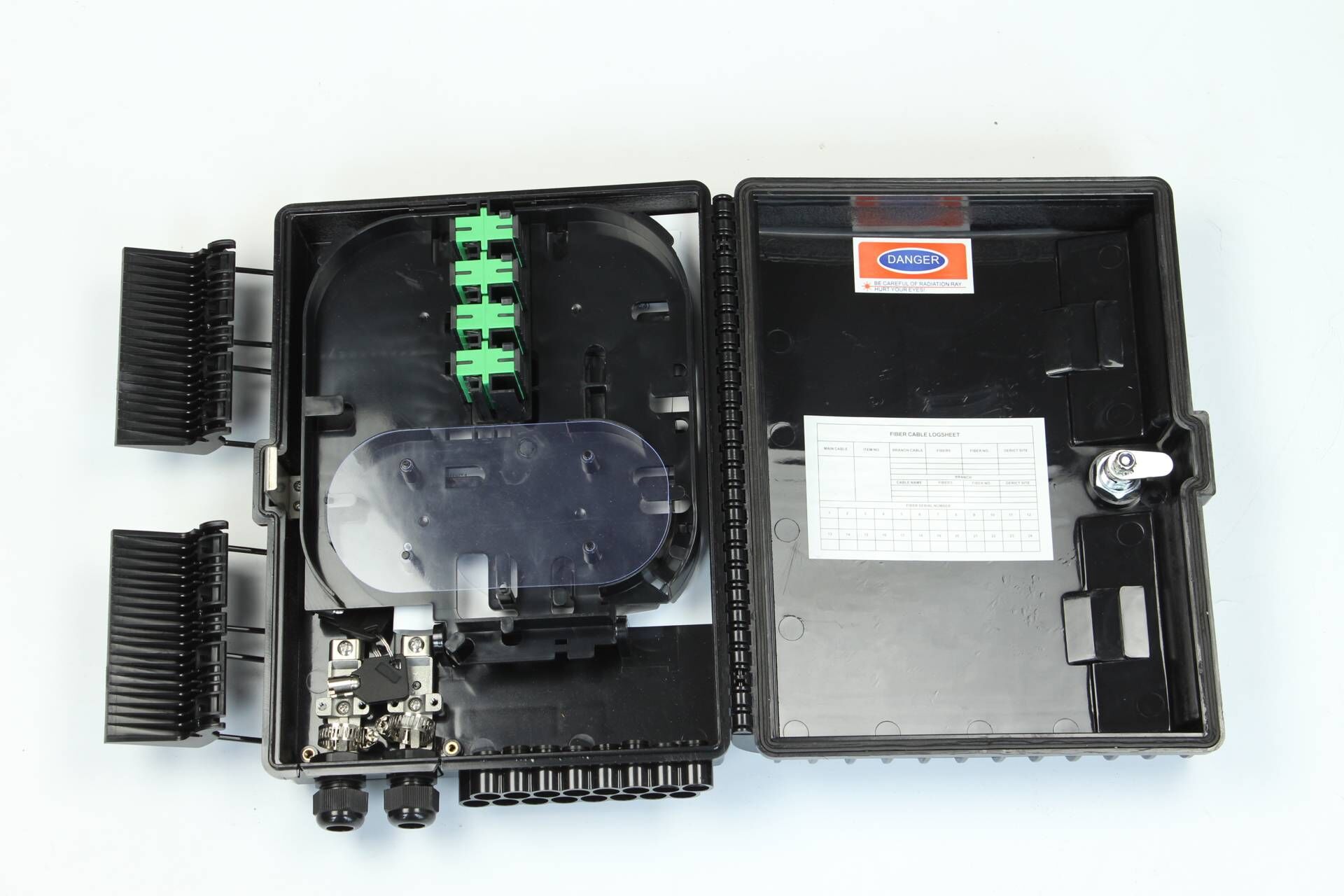

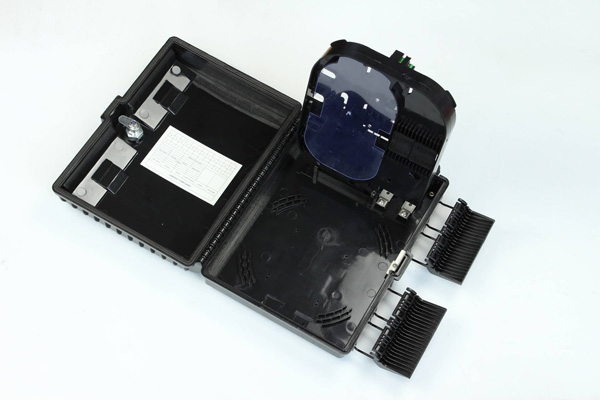

BD-FTB-16B fiber access termination box is able to hold up to 16 subscribers.

  Request price     Contact us

INFORMATION

Description

BD-FTB-16B fiber access termination box is able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It integrates fiber splicing, splitting, distribution,storage and cable connection in one solid protection box.



Features

   ●   Water-proof design with IP-66 Protection level.

   ●   Integrated with splice cassette and cable management rods.

   ●   Manage fibers in a reasonable fiber radius condition.

   ●   Easy to maintain and extend the capacity.

   ●   Fiber bend radius control more than 40mm.

   ●   Suitable for the fusion splice or mechanical splice.

   ●   2 pcs of 1*8 Splitter can be installed as an option.

   ●   Efficient cable management.

   ●   16 ports cable entrance for drop cable.



Configuration

Material

Size

Max Capacity

Max Capacity

Weight

Color

PC+ABS



A*B*C(mm)

295*220*85

SC

16 Ports

PLC

1x8(SC)

1.0kg







Ordering information
