INFORMATION
Key Data
|

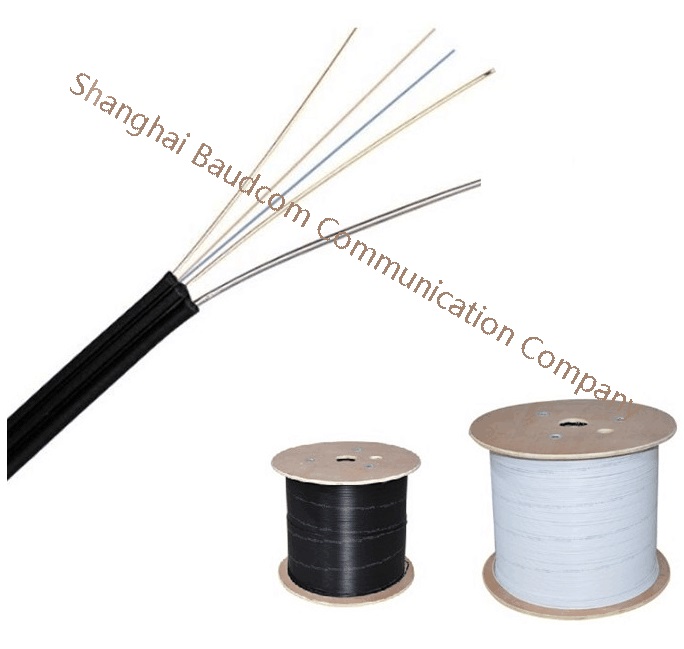

Outdoor
model
|
BD-GJXCH
|
|
Jacket
|
PVC
or LSZH
|
|
Cores
available
|
1
core
|
|
Dropping
steel mesenger OD
|
1x1.0mm
|
|
Protecting
inner wires(or FRP) OD
|
2x0.45mm
|
|
Jacket
colors
|
Black,white
etc.,
|
|
Fiber
Type
|
G652D/G657A1/G657A2
|
|
Modes
|
Singlemode,
Multi-mode
|
|

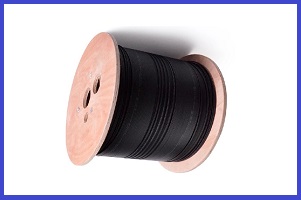

Length
|
1km/2km/3km
each roll
|
Fiber Parameters
|
No.
|
Items
|
Unit
|
Specification
|
|
G.657A1
|
|
1
|
Mode Field Diameter
|
1310nm
|
μm
|
9.0±0.4
|
|
1550nm
|
μm
|
10.1±0.5
|
|
2
|
Cladding Diameter
|
μm
|
124.8±0.7
|
|
3
|
Cladding Non-Circularity
|
%
|
≤0.7
|
|
4
|
Core-Cladding Concentricity Error
|
μm
|
≤0.5
|
|
5
|
Coating Diameter
|
μm
|
245±5
|
|
6
|
Coating Non-Circularity
|
%
|
≤6.0
|
|
7
|
Cladding-Coating Concentricity Error
|
μm
|
≤12.0
|
|
8
|
Cable Cutoff Wavelength
|
nm
|
λcc≤1260
|
|
9
|
Attenuation (max.)
|
1310nm
|
dB/km
|
≤0.35
|
|
1550nm
|
dB/km
|
≤0.21
|
|
10
|
Macro-Bending Loss
|
1turn×10mm radius @1550nm
|
dB
|
≤0.75
|
|
1turn×10mm radius@1625nm
|
dB
|
≤1.5
|
Cable Parameters
|
Items
|
Specifications
|
|
Fiber Count
|
1
|
|
Colored Coating Fiber
|
Dimension
|
250±15μm
|
|
Color
|
Blue, Orange
|
|
Strength Member
|
Dimension
|
0.5mm
|
|
Material
|
FRP
|
|
Self-Supporting Member
|
Dimension
|
1.0mm
|
|
Material
|
Steel Wire
|
|
Jacket
|
Dimension
|
5.2±0.2mm×2.0±0.1mm
|
|
Material
|
LSZH
|
|
Color
|
Black
|
|
|
|
|
Mechanical and Environmental Characteristics
|
Items
|
Unite
|
Specifications
|
|
Tension (Long Term)
|
N
|
300
|
|
Tension (Short Term)
|
N
|
600
|
|
Crush (Long Term)
|
N/10cm
|
1000
|
|
Crush (Short Term)
|
N/10cm
|
2200
|
|
Min. Bend Radius (Dynamic)
|
mm
|
20D
|
|
Min. Bend Radius (Static)
|
mm
|
10D
|
|
Installation Temperature
|
℃
|
-20~+60
|
|
Operating Temperature
|
℃
|
-40~+70
|
|
Storage Temperature
|
℃
|
-40~+70
|
