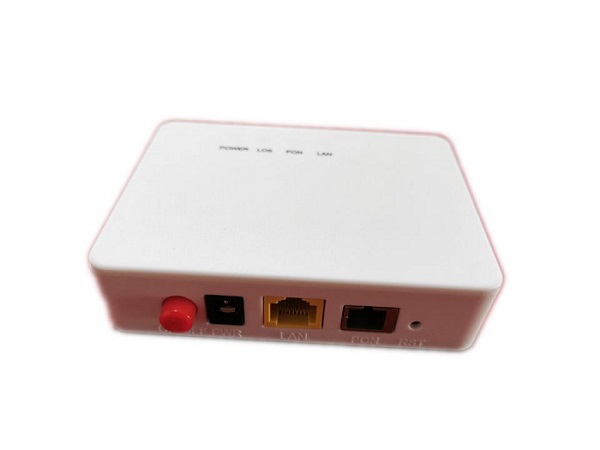

1GE EPON FTTH ONU

  Request price     Contact us

INFORMATION

General Description

EPON ONU 1GE is a new EPON ONU production of Our Company which passive optical network terminal series. It provides one 10/100/1000Mbps base-T interface, one optical interface, and it is very impact. Suitable for home and small business users, can meet the FTTH high-speed data transmission of the application.

Model: BD-ONU-111L

Key Features

n  It takes the PTMP (point to multipoint)network topology, effectively collects and converges scattered Ethernet services, and provides the 10/100/1000M Ethernet standard RJ45 interface, smoothly interconnects with existing networks.

n  The Dynamic Bandwidth Allocation (DBA) mechanism enables all users to share the 1Gbps bandwidth reasonably, guaranteeing a reliable QoS.

n  Supports IGMP multicast, effective use of broadband;

n  Supports multicast VLAN;

n  Full management through an Operation Administration Maintenance (OAM) protocol based on IEEE802.3ah, including configuration, alarm, performance monitoring, fault isolation and security management, etc. It supports remote management through OLT and local console management as well.

n  Supports FEC and DBA;

n  Supports IEEE802.1Q VLAN protocol;

n  Supports IEEE 802.1p protocol;

n  Supports remote loopback and network status diagnosis

n  Supports flow statistics

n  Supports storm control;

n  Support NAT;

n  Support PPPOE;

n  Support DHCP Server Client;

n  Support Route;



Technical Parameter

Module

EPON ONU 1GE

User nterface

1 10/100/1000M RJ45 port.

PON

Transmission speed :upstream/downstream symmetrical 1Gbps

Network coverage radius: 20KM

Optical receive sensitivity:≥-27dBm

Continuous light power: 0dBm~+4dBm

Security: SFU authentication mechanism

Protocol

Compliant with IEEE 802.3ah

YD/T 1475-2006

IEEE 802.1D, Spanning Tree

IEEE 802.1Q, VLAN

IEEE 802.1w, RSTP

IEEE 802.3ad (LACP)

Ethernet–II, Ethernet-SNAP

Route

Support NAT

Support PPPOE

Support Server Client

Support Route

VLAN

Port-based VLAN

GVRP

IEEE 802.1Q VLAN

QOS

Backpressure flow control(half-duplex)

IEEE 802.3x flow control(full-duplex)

Prevent Head Of Line

IEEE 802.1p, CoS

WR,SP and FIFO queue scheduling algorithm

Port rate limit

Safety

IEEE 802.1x,access control based upon Port; support local and remote RADIUS.

CHAP,EAP certification;

Storm control, port protection,

Management

Various management modes such as Web, TELNET

Debug function.

Size

90mm(L)×80mm(W)×22mm(H)

Environment

Operating temperature:060;

Operating humidity:10%85% non-condensing

Storage temperature:-4080;

Storage humidity:5%95% non-condensing

Power supply

110240VAC   12V/0.5A DC

power interface size:2.1mm/5.5mm

Power Consumption

2.5W
