Overview:

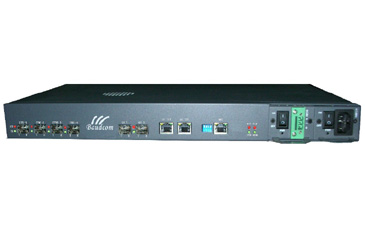

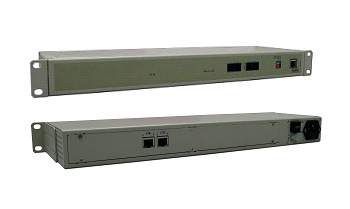

BD-EOS-FE-STM1 is Ethernet over SDH converter (EOS or EoSDH) which deliver Ethernet services over SDH STM-1 transmission. The Ethernet/SDH converter provides one or two STM-1 SDH optical interfaces and two 100M full-duplex Ethernet electrical ports, encapsulates Ethernet frame to SDH payload, providing fast and cost-effective Ethernet access for carriers and service providers. The standard STM-1 enables connection with any SDH multiplexers from other vendors to access backbone network or get simple point-to-point network directly.
The two Ethernet over STM-1 device can be managed by SNMP network management.
The Ethernet over SDH are available with AC power or DC power or mixed AC+DC power.
Features:
1. Standard STM-1 optical ports, support 1+1 protection(optional), dual or single fiber transmission, different wavelengths and powers can be selected
2. Ethernet mapping adopts GFP/VC-12 virtual concatenated technology; according with MSTP criterion；
3. support SNMP network management, one Q3 or SNMP（10Base-T）network management port
4. Standard 19” 1 unit box
5. -48V DC or 220V AC power supply or AC+DC two power suppl
6. Substrate program on-line update supported
7. High reliability, low CAPEX and OPEX
Technical Specification:
|
Index
|
Performance Parameter
|
|
SDH Interface
|
Max
|
1~2 STM-1 optical interfaces （1+1 protection supported）
|
|
Connector
|
SC/PC
|
|
Spec.
|
S-1.1, L-1.1, L-1.2
|
|
Single fiber bi-directional interface can be optionally supported
|
|
Service interface
|
Ethernet port
|
2*10/100Base-Tx
Comply with IEEE 802.3
|
|
Management
|
Protocol
|
SNMP
|
|
Interface
|
10Base-T
|
|
Physical Dimension
|
1U: 440x44x138 (mm)
|
|
Power
|
Supply
|
-48V DC or 220V (110V) AC or dual power supply
+24VDC
|
|
Consumption
|
<8w
|
|
Environment
|
Temperature
|
0C-50C
|
|
Humidity
|
90 %
|
Typical Application:

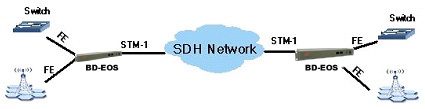

BD-EOS-FE-STM1 work as Ethernet/STM-1 converter either in the point to point network or in other complicated network topologies inter-working with other MetroEdge Express products. It is mainly used in access layer network to supply STM-1 and Ethernet access. The typical application as below:
