How to Resolve Core can not be Aligned in Fiber Fusion Splicer

Uploaded2020/5/16 4:19:22     Hits    Source

fiber core alignment











From this Picture, it means the fiber is not in the V-groove, or the microscope lens is worn out.

Solution:

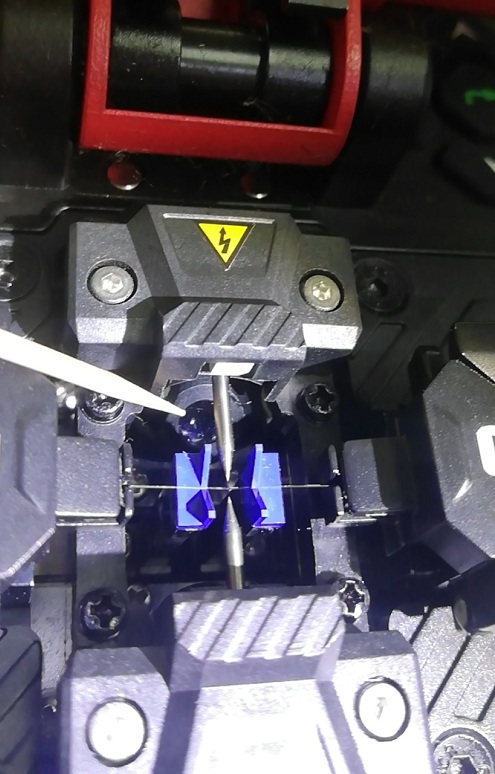

1.     Clean the V-groove. Please use the blade to clean the V-groove carefully, to confirm that there is no dust in the V-groove, the dust will block the fiber into the V-groove.

2.     Clean the microscope lens with a cotton swab dipped in alcohol.


microscope lensthere are twoin this picture, this one is for Y

1.     Adjust the brightness of Y value

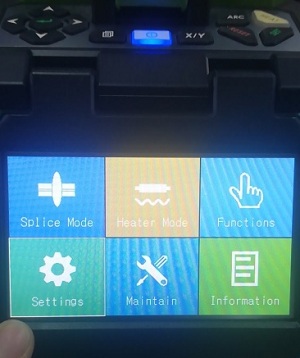

  Image Setting

fiber fusion splicer Auto Gain

























Auto Gain
