New Version Cost Effective 8Ports GPON OLT
Cost Effective 8PON GPON OLT,8GE electrical uplink ports, 8SFP(6*1GE+2*10GE) optical uplink ports,SNMP/Telnet/CLI/WEB management

  Request price     Contact us

INFORMATION

Introduction

BAUDCOM 8PON GPON OLT products are 1U height 19 inch rack mount products. The features of the OLT are small, convenient, flexible, easy to deploy, high performance. It is appropriate to be deployed in compact room environment. The OLTs can be used for “Triple-Play”, VPN, IP Camera, Enterprise LAN and ICT applications.



The 8PON GPON OLT provides 8GE(copper) and 8SFP(6*1GE+2*10GE) slots independent interface for uplink, and 8*GPON OLT ports for downstream. It can support 1024 ONUs under 1:128 splitter ratio.

Technical Specifications

Item

BD-OLT-8000GZ

Chassis

Rack

1U 19 inch standard box

1000M

Uplink Port

QTY

16

Copper

10/100/1000M auto-negotiation

8

SFP

1000MDuplex

(independent)

6

SFP+

SFP+ is 10GE

(independent)

2

GPON Port

QTY

8

Physical Interface

SFP Slot

Connector Type

Class B+/C+

Max splitting ratio

1:128

Management Ports

1*10/100BASE-T out-band port, 1*CONSOLE port

PON Port Specification

Transmission Distance

20KM

GPON port speed

Upstream 1.244G, Downstream 2.488G

Wavelength

TX 1490nm, RX 1310nm

Connector

SC/PC

Fiber Type

9/125μm SMF

TX Power

+1~+5dBm

Rx Sensitivity

-28dBm

Saturation Optical Power

-8dBm

Management Mode

SNMP, Telnet ,CLI,WEB

Management Function

Fan Group Detecting;

Port Status monitoring and configuration management;

Layer2 switch configuration such as VLAN, Trunk, RSTP,IGMP,QOS, etc;

GPON management function: DBA,ONU authorization, ACL, QOS, etc;

Online ONU configuration and management;

User management;

Alarm management.

Layer2 Switch

16K Mac address

Support 4096 VLANs;

Support port VLAN and protocol VLAN;

Support VLAN tag/Un-tag ,VLAN transparent transmission;

Support VLAN translation and QinQ;

Support storm control based on port

Support port isolation

Support port rate limitation

Support 802.1D and 802.1W;

Support static LACP;

QOS based on port, VID, TOS and MAC address;

Access control list;

IEEE802.x flow control;

Port stability statistic and monitoring.

Multicast

IGMP snooping

256 IP Multicast Groups;

DHCP

DHCP server

DHCP relay

DHCP snooping

Layer 3 Route

Arp proxy

Static route

1024 hardware Host Routes;

512 hardware Subnet Routes;

GPON Function

Tcont dba;

Gemport traffic

In compliant with ITUT984.x standard;

Up to 20KM transmission Distance;

Support data encryption, multi-cast, port VLAN, separation, RSTP, etc;

Support ONU auto-discovery/link detection/remote upgrade of software;

Support VLAN division and user separation to avoid broadcast storm;

Support power-off alarm function, easy for link problem detection;

Support broadcasting storm resistance function;

Support port isolation between different ports;

Support ACL and SNMP to configure data packet filter flexibly;

Specialized design for system breakdown prevention to maintain stable system;

Support RSTP,IGMP Proxy.

Dimension(L*W*H)

442mm*200mm*43.6mm

Weight

3.1kg

Power Supply

220VAC

AC:90~264V, 47/63Hz

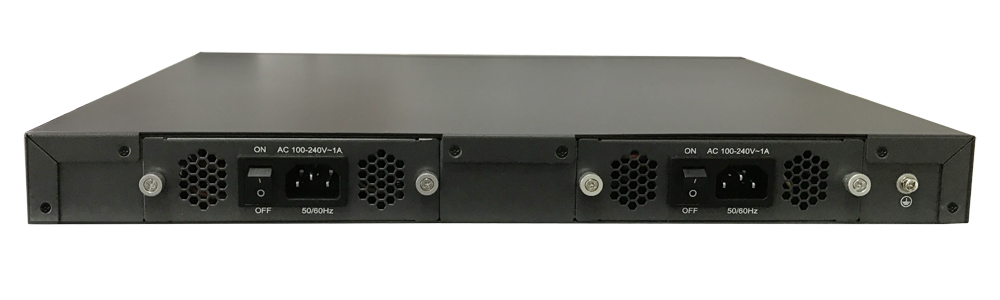

Double Power Module

Hot Backup

Power Consumption

25W

Operating Environment

Working Temperature

-10~+55

Storage Temperature

-40~+85

Relative Humidity

5~90%(non-conditioning)

Application:


RFQ:

1. what is the CPU and memory capacity of the 8PON OLT?
    ---it is 1Ghz,  512MB

2. Can 8PON and 16PON GPON OLT be managed by same NMS management software?
     ----yes
3. Question: I try to access via SSH to the GPON OLT. What is the ENABLE password ?
   Answer: You can manage and mornitor our GPON OLT via EMS management or WEB management or Console/SSH/Telnet. The account/password as below:
    admin/admin    (for old version)

    admin/Xpon@Olt9417#   (for new version)

    If you upgrade the OLT firmware, do not forget load the management by new password


Related Video:

1. How to operate the 8PON OLT WEB management?

2. How to operate the 8PON OLT EMS management?



Ordering information
